Service Work
Electrics and Control 3.1.4 Replacing the Axis Unit with Adapter Cable (X, D Series)
58 Service Manual SIPLACE X Series
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following instruc-
tions:
Settings
► Set the trigger threshold for the nominal current (left setting disk).
► Set the trigger threshold for the overload class (right setting disk).
3.1.4
3.1.4 Replacing the Axis Unit with Adapter Cable (X, D Series)
Replacing the Axis Unit with Adapter Cable (X, D Series)
Parts, equipment and tools
▪ Axis unit A364 replacement kit [03050365S02]
This contains the following parts:
– Axis unit A364 [03050365-02]
– Adapter cable harness for axis unit [03050590-01]
– 2 DIN912-M3 x 6-A2-70 screws [00201463-xx]
CAUTION
Installation instructions
► Please observe the instructions for correct assembly in the technical information "Retrofit
Guide Axis Support Motor Circuit Breaker PKE32/XTU-32 Assembly 3p. (Main Switch)"
[DE: TI2013-07D10] [EN: TI2013-07E10].
► Remove the shaft from the old switch and fit it on the new switch.
► Set the nominal current and overcurrent (see below)
Motor protection tripping unit
PKE-ZTU-32
Left setting disk
for nominal current
Right setting disk
for overcurrent class
SX1/SX2
3x380V - 3x 415V 8 A 5
3x200V - 3x 230V 13.5 A 5
X series S, SX4/DX4
3x380V to 3x415V
One vacuum pump or none
8 A 5
3x200V - 3x230V
One vacuum pump or none
13.5 A 5
3x380V to 3x415V
Two vacuum pumps
13.5 A 5
3x200V to 3x230V
Two vacuum pumps
17.2 A 5
NOTICE
Adapter cable harness
The adapter cable harness is only needed when an old axis unit is replaced with a new one.
Service Work
3.1.4 Replacing the Axis Unit with Adapter Cable (X, D Series) Electrics and Control
Service Manual SIPLACE X Series 59
Removing the old axis unit
CAUTION
Labeling the connectors
When you disconnect connectors, always label their positions to ensure correct reconnection
later!
CAUTION
Make sure you do not damage any cables.

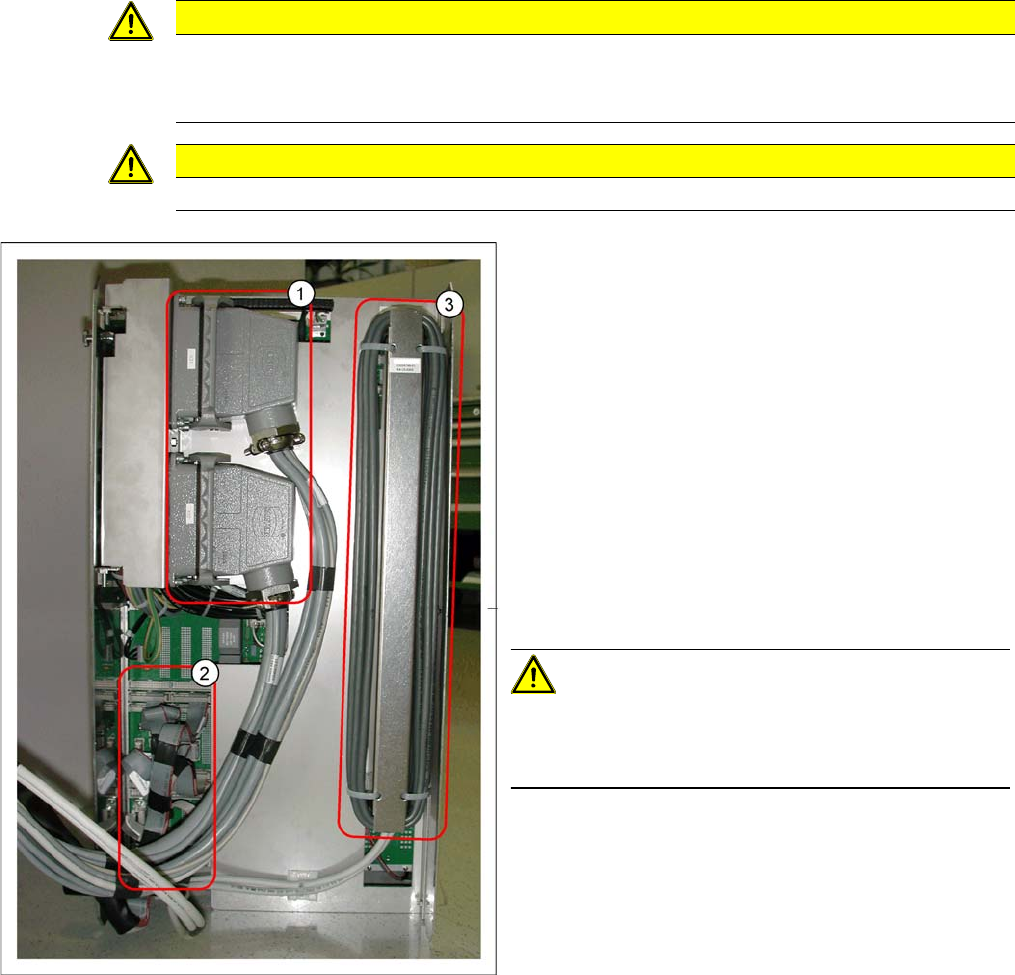

1. Harting connector
2. Flat ribbon cable
3. Ballast resistance
To remove the old axis unit, proceed as follows:
► Switch off the machine.
► Remove the protective cover above the axis unit, to
give you access to the axis unit.
► Pull the axis unit out of the machine.
► Lift the axis unit out of its guidance and place it down
on the ground.
► Unplug the Harting connector (1).
► Unplug all flat ribbon cables (2).
CAUTION!
Labeling the connectors
Label all flat ribbon cables to ensure correct reconnection
to the new axis unit, later on!
► Lift the ballast resistance (3) up and out and then un-
plug its connectors from the axis unit.
Service Work
Electrics and Control 3.1.4 Replacing the Axis Unit with Adapter Cable (X, D Series)
60 Service Manual SIPLACE X Series
Installation

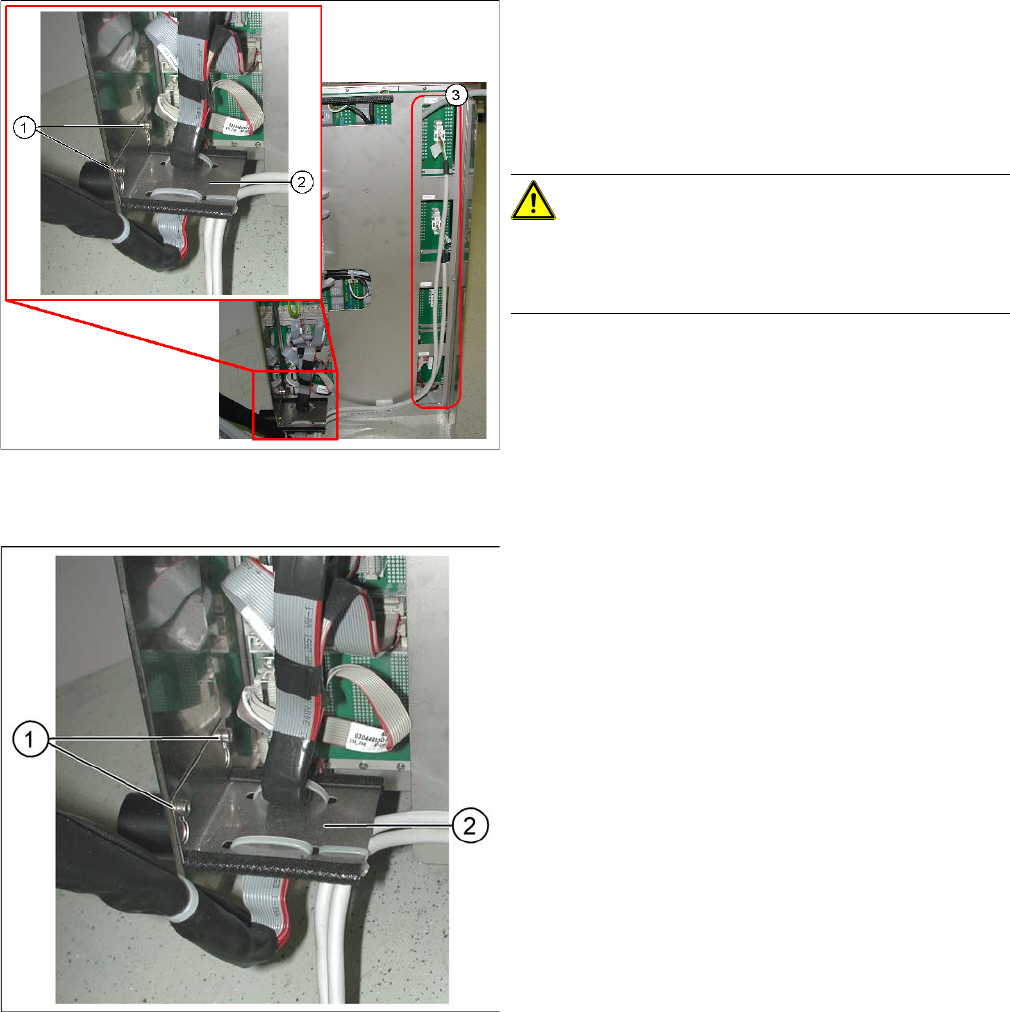

► Dismantle the flat ribbon cable clamps (2) by loosen-
ing the two screws (1) concerned.
► Unplug the two or four connectors (3). The number
depends on the machine type. If the cables are fixed
with cable clamps to the axis unit, disconnect these
as well.
CAUTION!
Labeling the connectors
Label all connectors to ensure correct reconnection to the
new axis unit connections, later on!
► Connect the flat ribbon connectors leading from the
machine to the relevant connection points on the new
axis unit. The connectors should be connected to the
same points as they were in the old axis unit.
► Fit the flat ribbon cable clamps (2) with the two
screws provided (1) to the new axis unit.
