3-50 3 Periodic maintenance items 6.2 Checking the nozzle station sensor condition (option) When the machine is equipped with a nozzle station (option), c heck the nozzle station sensor condition. c CAUTION If a nozzle s…

3-49

Periodic maintenance items

6. One-year inspection

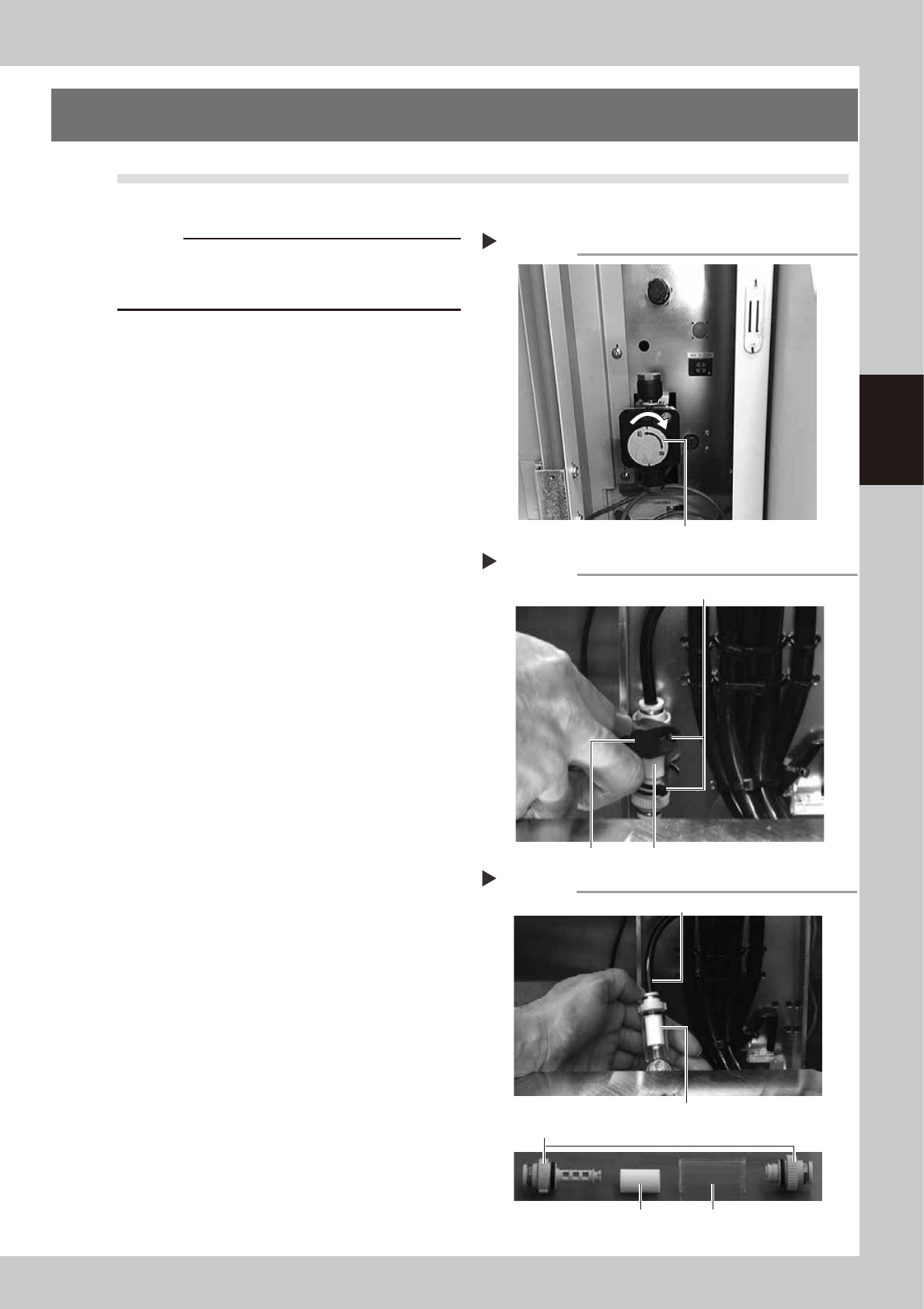

6.1 Cleaning and replacing the blow station filter

To clean or replace the blow station filter, follow the steps below.

CAUTION

If trouble occurs with the blow station, contact YAMAHA

sales representative. Disassembly and cleaning of the

blow station by the user will void the warranty.

Turn the machine’s sir supply OFF.

Turn the "air supply/exhaust" switch inside

the panel at lower left of the machine

clockwise to turn the air supply OFF.

53364-L1-10

Cut the cable ties on the filter.

1. Press the emergency stop button and

open the machine’s safety cover. If the

machine is equipped with a carriage,

remove the carriage.

2. Using a wire cutter or similar tool, cut the

cable ties that hold the filter unit inside

the blow station stand.

53365-L1-00

Disconnect the air hose from one

end of the filter unit and remove

the filter.

1. Disconnect the air hose from one end of

the in-line filter unit.

2. Remove the filter joint caps on both sides

of the filter by rotating them 90 degrees.

3. Pull the transparent case to remove it

and remove the filter.

53366-L1-00

Clean the filter.

Use an air blow tool (option) to blow air

through the filter from the inside and from

the outside. If the filter is excessively dirty

and cannot be cleaned, replace it with a

new filter.

Return the filter

Place the filter with new cable ties.

Cutting the cable tie

Step 2

Cable tie

Wire cutter In-line filter unit

Taking out the filter

Step 3

Air hose

Filter

Transparent filter case

In-line filter unit

Filter joint caps

Shutting off the air supply

Step 1

Air supply/shutoff valve

3-50

Periodic maintenance items

6.2 Checking the nozzle station sensor condition (option)

When the machine is equipped with a nozzle station (option), check the nozzle station sensor condition.

CAUTION

If a nozzle station sensor fails to detect a nozzle, the nozzle change cannot be performed correctly and the machine

operation may be interrupted due to a nozzle detection error.

Open the nozzle station shutter.

1. Open the [Unit]-[Head] screen.

2. Press the [Nozzle Stn Shutter] button to

open the nozzle station shutter.

3. Press the emergency stop button and

then open the machine safety cover.

54310-L1-10

Check the detection status of the

nozzle station sensors.

Check to see if the nozzle station sensors

detect the presence or absence of nozzles.

1. Open the [Unit]-[I/O] screen.

2. From the "Input" drop-down list, select

"NZL STATION".

3. While extracting a nozzle from the nozzle

station and returning it to the same

position, check whether the

corresponding sensor detects the nozzle

correctly.

The detection status on the screen should

read "1" when the nozzle is extracted

from the nozzle station, and should read

"0" when the nozzle is in the nozzle

station.

54311-L1-10

TIP

The nozzle station position No. where a nozzle was

extracted or inserted is displayed on the lower part of

the "Input" status screen.

Clean the nozzle station.

If the nozzle detection status is different from

the actual nozzle presence status, remove

the nozzle and visually check the nozzle

setting position. If any dust or chip is found,

remove it and clean the inside of the nozzle

with the vacuum assembly.

CAUTION

If the nozzle detection status inside the nozzle station

does not become stable for a reason other than clear

reason, such as dust, etc., or if the nozzle cannot be

detected, contact YAMAHA sales representative.

Disassembly and cleaning of the nozzle station sensors

by the user will void the warranty.

Close the nozzle station shutter.

On the [Unit]-[Head] screen, press the

[Nozzle Stn Shutter] button to close the

nozzle station shutter.

Opening the shutter

Step 1

[Nozzle Stn Shutter] button

Checking the nozzle detection status

Step 2

Select "NZL STATION".

Nozzle station position No. is

displayed here.

Shows the presence or absence

of nozzles detected by sensors.
