5-2 5 Lubrication points and schedule 2. Lubrication points and schedule 2.1 X-axis X-axis guide X-axis lubrication points X-axis ball screw Grease nipple Grease nipple (lower side) Grease nipple (upper side) 53501-L1-00…
5-1
5
Lubrication points and schedule

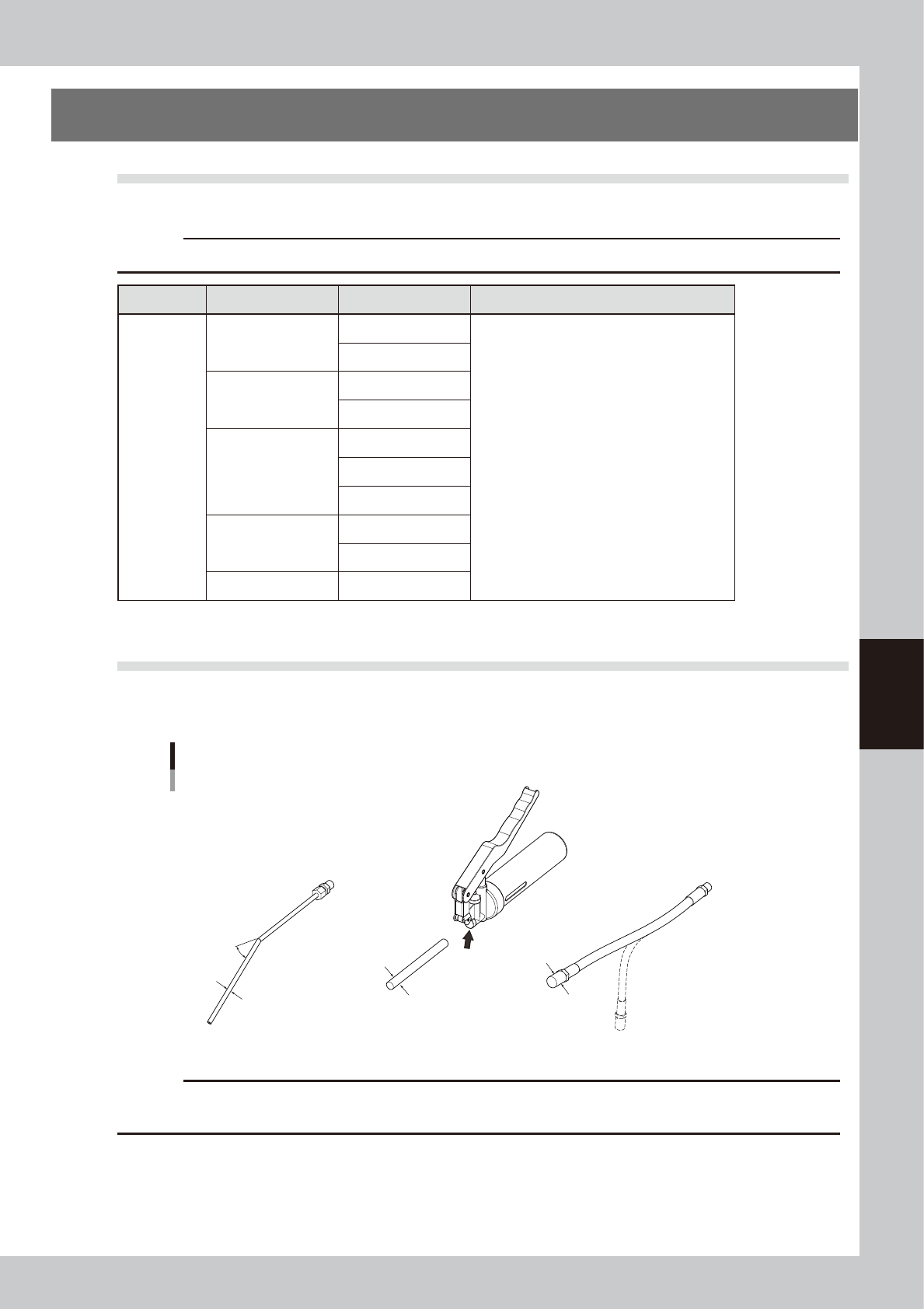

1. Lubrication preparations
1.1 Compatible grease
For greasing procedures, always use the YAMAHA prescribed grease shown below.
c
CAUTION
Using unauthorized grease could damage the machine.
Lubrication Point Lubrication section Grease Name
Main unit
X-axis
Ball screw
NSL grease
Part No.: K48-M3856-00X
Guide
Y-axis
Ball screw
Guide
W-axis
Ball screw
Guide
Hexagon spline
PU-axis
Ball screw
Ball guide
Head Z-axis Spline shaft
1.2 Grease gun
The grease gun has 3 interchangeable nozzle types to accommodate the various greasing point configurations.
Always use the prescribed nozzle for the greasing point in question.
Grease gun
Grease gun
30° bent type nozzle
Standard nozzle
The various
nozzle tips are
inserted here
Flexible chuck type nozzle
30°
OD ø14 tip
OD ø10 tip
OD ø0.5 tip
53500-L1-00
c
CAUTION
Prepare the tip nozzle for grease to be used. If two or more kinds of grease with different characteristics are mixed in
the nozzle and it is applied, this may cause the machine performance to lower.
5-2
5
Lubrication points and schedule

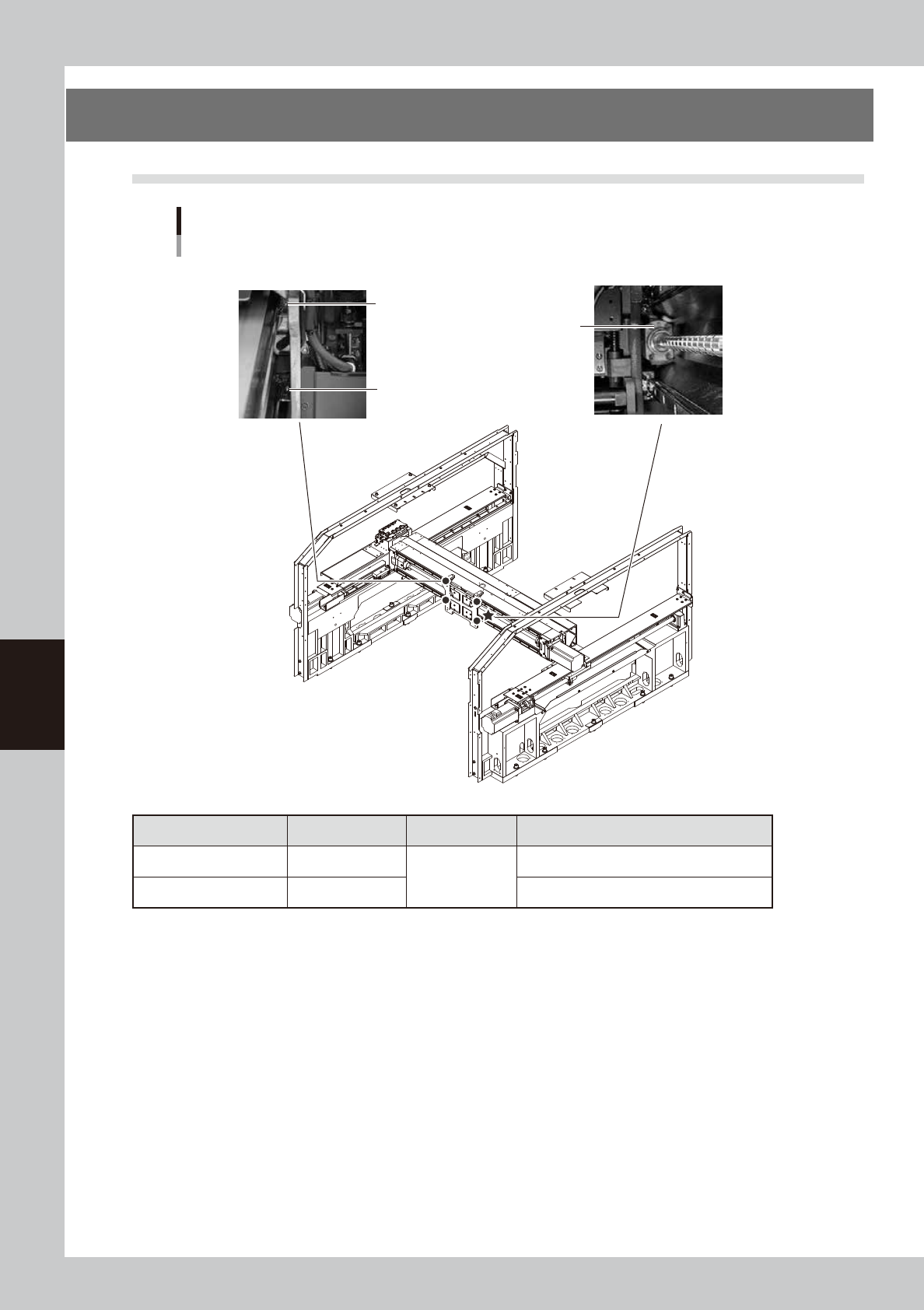

2. Lubrication points and schedule
2.1 X-axis
X-axis guide
X-axis lubrication points
X-axis ball screw
Grease nipple
Grease nipple (lower side)
Grease nipple (upper side)
53501-L1-00
Lubrication section Lubrication point Interval Procedure
Guide 4
Every 2 months
Grease gun : Bent type nozzle (ø 5mm)
Ball screw 1 Grease gun : Bent type nozzle (ø 5mm)
5-3
4
Input Title

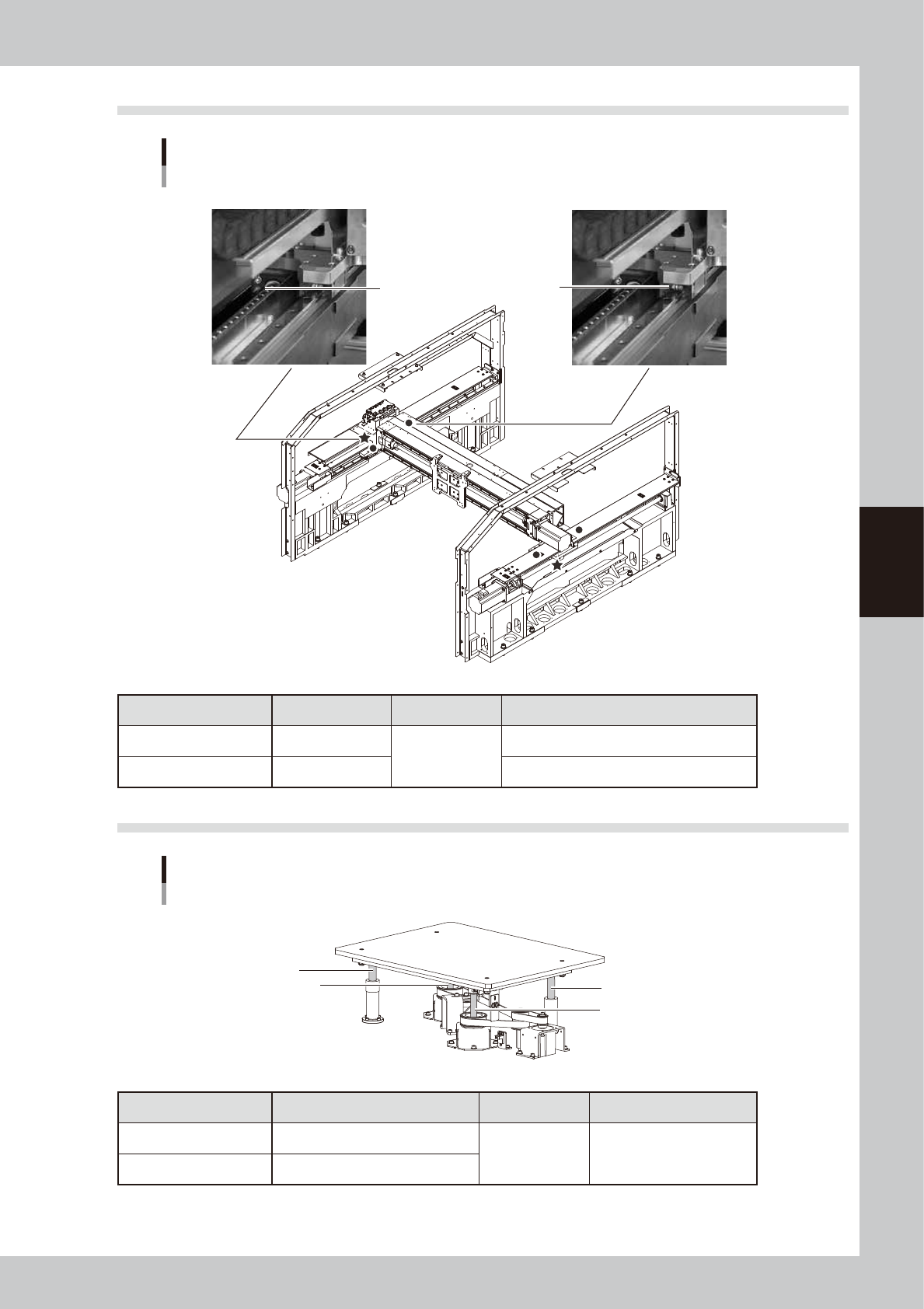

2.2 Y-axis
Y-axis lubrication points
Grease nipple
Grease nipples
(front and rear)
X-axis guideX-axis ball screw
53502-L1-00
Lubrication section Lubrication point Interval Procedure
Guide 4
Every 2 months
Grease gun : Standard nozzle (ø 10mm)
Ball screw 2 Grease gun : Flexible type nozzle (ø 14mm)
2.3 PU-axis
PU-axis lubrication points
Ball screw
Ball screw
Ball guide
Ball guide
53503-L1-10
Lubrication section Lubrication point Interval Procedure
Ball guide 2 (4 for twin type)
Every 2 months Apply grease by hand.
Ball screw 2 (4 for twin type)
