2.4 W-axis (Conveyor)

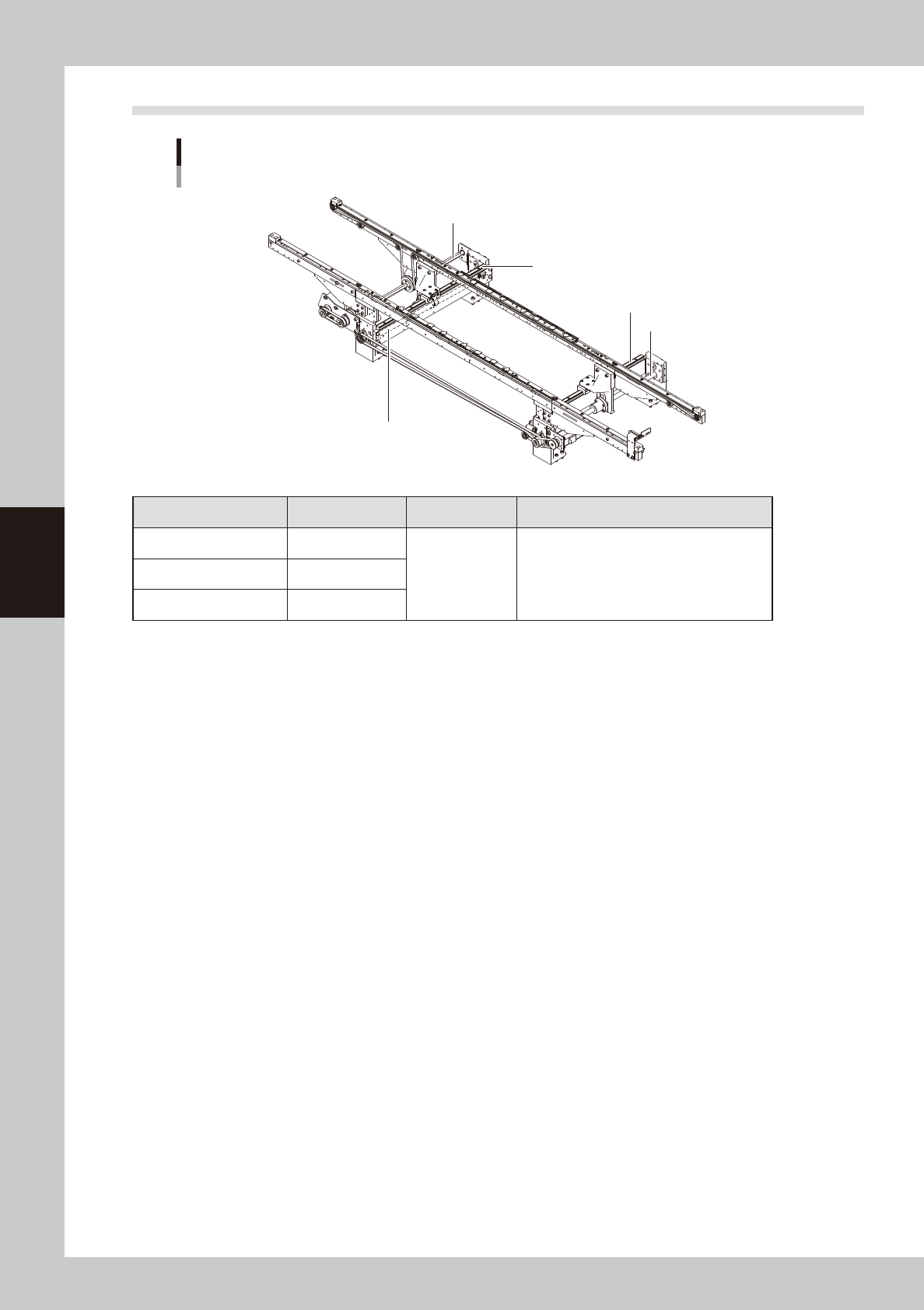

W-axis lubrication points
W-axis ball screw
W-axis ball screw
Hexagonal spline
W-axis guide
W-axis guide
53504-L1-00
Lubrication section Lubrication point Interval Procedure
Guide 2
Every 6 months Apply grease by hand.Ball screw 2
Hexagonal spline 1
5-5
4
Input Title
2.5 Z-axis (Spline shaft)
n
NOTE
Basically, the lubricating the spline shaft (Z-axis) is not required. However, the grease on the spline shaft surface is
removed by touching with hand or by sprinkling solvent. As a result, the spline shaft gets easily rusted. Apply the
specified grease (NSL) slightly for anti-rusting as needed.
Z-axis lubrication points
Z-axis spline shaft
(upper side)
Z-axis spline shaft (lower side)
Z-axis spline shaft (middle-)
53505-L1-10
Lubrication section Lubrication point Interval Procedure
Z-axis spline shaft 8 As needed Apply a thin coat of grease by hand.
