1-7 1 Maintenance Product Name Parts List Designation Parts No Note Other nozzle related parts BODY , NOZZLE 31 1 KHY -M771 1-03X For 31 1A Nozzle tip only BODY , NOZZLE 312 KHY -M7721-02X For 312A Nozzle tip only BODY ,…
1-6
1
Maintenance
2.1.2 Nozzles
n
Consumable parts (optional parts)
· SF head unit specification and FNC head unit common specification nozzle
Name Part name Part No. Note
Standard 30X
Group nozzles
NOZZLE 301A ASSY. KHN-M7710-A4X 0603 to 1005 size components
NOZZLE 302A ASSY. KHN-M7720-A3X 1608 to 3216 size components
Narrow-pitch
31X Group
nozzles
NOZZLE 311A ASSY. KHY-M7710-A4X 0603 dedicated
NOZZLE 312A ASSY. KHY-M7720-A3X 1005 to 1608 size components
NOZZLE 313A ASSY. KHY-M7730-A2X 2012 to 3225 size components
Standard &
narrow-pitch
Common
nozzles
NOZZLE 303A/314A AS. KHY-M7740-A0X
4532 to 7343 size components, SOP
NOZZLE 304A/315A AS. KHY-M7750-A0X QFP, PLCC, etc.
TIP
The standard type cannot be used in conjunction with the narrow adjacent type.
· SF head unit specification type nozzle
Name Part name Part No. Note
Standard &
narrow-pitch
Common
nozzles
NOZZLE 305A/316A AS. KHY-M7760-A0X
32 to 45 size components
NOZZLE 306A/317A AS. KHY-M7770-A0X Cylindrical components
Gripper nozzle
(option)
Type30LH, etc.
Select according to the part’s
shape
c
CAUTION
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before
ordering parts.
n
NOTE
The gripper nozzle is used for suction attachment of a special shape part. Select/special order according to the part’s
shape.
1-7
1
Maintenance
Product Name Parts List Designation Parts No Note
Other nozzle
related parts
BODY, NOZZLE 311 KHY-M7711-03X For 311A Nozzle tip only
BODY, NOZZLE 312 KHY-M7721-02X For 312A Nozzle tip only
BODY, NOZZLE 313 KHY-M7731-02X For 313A Nozzle tip only
BODY, NOZZLE 301 KHN-M7711-05X For 301A Nozzle tip only
BODY, NOZZLE 302 KHN-M7721-04X For 302A Nozzle tip only
BODY, NOZZLE 303/314 KHY-M7741-00X For 303A/314A Nozzle tip only
BODY, NOZZLE 304/315 KHY-M7751-00X For 304A/315A
BODY, NOZZLE 305/316 KHY-M7761-00X For 305A/316A
SPRING KHN-M7713-00X For 303A/314A, 306A/317A, 313A
SPRING KHN-M7713-10X For 301A, 302A, 311A, 312A
PIN KHN-M7714-00X
For 301A, 302A, 303A/314A,
306A/317A, 312A, 313A
CLIP KHN-M7715-00X
For 301A, 302A, 303A/314A,
306A/317A, 311A, 312A, 313A
O-RING 90990-17J081 For 304A/315A
Ozone
countermeasure part
O-RING 90990-17J083 For 305A/316A
Ozone
countermeasure part
c
CAUTION
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before
ordering parts.
1-8
1
Maintenance

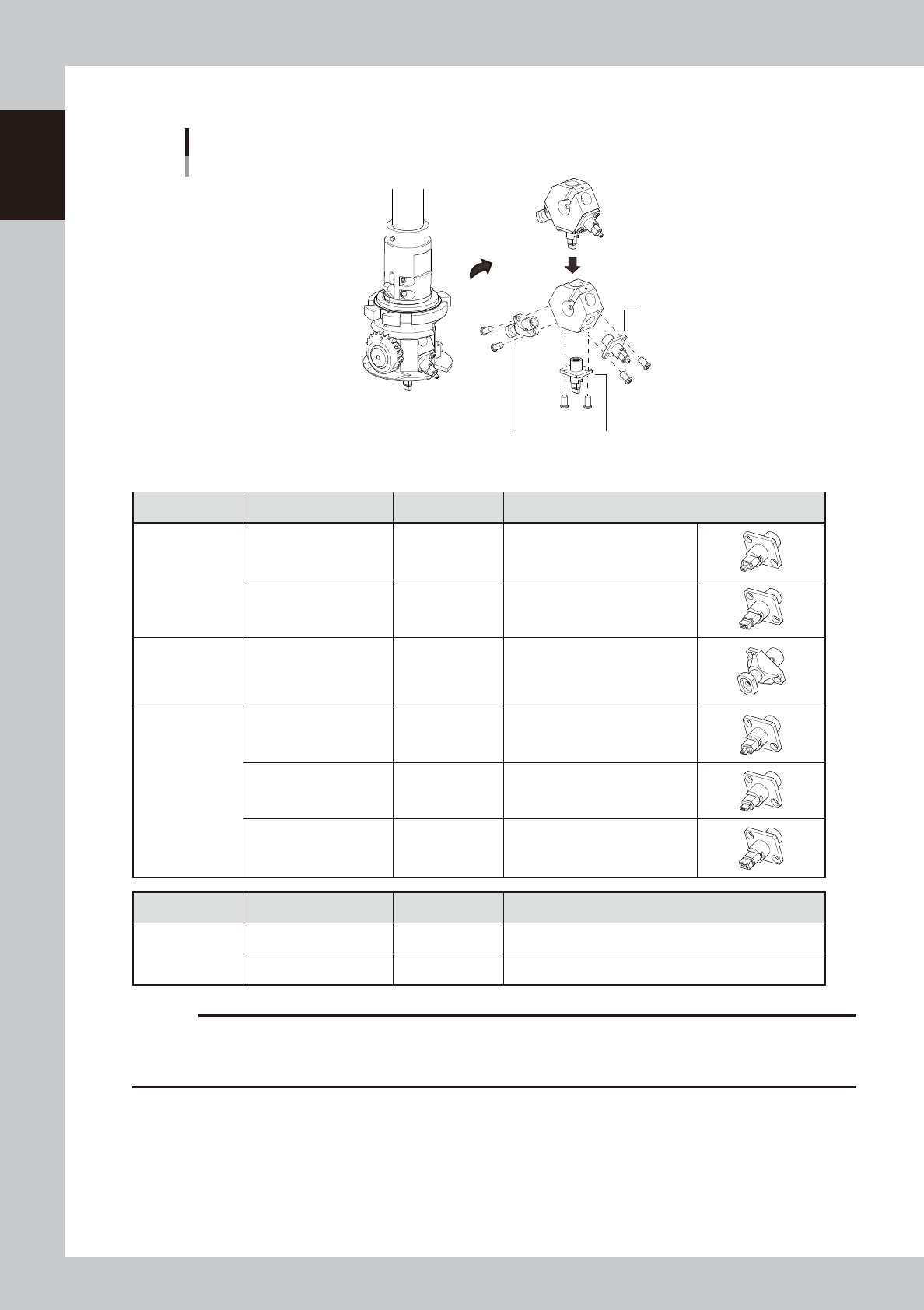

· FNS head unit specification type nozzle (Index nozzle)
FNC head
Index nozzle example
Type 301F nozzle
Type 302F nozzle
Type 303F nozzle
53109-L1-00
Name Part name Part No. Note
Standard type
nozzles
NOZZLE 71FA ASSY. KV8-M71N1-A1X
0603 to 1005 size components
301F nozzle on software
NOZZLE 72F ASSY. KV8-M71N2-A1X
1608 to 3216 size components
302F nozzle on software
Standard &
narrow-pitch
Common
nozzles
NOZZLE 73F/93F ASSY. KV8-M71N3-A0X
4532 to 7343 size components, SOP
303F nozzle or 314F nozzle on
software
Narrow-pitch
type nozzles
NOZZLE 311F ASSY. KJJ-M71N1-A0X
0603 dedicated
311F nozzle on software
NOZZLE 312F ASSY. KJJ-M71N2-A0X
1005 to 1608 size components
312F nozzle on software
NOZZLE 92F ASSY. KV8-M772F-A0X
2012 to 3225 size components
313F nozzle on software
Product Name Parts List Designation Parts No Note
Other nozzle
related parts
SPRING KV8-M71U7-00X For 71F(301F), 72F(302F), 73F(303F), 311F, 312F, 313F
SCREW, PAN HEAD 90990-08J012 Index nozzle fixing screw
c
CAUTION
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before
ordering parts.
