· FNS head unit specification type nozzle (Index nozzle)
FNC head
Index nozzle example
Type 301F nozzle
Type 302F nozzle
Type 303F nozzle
53109-L1-00
Name Part name Part No. Note
Standard type
nozzles
NOZZLE 71FA ASSY. KV8-M71N1-A1X
0603 to 1005 size components
301F nozzle on software
NOZZLE 72F ASSY. KV8-M71N2-A1X
1608 to 3216 size components
302F nozzle on software
Standard &
narrow-pitch
Common
nozzles
NOZZLE 73F/93F ASSY. KV8-M71N3-A0X
4532 to 7343 size components, SOP
303F nozzle or 314F nozzle on
software
Narrow-pitch
type nozzles
NOZZLE 311F ASSY. KJJ-M71N1-A0X
0603 dedicated
311F nozzle on software
NOZZLE 312F ASSY. KJJ-M71N2-A0X
1005 to 1608 size components
312F nozzle on software
NOZZLE 92F ASSY. KV8-M772F-A0X
2012 to 3225 size components
313F nozzle on software
Product Name Parts List Designation Parts No Note
Other nozzle
related parts
SPRING KV8-M71U7-00X For 71F(301F), 72F(302F), 73F(303F), 311F, 312F, 313F
SCREW, PAN HEAD 90990-08J012 Index nozzle fixing screw
c
CAUTION
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before
ordering parts.
1-9
1
Maintenance
2.1.3 Replaceable parts (for repairs)
The term "Replaceable parts" in this manual indicates parts that might cause a machine stoppage as these parts
lose their functions but do not require machine adjustment after replacement work. Methods for replacing the
following parts are described in this manual.
Replaceable parts
Replace if broken
Solenoid valve
Plug for BIT replacement
Valve for conveyor unit
Cleaning blow valve
Plug for filter replacement

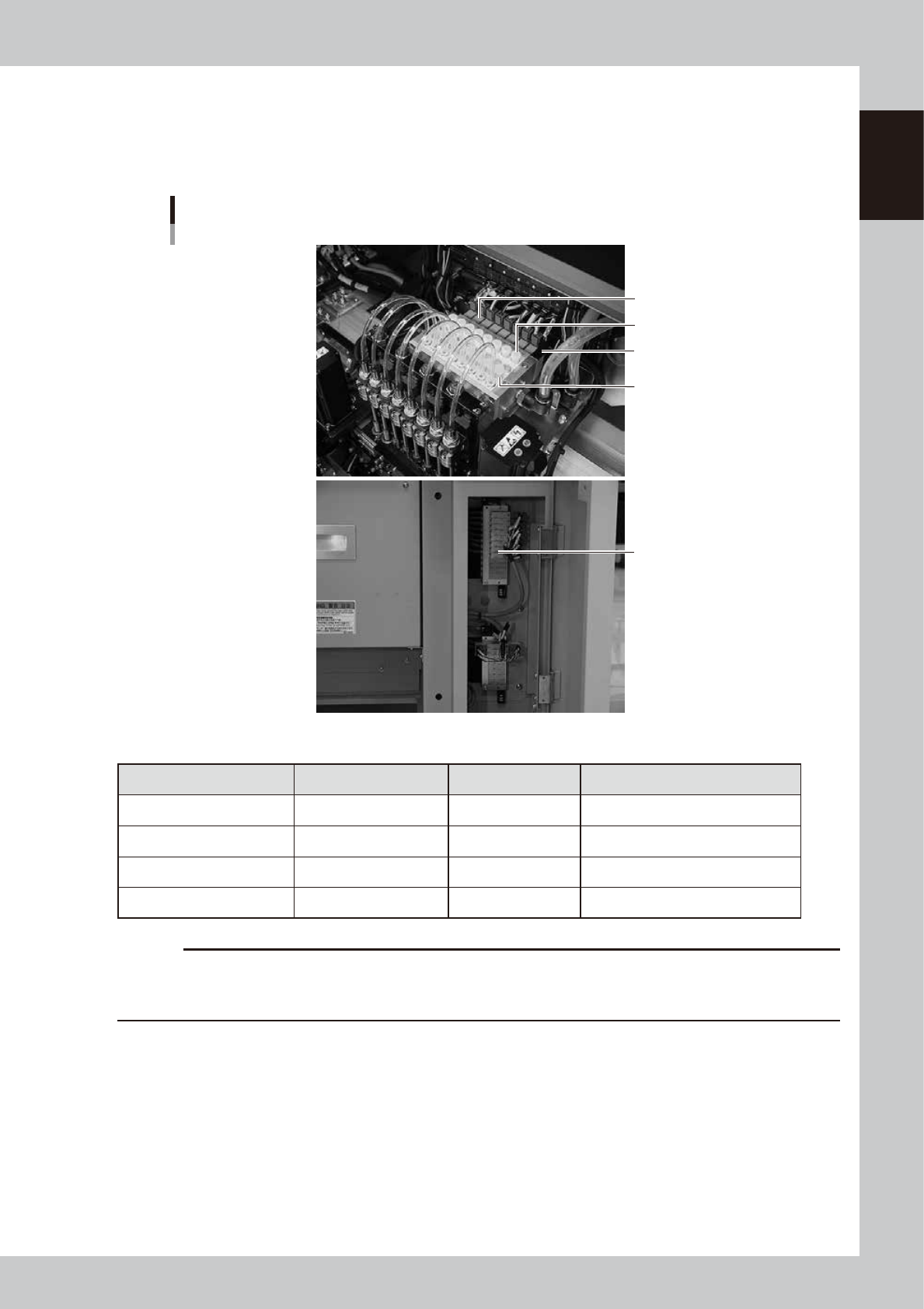

53103-L1-10
n
Replaceable parts list
Product Name Parts List Designation Parts No. Note
Solenoid valve VALVE KJJ-M717B-00X For ejector and blow operation
Bit BIT KHY-M7154-01X BIT for ejector replacement
Cleaning blow valve VALVE (SPARE PARTS) KGB-M37P1-00X For cleaning blow operation
Valve for conveyor unit VALVE KHW-M8582-40X For main stopper etc.
c
CAUTION
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before
ordering parts.
1-10
1
Maintenance
2.2 Maintenance tools
2.2.1 Cleaning tools
n

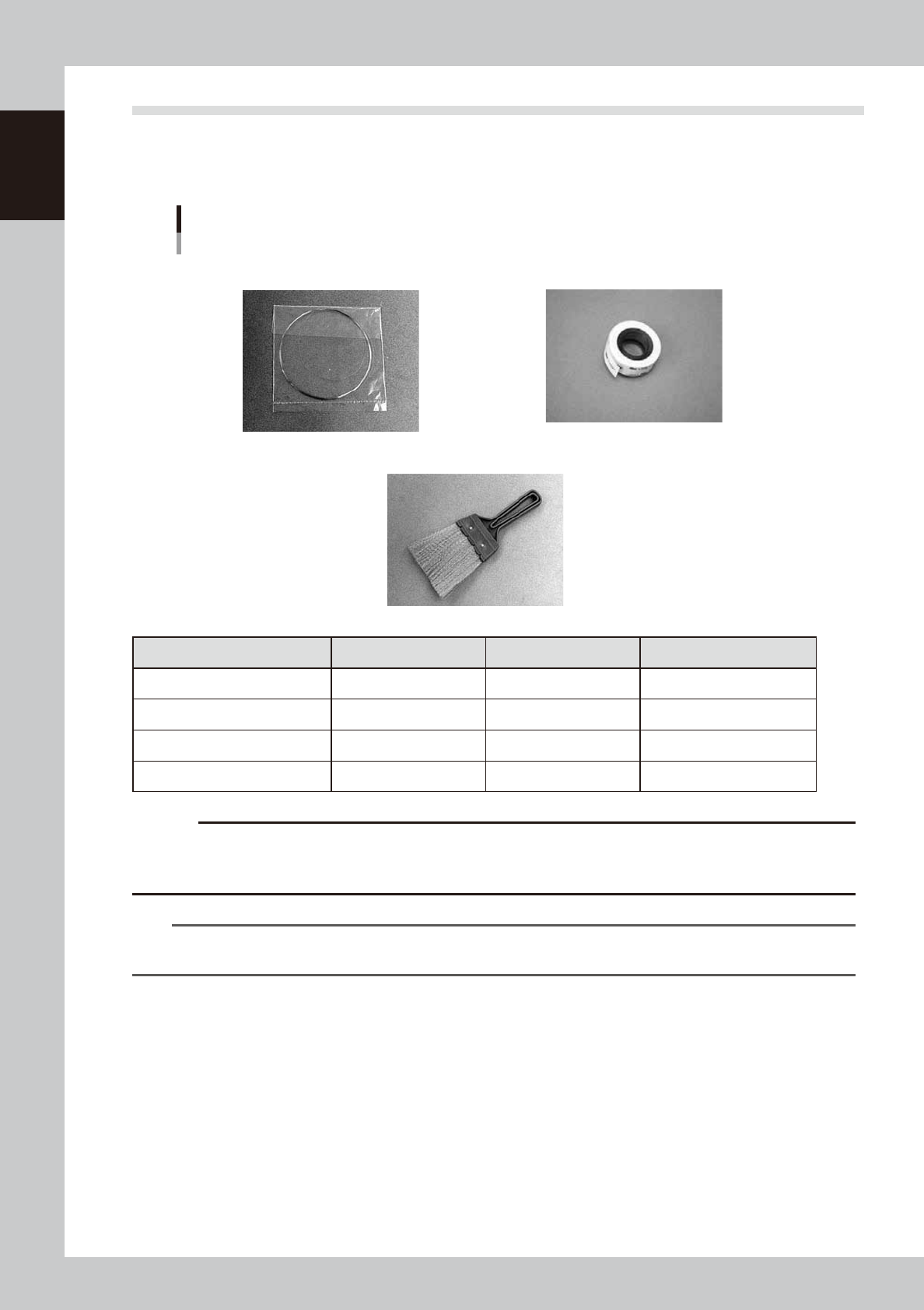

Cleaning tools (Parts supplied with machine)
Cleaning tools
Parts supplied with machine
Nozzle cleaning wire
Feeder plate cleaning brush
Nozzle tip cleaning tape
53104-L1-10
Product Name Parts List Designation Parts No. Note
Nozzle cleaning wire NEEDLE ASSY KV8-M8883-A0X
Nozzle tip cleaning tape TAPE, CLEANER KGT-M8895-00X Double-sided tape
Feeder plate cleaning brush BRUSH, FEEDER KV7-M8820-20X
Hook for cleaning brush HOOK KGA-M13B9-00X
c
CAUTION
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before
ordering parts.
n
NOTE
Nozzle tip cleaning tape (double-sided tape) is used for nozzle tip cleaning. Cleaning the nozzles with an ultrasonic
cleaner (option) or IPA is effective before cleaning with the tape.
