2-7 2 Daily maintenance item s 3 . Cleaning Multi-view camera protective glass (option) Adhered dust, etc., on the multi-camera lighting's protective glass can cause component recognition errors. T o prevent this, i…
2-6
2
Daily maintenance items

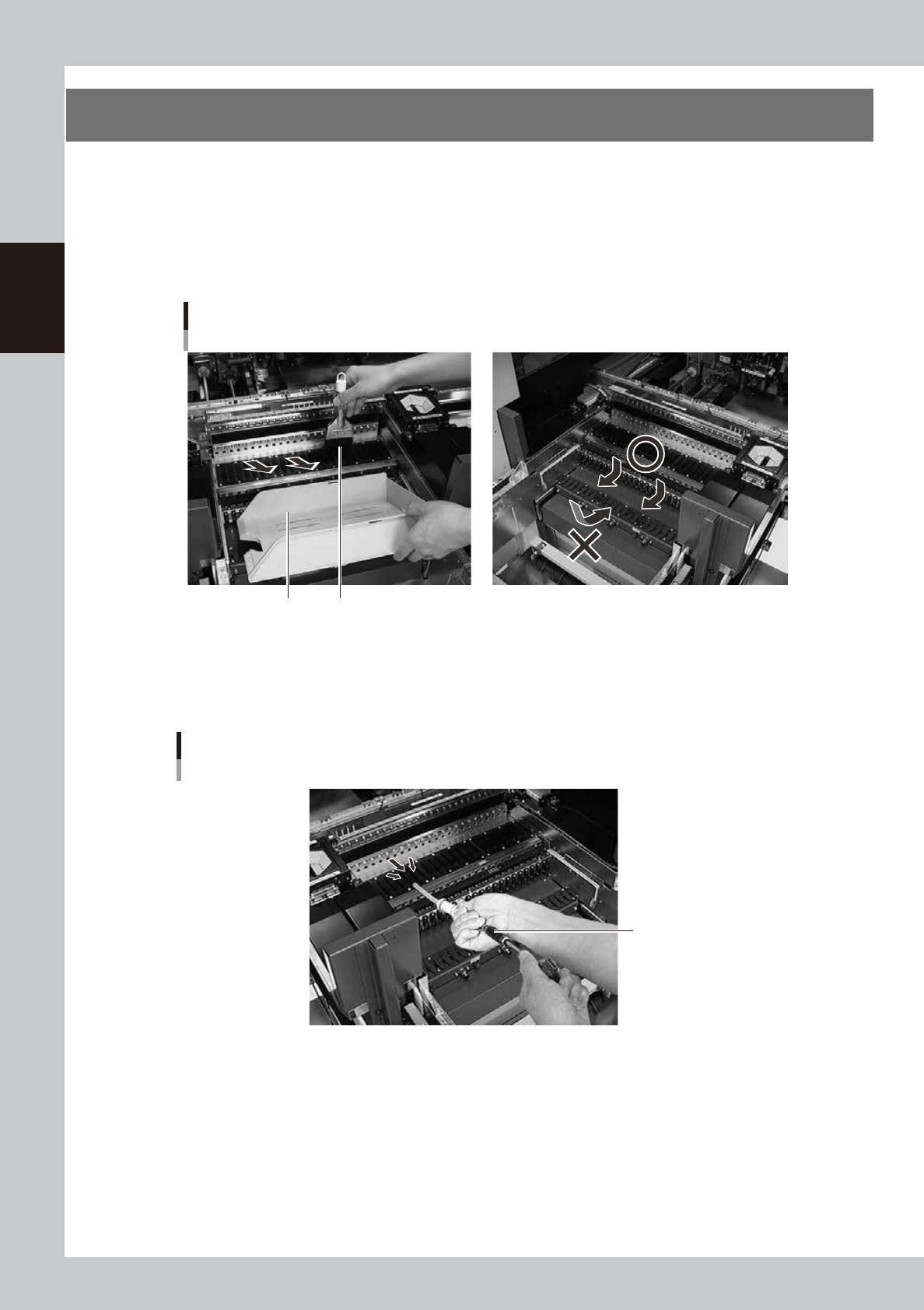

2. Cleaning the feeder plate
Chips or foreign objects falling on the feeder plate might bite into the surface during feeder setting and
cause the pickup position to deviate. Periodic inspection and cleaning are recommended to prevent this
problem.
n
Cleaning with the accessory brush
Clean the feeder plate with the accessory brush as shown below.
Cleaning brush
Cleaning the feeder plate (bank)
Dustpan
53202-L1-00
n
Cleaning with the vacuum cleaner or vacuum ASSY (option)
Use a vacuum cleaner or optional vacuum ASSY (KHY-M88V0-A0X) connecting to the air connector on the front of the
machine to suck in fine dust particles to clean the feeder plate.
Vacuum ASSY
Cleaning the feeder plate
Use the vacuum ASSY
53205-L1-00
2-7
2
Daily maintenance items

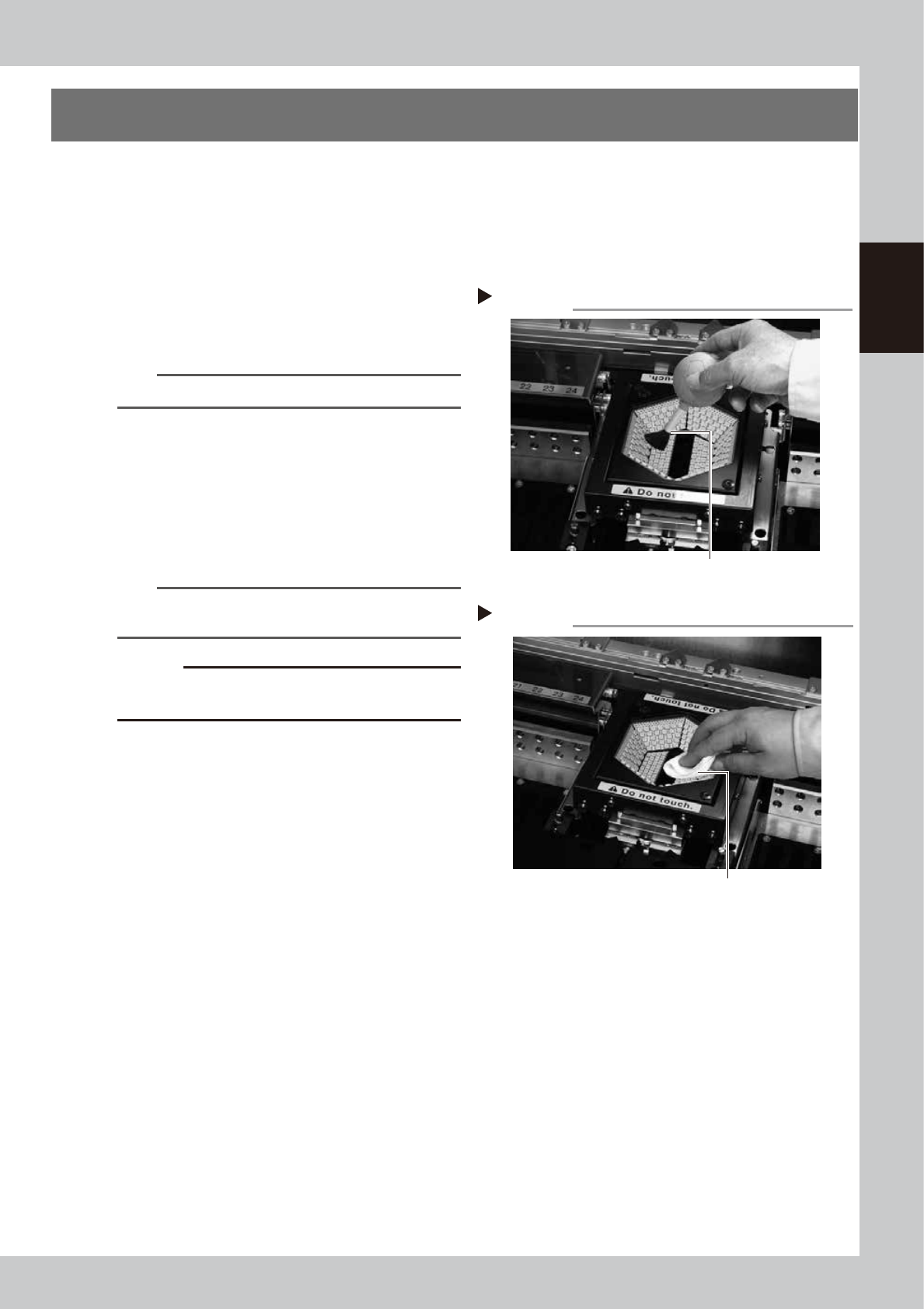

3. Cleaning Multi-view camera protective glass (option)
Adhered dust, etc., on the multi-camera lighting's protective glass can cause component recognition errors.
To prevent this, it is recommended to inspect and clean the cover in a periodic manner.
e
1
Blow off dust on the lighting's
protective glass.
1. Press the emergency stop button to open
the machine safety cover.
2. Remove the dust on the lighting's
protective glass with a blower brush.
53203-L1-10
TIP
A lens blower brush is an optional purchase part.
2
Wipe the protective glass with a
cloth or cleaning paper.
Apply a few drops of lens cleaner to a
lint-free cleaning cloth or cleaning paper
that does not raise dust, and wipe the
protective glass.
53204-L1-00
n
NOTE
A lens cleaner and cleaning paper are optional
purchase parts.
c
CAUTION
Do not use other than the lens cleaner optionally
supplied, such as IPA or acetone.
Wiping the protective glass
Step 2
Lent-free cleaning cloth
Blowing off dust with blower brush
Step 1
Lens blower brush
