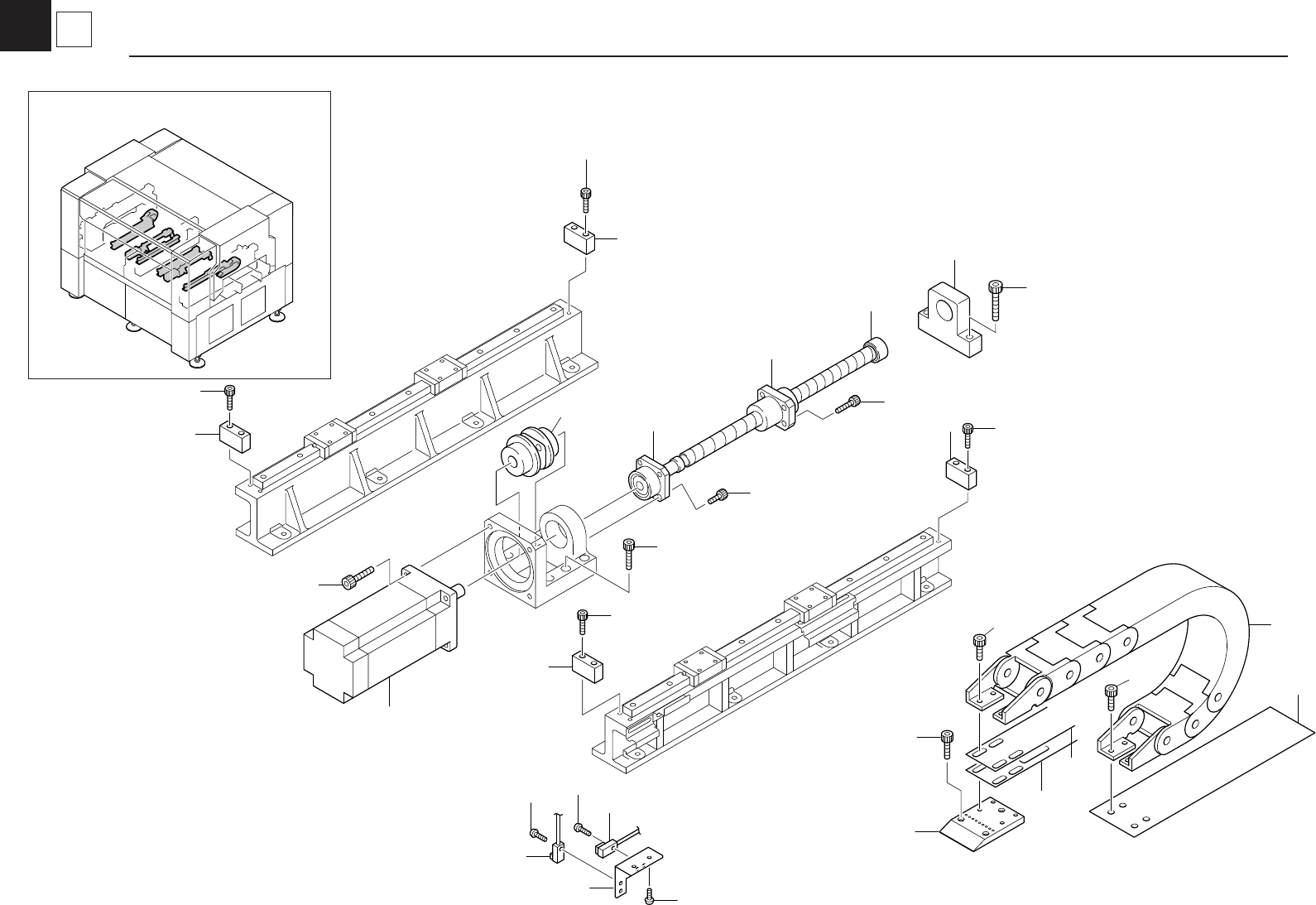

No. Part No. Part Name Q'ty Remarks Rank Level No. Part No. Part Name Q'ty Remarks Rank Level 1 KV1-M2803-01X SCREW BALL, YT AXIS 1 A r 39 2 KG2-M2604-00X SUPPORT UNIT 1 / Í 40 3 KV1-M2606-00X DAMPER 4 / 41 4…
2
21
1
15
19
16
16
8
3
18
4
3
5,14
9
23
20
3
18
18
17
13
18
10
7
18
12
11
6
19
3
22
2
18
KGT-081105
3
3
YT-axis
Moving-axis
No. Part No. Part Name Q'ty Remarks Rank Level No. Part No. Part Name Q'ty Remarks Rank Level
1 KV1-M2803-01X SCREW BALL, YT AXIS 1 A
r
39
2 KG2-M2604-00X SUPPORT UNIT 1 /
Í
40
3 KV1-M2606-00X DAMPER 4 /
41
4 KM5-M2611-00X COUPLING, Y-AXIS :LCD 1 /
Í
42
5 KGT-M2818-L1X BRKT. L, SENSOR 1 L side /
Í
43
6 KV1-M2821-01X DUCT, CABLE 2 B
Í
44
7
KGT-M2822-00X
BRKT., DUCT 2
/
Í
45
8 KGA-M260A-00X
SENSOR ORG(L=300)
1
B
Í
46
9
KGA-M260B-00X SENSOR OT(L=300)
1
B
Í
47
10 KV1-M2824-00X TAPE, YT AXIS 1 /
Í
48
11 KV1-M2825-00X TAPE 1, YT AXIS 1 /
Í
49
12 KV1-M2826-00X TAPE 2, YT AXIS 1 /
Í
50
13 90K63-611404 AC SERVO MOTOR 1 B
Í
51
14 KGT-M2818-R1X BRKT. R, SENSOR 1 R side /
Í
52
15 KGV-M280A-00X HOLDER, NUT, YT AXIS 1 /
Í
53
16 98902-03008 SCREW BINDING HEAD 2 54
17 91317-04006 BOLT HEX. SOCKET HEAD 2 55
18 91317-04014
BOLT HEX. SOCKET HEAD
33
56
19
91317-06010 BOLT HEX. SOCKET HEAD
16
57
20
91317-06018
BOLT HEX. SOCKET HEAD 4
58
21 91317-06030 BOLT HEX. SOCKET HEAD 2 59
22 91317-06040 BOLT HEX. SOCKET HEAD 4 60
23 91317-05016 BOLT HEX. SOCKET HEAD 4 61
24 62
25 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
KGT-081105
3
3
YT-axis
Moving-axis
Feeder Holder 20
FES 20 Clamp Unit
FES 20 Carriage
1
1
2
6
6
7
10
7
8
9
14
11
13
12
4
3
4
3
5
KGT-1011
4
1
Feeder Holder 20 / FES 20Carriage / FES 20 Clamp Unit
Feeder Holder
