1 2 3 4 5
6 7 8 9 10
11 12 13 14 15
16 17 18 19
KV8-M8860-00X KV8-M8883-A0X KV7-M8880-20X KGA-M3801-00X KGA-M3803-00X
KGA-M3802-00X KV8-M8881-A0X KU4-M8590-00X K48-M3856-00X KV8-M8870-00X
K48-M3852-01X K48-M3857-00X K48-M3854-00X KM8-M34E0-B1X KJ3-MY010-00X
KJ3-MJA00-00X KJ3-M34E0-01X KV7-M3823-00X KV7-M8890-00X
KGT-1010
12
1
Tools
Tools

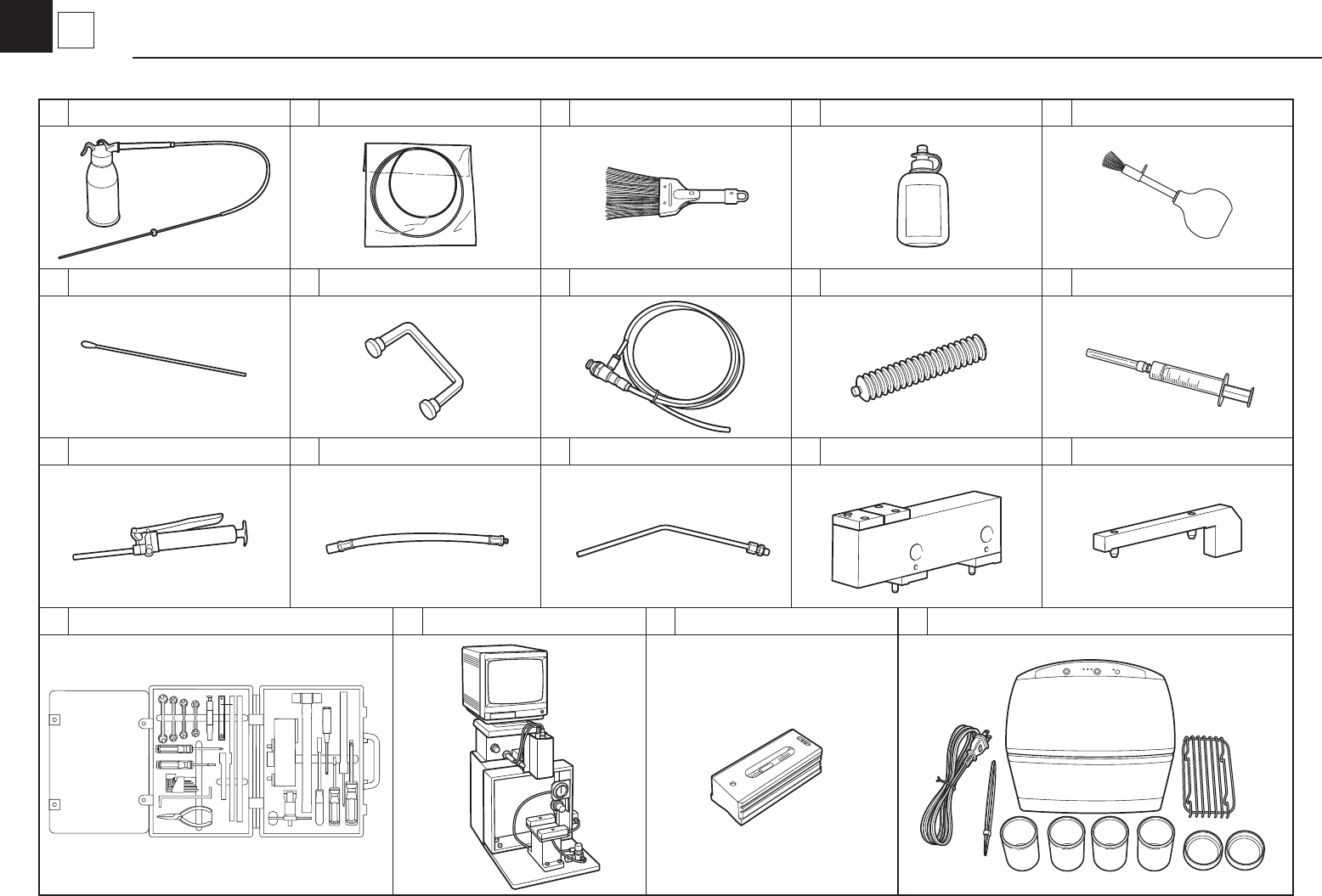

No. Part No. Part Name Uses No. Part No. Part Name Uses
1 KV8-M8860-00X CLEANING KIT Spline shaft cleaner kit 34
2 KV8-M8883-A0X NEEDLE ASSY Nozzle cleaning wire 35
3 KV7-M8880-20X BRUSH, FEEDER Feeder plate cleaning brush 36
4 KGA-M3801-00X CLEANER, LENS Lens cleaner 37
5 KGA-M3803-00X BLOWER Lens blow brush 38
6 KGA-M3802-00X SWAB Cotton swab sticks 39
7
KV8-M8881-A0X
NEEDLE CLEANER ASSY Nozzle cleaning wire handle
40
8
KU4-M8590-00 AIR BLOW TOOL Air blow gun
41
9
K48-M3856-00 GREASE PACK Lithium-based grease (NSL 80g)
42
10 KV8-M8870-00 SYRYNGE OIL
Oil syringe applicator for nozzle
holder
43
44
11
K48-M3852-01 GREASE GUN Grease gun (for Cartlidge )
45
12 K48-M3857-00X GREASE NOZZLE Grease gun nozzle 46
13 K48-M3854-00X GREASE NOZZLE Grease gun nozzle 47
14 KM8-M34E0-B1X
FEEDER JIG ASSY Check and adjust pickup position
48
15 KJ3-MY010-00X
MASTER JIG
Adjust the feeder floating detect
sensor
49
50
16 KJ3-MJA00-00X TOOL CASE ASSY Tool set for exchanging and adjusting tape feeders
51
52
17 KJ3-M34E0-01X JIG FEEDER PICK POS
Check and adjust the pickup position
on tape feeders with monitor
53
54
18 KV7-M3823-00X FLAT LEVEL 0.1mm/m Adjust the machine in the horizontal position
55
56
19 KV7-M8890-00X ULTRAS. CLEANER SET For nozzle cleaning 57
20 58
21 59
22 60
23 61
24 62
25 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
KGT-1010
12
1
Tools
Tools
