MODEL TIM-5000 9905-001 N-10 Key No. PART No. PART NAME Q'ty REMA RKS 901 630 069 3393 CYLIN DER 4 902 630 069 3812 SPRING,CO MP 8 903 630 005 2732 AIR LINE EQPT 1 904 630 003 6923 PIPE FITTI NGS 7 905 630 069 3171 …
MODEL TIM-5000
9905-001
コンベア部 CONVEYOR SECTION

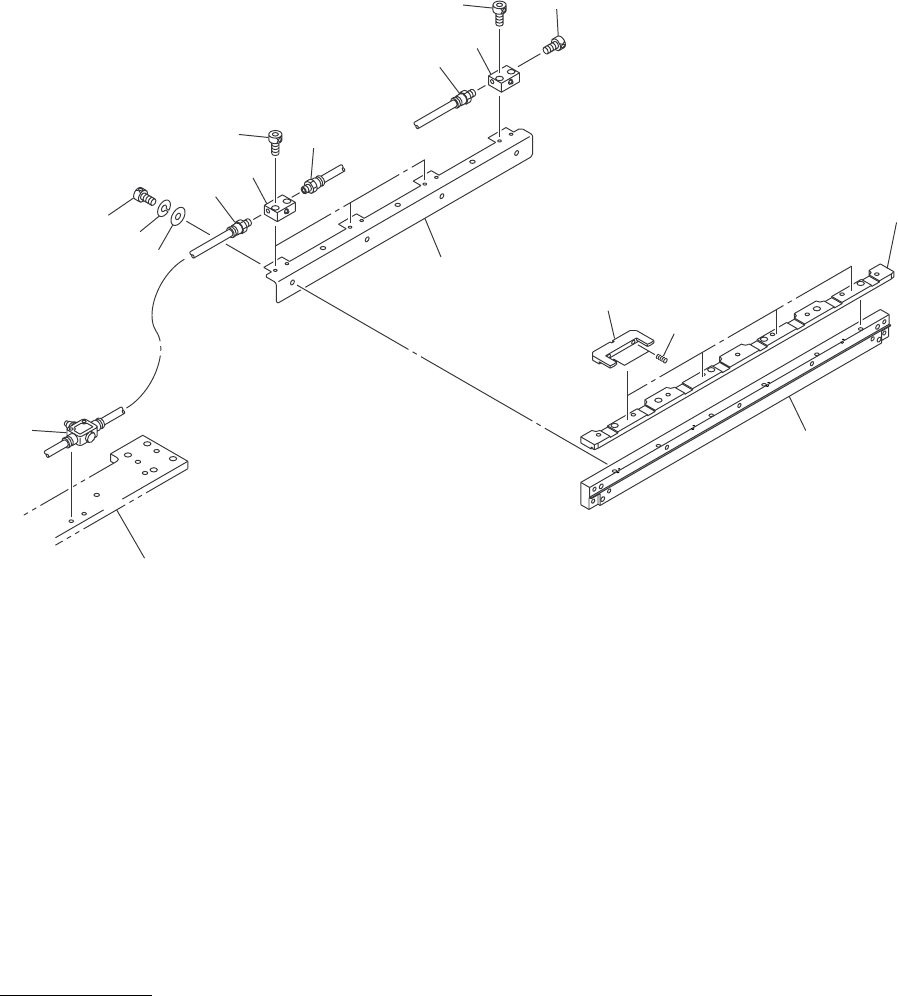

Fig. N-10位置決めシュ−ト（２） Locating Chute (2)
906
901
904
904
903
905
968
967
966
974
969
902
See Fig.N-9
Key No.805
See Fig.N-9
Key No.809
See Fig.N-2
Key No.121
901
974
904
MODEL TIM-5000
9905-001
N-10
Key No. PART No. PART NAME Q'ty REMARKS
901 630 069 3393 CYLINDER 4
902 630 069 3812 SPRING,COMP 8
903 630 005 2732 AIR LINE EQPT 1
904 630 003 6923 PIPE FITTINGS 7
905 630 069 3171 BLOCK,LOCATE 4
906 630 078 6545 BRACKET 1
966 411 141 4107 WASHER V 5X10X1 4 FW5
967 411 141 6705 WASHER SPR 5 4 SW5
968 630 000 7756 BOLT,HEX-SCT 4 M5X12
974 630 000 7633 BOLT,HEX-SCT 8 M4X12
NOTE
MODEL TIM-5000
9905-001
バックアップベ−ス部 BACK-UP BASE SECTION
Fig. P-1 バックアップ上下部 Back-up Up/Down Section
66
67
68
66
23
23
23
23
66
67
70
18
17
71
72
73
7
76
3
75
72
71
2
75
3
76
72
71
2
4
5
75
3
76
72
71
2
13
56
19
14
11
86
87
89
71
14
10
14
74
72
2
56
57
58
74
72
2
15
10
86
87
88
72
74
9
8
9
8
9
8
57
59
75
3
76
72
71
20
63
62
61
1
16
60
62
64
6
22
21
6
12
2
67
68
66
67
69
66
67
69
See Fig.P-2
Key No.101
