MODEL TIM-5000
9905-001
QC-2
Key No. PART No. PART NAME Q'ty REMARKS
101 630 082 9099 ASSY,LEVER 19
101 -01 630 071 7419 LEVER 1
101 -02 630 071 9246 BEARING,RADIAL 1
101 -03 630 071 9161 BOLT,HEX-SCT 3
102 630 071 7365 SHAFT 1
103 630 082 9105 ASSY,LEVER 2
103 -01 630 075 1642 LEVER 1
103 -02 630 071 9246 BEARING,RADIAL 1
103 -03 630 071 9161 BOLT,HEX-SCT 3
104 630 075 1680 BLOCK 2
105 630 071 7266 PLATE 1
106 630 075 1673 ROD 2
107 630 075 1666 SPACER 2
108 630 071 7303 SPACER 13
109 630 074 4231 BLOCK 3
110 630 071 7457 SPRING,TENSION 1
111 630 074 0189 HOOK 1
112 630 074 8802 ROD END 19
113 630 074 8796 BRACKET 9
114 630 071 8720 BRACKET 1
115 630 071 8331 SHAFT 21
116 630 074 8789 SHAFT 17
117 630 071 9635 BRACKET 1
119 630 034 0020 CAM FOLLOWER 2
120 630 071 9215 SPACER 20
122 630 074 3258 CYLINDER 19
122 -01 630 003 7241 PIPE FITTINGS 2
123 630 071 9185 AIR LINE EQPT 1
124 630 071 9192 AIR LINE EQPT 1
126 630 082 9112 ASSY,LEVER 2
126 -01 630 075 1659 LEVER 1
126 -02 630 071 9246 BEARING,RADIAL 1
126 -03 630 071 9161 BOLT,HEX-SCT 3
127 630 003 7241 PIPE FITTINGS 19
128 630 003 8118 PIPE FITTINGS 1
129 630 003 7326 PIPE FITTINGS 2
130 630 003 7807 PIPE FITTINGS 1
151 411 141 4701 WASHER V 10X21X2 2 FW10
152 411 141 3209 WASHER SPR 10 2 SW10
161 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
162 411 141 3001 WASHER SPR 6 2 SW6
163 411 141 0703 NUT HEX 6 2 M6
166 411 141 4107 WASHER V 5X10X1 38 FW5
167 411 141 6705 WASHER SPR 5 38 SW5
168 630 000 7749 BOLT,HEX-SCT 8 M5X10
169 630 000 7763 BOLT,HEX-SCT 28 M5X16
170 630 000 7770 BOLT,HEX-SCT 2 M5X20
171 411 141 4008 WASHER V 4X9X0.8 2 FW4
172 411 141 2905 WASHER SPR 4 2 SW4
173 630 000 7671 BOLT,HEX-SCT 2 M4X25
NOTE
4 unit/1 machine
MODEL TIM-5000
9905-001
QC-2
Key No. PART No. PART NAME Q'ty REMARKS
181 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
182 411 008 1706 WASHER SPR 4 4 SW4 F
183 630 000 8609 BOLT,HEX 2 M4X30 HEX
184 411 054 8506 NUT HEX 4 2 M4 F
196 411 001 0201 RING E 5 21
NOTE
4 unit/1 machine

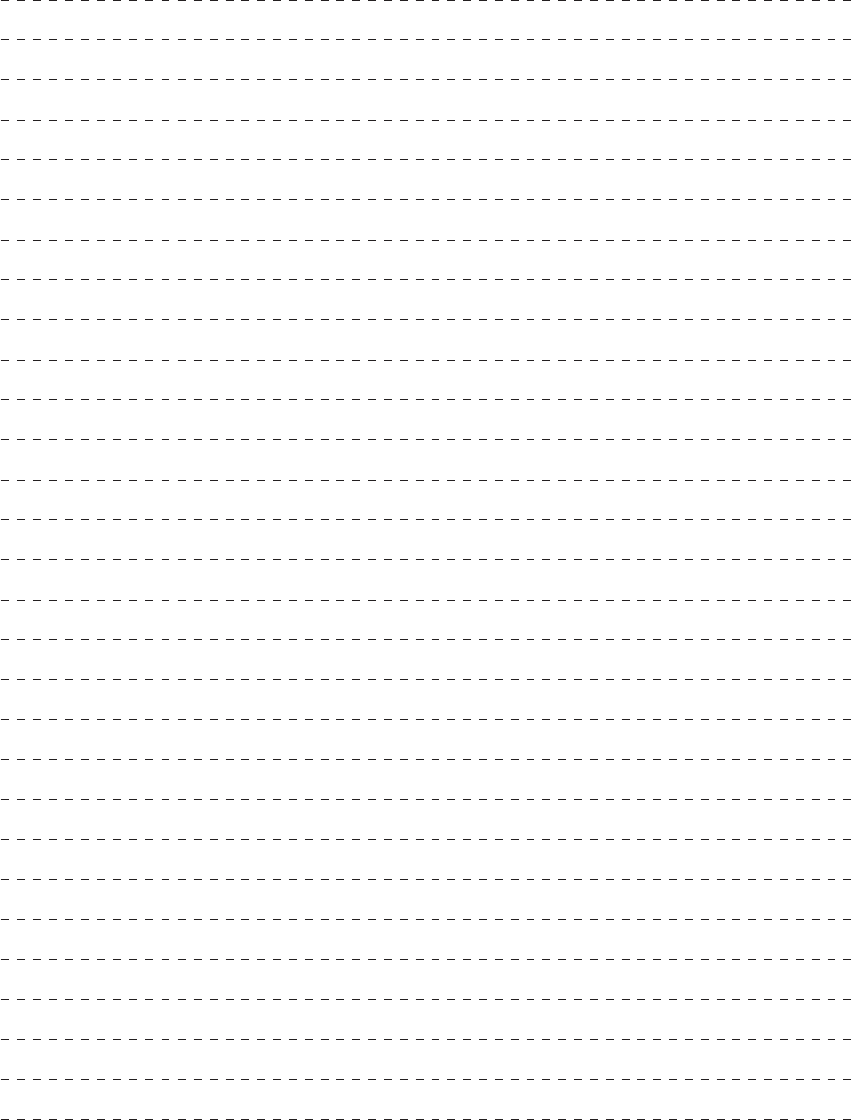

MEMO
