MODEL TIM-5000 9905-001 本体電装部 MACHINE ELECTRICAL SECTION Fig. BB-5 操作パネルＡ ＳＤＳ Operation Panel A SDS 436 438 436 437 438 437 464 461 463 466 465 462 463 459 460 485 436 437 438 484 431 469 486 470 487 432 433 435 436 437 …
MODEL TIM-5000
9905-001
BB-4
Key No. PART No. PART NAME Q'ty REMARKS
335 411 113 5002 SCR FLT 4X12 4 M4X12 FLT
336 411 119 2104 WASHER V 4X9X0.8 18 FW4 F
337 411 008 1706 WASHER SPR 4 18 SW4 F
338 411 042 3001 SCR PAN 4X10 4 M4X10 PAN
339 411 003 0001 SCR PAN 4X12 10 M4X12 PAN
340 411 054 8506 NUT HEX 4 12 M4 F
341 411 141 4107 WASHER V 5X10X1 3 FW5 F
342 411 141 6705 WASHER SPR 5 3 SW5 F
343 411 140 4900 SCR PAN 5X12 3 M5X12 PAN
359 630 053 2883 MOTOR,AC 2 675BB-11D-359
360 630 049 1128 ACCESSORY,MOT-M 2 675BB-11D-360
361 630 049 1074 ACCESSORY,MOT-M 2 675BB-11D-451
362 630 070 6390 UNIT,DISPLAY 1 675BB-11D-762
363 630 067 0257 UNIT,I/O 1 675BB-11D-763
366 630 050 0745 ACCESSORY,MOT-M 2 675BB-11D-766
367 630 073 5376 ACCESSORY,LAMP 1 675BB-11D-767
368 630 041 4172 PILOT LAMP 1 675BB-11D-556
368 -01 630 000 1983 LAMP 3
369 630 070 4433 PILOT LAMP 2 675BB-11D-559
369 -01 630 075 3325 LAMP 1
370 630 000 4243 SOCKET 2 675BB-11D-457
NOTE
MODEL TIM-5000
9905-001
本体電装部 MACHINE ELECTRICAL SECTION

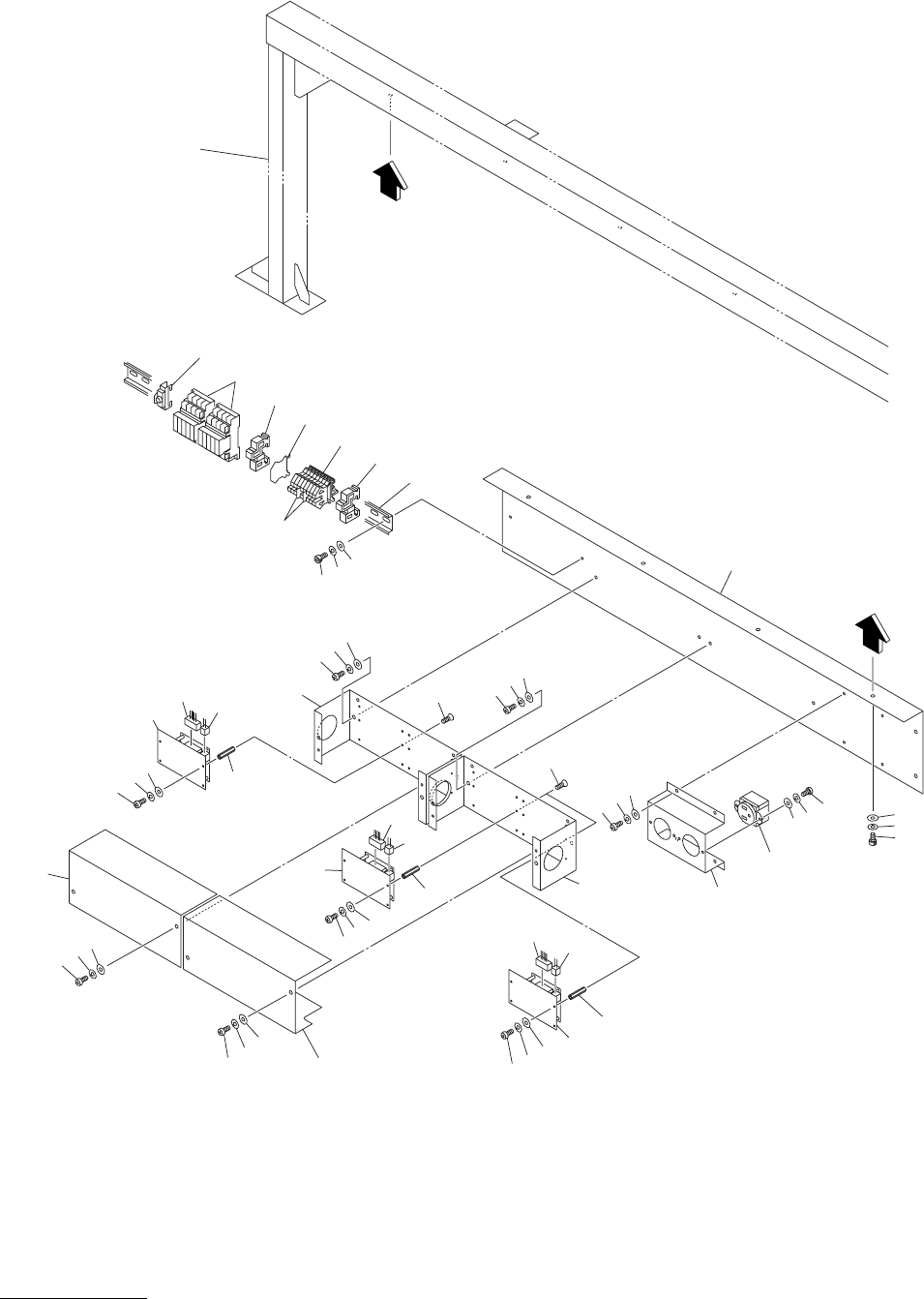

Fig. BB-5操作パネルＡ ＳＤＳ Operation Panel A SDS
436
438
436
437
438
437
464
461
463
466
465
462
463
459
460
485
436
437
438
484
431
469
486
470
487
432
433
435
436
437
438
435
416
417
418
481
457
483
484
485
.
A
A
See Fig.B-5
Key No.401
431
469
486
470
487
432
433
431
468
486
470
487
432
433
436
437
438
436
437
438
438
437
436
MODEL TIM-5000
9905-001
BB-5
Key No. PART No. PART NAME Q'ty REMARKS
416 411 141 4107 WASHER V 5X10X1 8 FW5
417 411 141 6705 WASHER SPR 5 8 SW5
418 630 000 7732 BOLT,HEX-SCT 8 M5X8
431 411 119 1909 WASHER V 3X7X0.5 12 FW3 F
432 411 086 4408 WASHER SPR 3 12 SW3 F
433 411 041 8908 SCR PAN 3X6 12 M3X6 PAN
435 411 108 7103 BOLT HEX 3X10 12 M3X10 FLT
436 411 119 2104 WASHER V 4X9X0.8 12 FW4 F
437 411 008 1706 WASHER SPR 4 12 SW4 F
438 411 043 5004 SCR PAN 4X8 12 M4X8 PAN
457 630 000 4243 SOCKET 1 675BB-11D-457
459 630 070 3016 RELAY 2 675BB-11D-459
460 630 000 1051 BRACKET,WIRING 1 675BB-11D-965
461 630 049 3702 ACCESSORY,WIRING 2 675BB-11D-254
462 630 049 3733 ACCESSORY,WIRING 1 675BB-11D-255
463 630 049 3672 BRACKET,WIRING 2 675BB-11D-256
465 630 068 9631 TERMINAL 8 675BB-11D-755
468 630 071 2551 UNIT,I/O 1 675BB-11D-860
469 630 071 2568 UNIT,I/O 2 675BB-11D-861
470 630 069 1078 ACCESSORY,P.C.B 12 675BB-11D-866
481 630 071 2964 BRACKET 1 675BB-11V-076
483 630 071 3756 BRACKET 1 675BB-11V-078
484 630 071 5309 BOX 2 675BB-11V-271
485 630 071 3763 COVER 2 675BB-11V-272
486 630 070 2965 CONNECTOR 3 675BB-11D-652
487 630 070 2972 CONNECTOR 3 675BB-11D-868
NOTE
