MODEL TIM-5000 9905-001 本体電装部 MACHINE ELECTRICAL SECTION Fig. BB-6 操作パネルＢ ＳＤＳ Operation Panel B SDS 535 535 557 583 582 569 587 586 570 585 516 517 519 516 517 518 584 See Fig.B-5 Key No.401 587 586 531 532 533 516 517 5…
MODEL TIM-5000
9905-001
BB-5
Key No. PART No. PART NAME Q'ty REMARKS
416 411 141 4107 WASHER V 5X10X1 8 FW5
417 411 141 6705 WASHER SPR 5 8 SW5
418 630 000 7732 BOLT,HEX-SCT 8 M5X8
431 411 119 1909 WASHER V 3X7X0.5 12 FW3 F
432 411 086 4408 WASHER SPR 3 12 SW3 F
433 411 041 8908 SCR PAN 3X6 12 M3X6 PAN
435 411 108 7103 BOLT HEX 3X10 12 M3X10 FLT
436 411 119 2104 WASHER V 4X9X0.8 12 FW4 F
437 411 008 1706 WASHER SPR 4 12 SW4 F
438 411 043 5004 SCR PAN 4X8 12 M4X8 PAN
457 630 000 4243 SOCKET 1 675BB-11D-457
459 630 070 3016 RELAY 2 675BB-11D-459
460 630 000 1051 BRACKET,WIRING 1 675BB-11D-965
461 630 049 3702 ACCESSORY,WIRING 2 675BB-11D-254
462 630 049 3733 ACCESSORY,WIRING 1 675BB-11D-255
463 630 049 3672 BRACKET,WIRING 2 675BB-11D-256
465 630 068 9631 TERMINAL 8 675BB-11D-755
468 630 071 2551 UNIT,I/O 1 675BB-11D-860
469 630 071 2568 UNIT,I/O 2 675BB-11D-861
470 630 069 1078 ACCESSORY,P.C.B 12 675BB-11D-866
481 630 071 2964 BRACKET 1 675BB-11V-076
483 630 071 3756 BRACKET 1 675BB-11V-078
484 630 071 5309 BOX 2 675BB-11V-271
485 630 071 3763 COVER 2 675BB-11V-272
486 630 070 2965 CONNECTOR 3 675BB-11D-652
487 630 070 2972 CONNECTOR 3 675BB-11D-868
NOTE
MODEL TIM-5000
9905-001
本体電装部 MACHINE ELECTRICAL SECTION

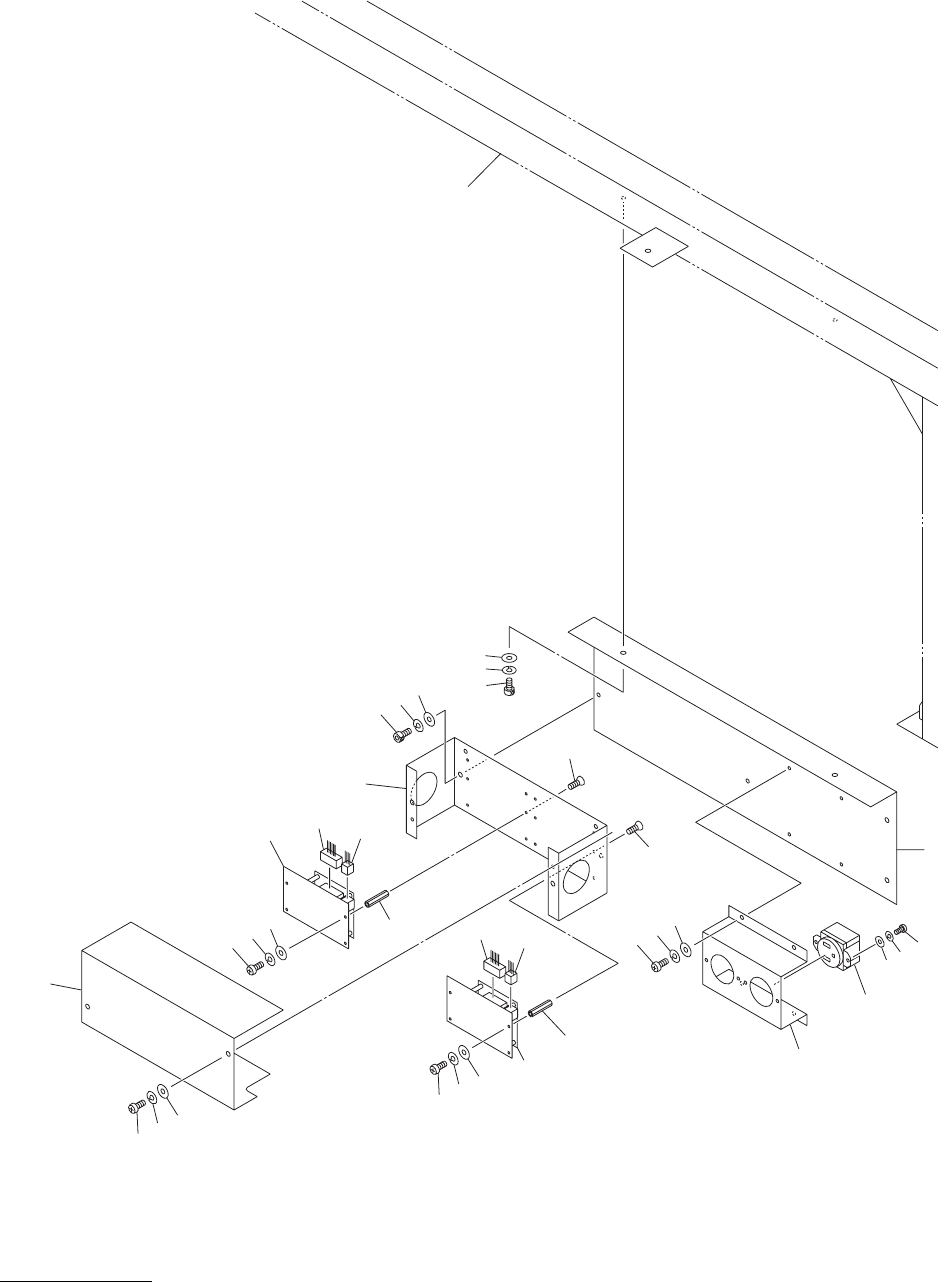

Fig. BB-6操作パネルＢ ＳＤＳ Operation Panel B SDS
535
535
557
583
582
569
587
586
570
585
516
517
519
516
517
518
584
See Fig.B-5
Key No.401
587
586
531
532
533
516
517
518
531
568
570
532
533
536
537
538
538
537
536
MODEL TIM-5000
9905-001
BB-6
Key No. PART No. PART NAME Q'ty REMARKS
516 411 141 4107 WASHER V 5X10X1 4 FW5
517 411 141 6705 WASHER SPR 5 4 SW5
518 630 000 7732 BOLT,HEX-SCT 2 M5X8
519 630 000 7749 BOLT,HEX-SCT 2 M5X10
531 411 119 1909 WASHER V 3X7X0.5 8 FW3 F
532 411 086 4408 WASHER SPR 3 8 SW3 F
533 411 041 8908 SCR PAN 3X6 8 M3X6 PAN
535 411 108 7103 SCR FLT 3X10 8 M3X10 FLT
536 411 119 2104 WASHER V 4X9X0.8 10 FW4 F
537 411 008 1706 WASHER SPR 4 10 SW4 F
538 411 043 5004 SCR PAN 4X8 10 M4X8 PAN
557 630 000 4243 SOCKET 1 675BB-11D-457
568 630 071 2551 UNIT,I/O 1 675BB-11D-860
569 630 071 2568 UNIT,I/O 1 675BB-11D-861
570 630 069 1078 ACCESSORY,P.C.B 8 675BB-11D-866
582 630 071 3961 BRACKET 1 675BB-11V-077
583 630 071 3756 BRACKET 1 675BB-11V-078
584 630 071 5309 BOX 1 675BB-11V-271
585 630 071 3763 COVER 1 675BB-11V-272
586 630 070 2965 CONNECTOR 2 675BB-11D-652
587 630 070 2972 CONNECTOR 2 675BB-11D-868
NOTE
