MODEL TIM-5000 9905-001 BB-9 Key No. PART No. PART NAME Q'ty REMA RKS 816 630 001 0220 W ASHER 2 BW 5 817 411 141 6705 W ASHER SPR 5 2 SW 5 818 630 000 7756 BOLT,HEX -SCT 2 M5X12 836 411 119 2104 W ASHEER V 4X9X 0.8…
MODEL TIM-5000
9905-001
本体電装部 MACHINE ELECTRICAL SECTION

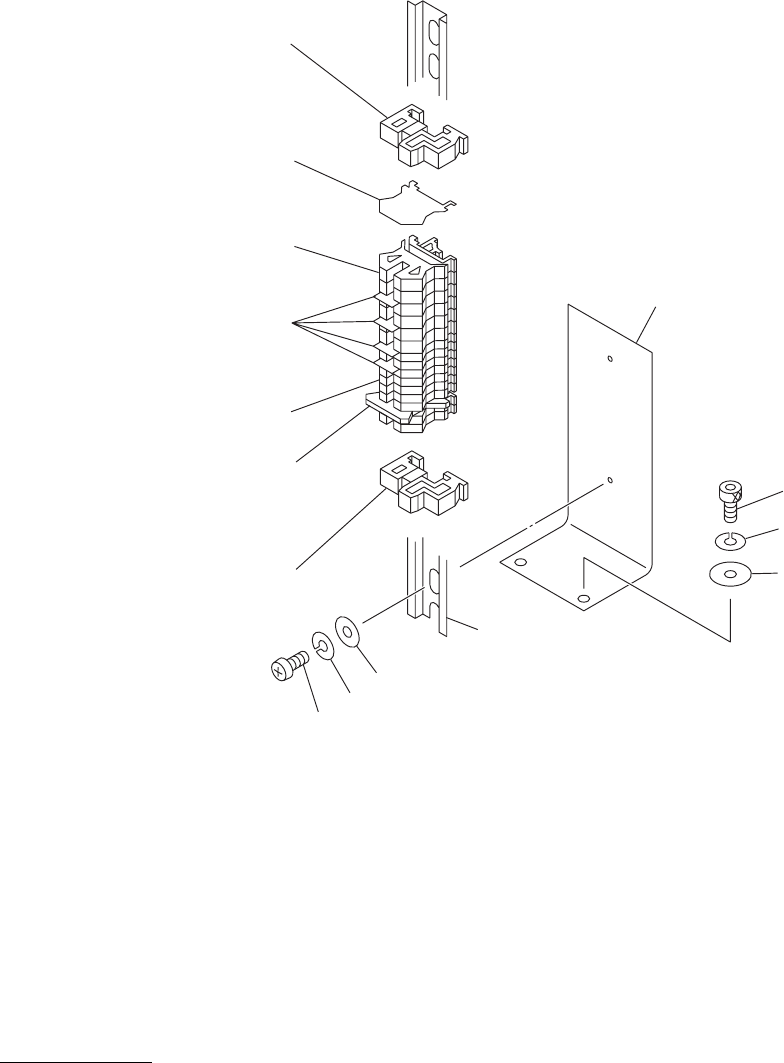

Fig. BB-9ＡＣ２００Ｖターミナル AC 200V Terminal
818
817
816
871
838
837
836
877
876
876
875
879880
.
872873
.
874
882
MODEL TIM-5000
9905-001
BB-9
Key No. PART No. PART NAME Q'ty REMARKS
816 630 001 0220 WASHER 2 BW5
817 411 141 6705 WASHER SPR 5 2 SW5
818 630 000 7756 BOLT,HEX-SCT 2 M5X12
836 411 119 2104 WASHEER V 4X9X0.8 2 FW4 F
837 411 008 1706 WASHER SPR 4 2 SW4 F
838 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
871 630 071 2681 BRACKET 1 675BB-11V-173
872 630 069 4987 TERMINAL 6 675BB-11D-252
873 630 069 4994 ACCESSORY,WIRING 1 675BB-11D-253
874 630 049 3702 ACCESSORY,WIRING 4 675BB-11D-254
875 630 049 3733 ACCESSORY,WIRING 1 675BB-11D-255
876 630 049 3672 BRACKET,WIRING 2 675BB-11D-256
879 630 068 9631 TERMINAL 9 675BB-11D-755
882 630 049 3757 ACCESSORY,WIRING 1 675BB-11D-758
NOTE
MODEL TIM-5000
9905-001
本体電装部 MACHINE ELECTRICAL SECTION

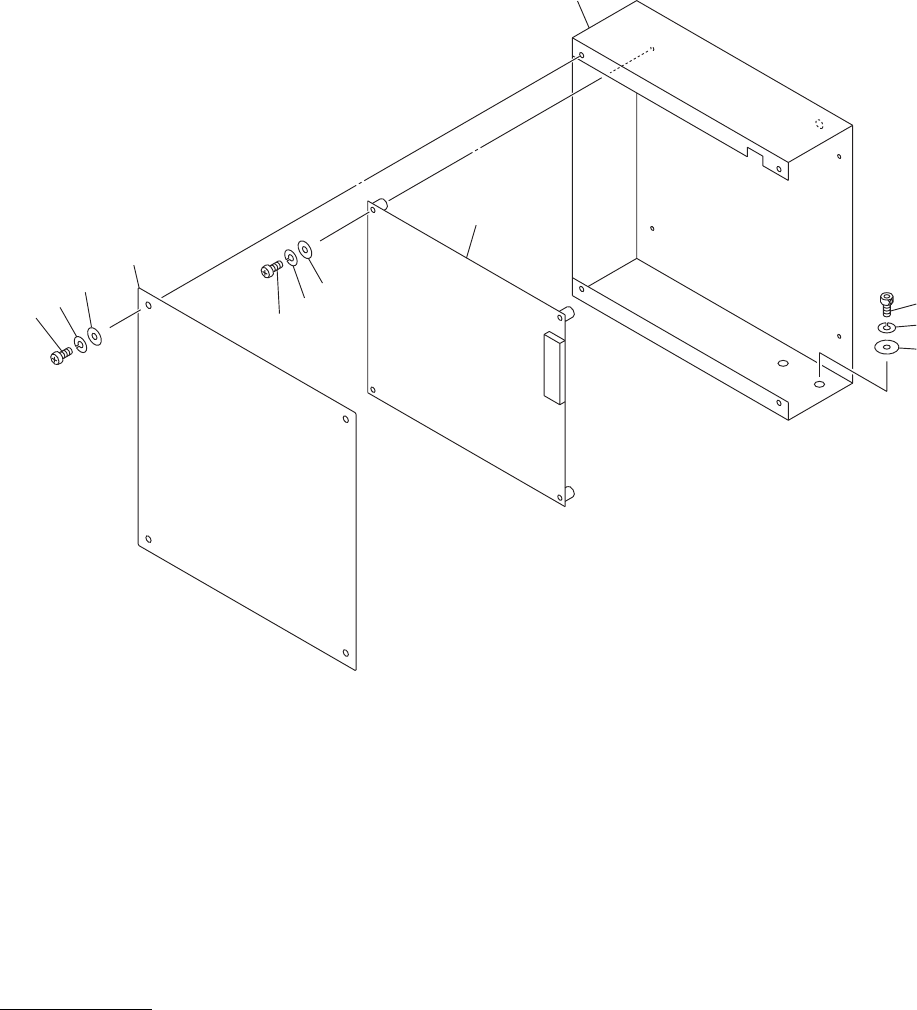

Fig. BB-10メカ配線ボード４ Machine Wiring Bord 4
936
972
971
937
938
931
973
916
918
917
932
933
