MODEL TIM-5000
9905-001
制御ボックス部 CONTROL BOX SECTION

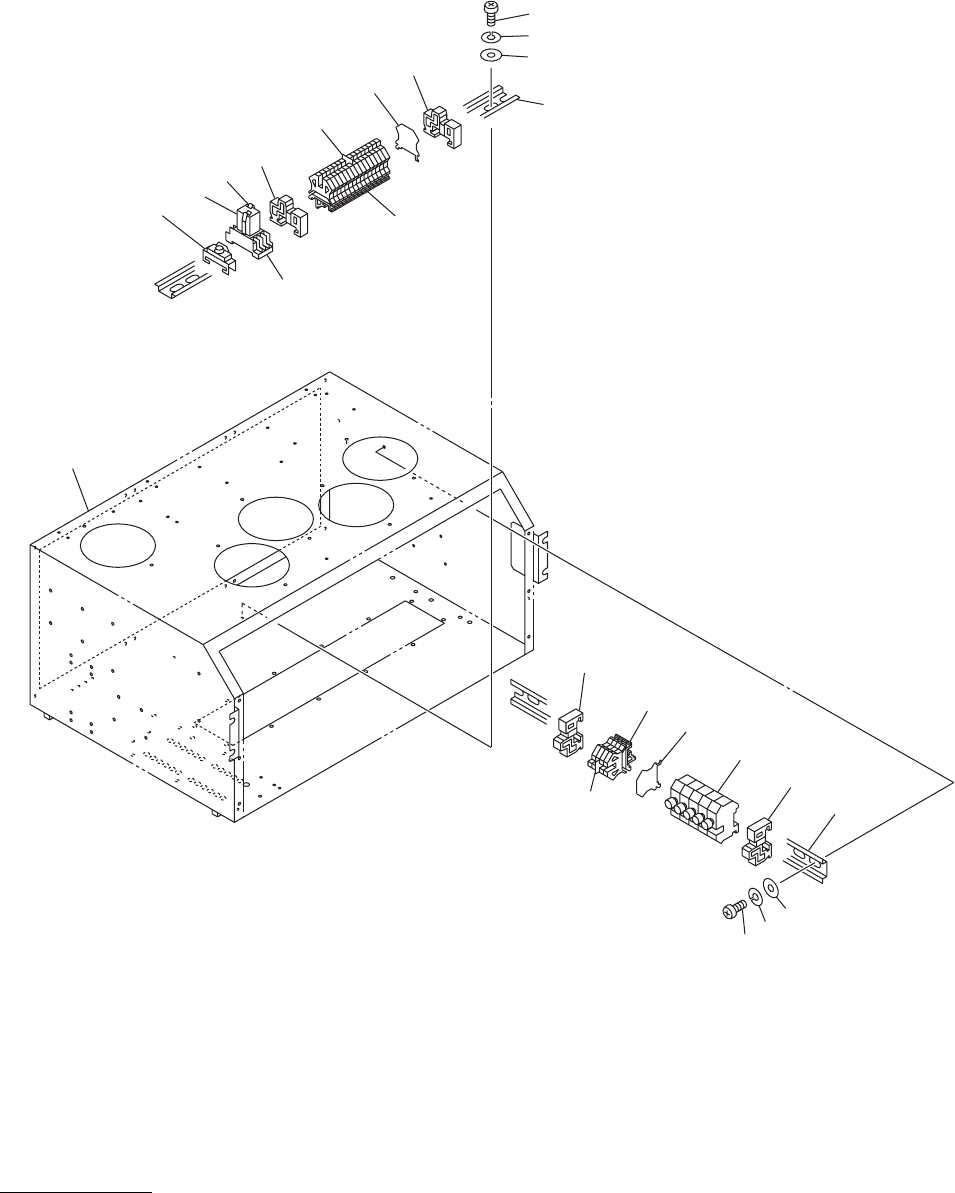

Fig. BC-2制御ボックス（２） Control Box (2)
168
158
161
157
159
164
163
166
160
158
123
121
122
158
159
160
157
161
155
158
154
169
167
121
122
123
156
.
.
.
.
See Fig.BC-1
Key No.71
MODEL TIM-5000
9905-001
BC-2
Key No. PART No. PART NAME Q'ty REMARKS
121 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
122 411 008 1706 WASHER SPR 4 4 SW4 F
123 411 043 5004 SCR PAN 4X8 4 M4X8 PAN
154 630 049 2125 RELAY 1 675BC-11D-154
155 630 045 4260 SOCKET 1 675BC-11D-155
156 630 000 1020 BRACKET,WIRING 2 675BC-11D-156
157 630 068 9631 TERMINAL 19 675BC-11D-157
158 630 049 3672 BRACKET,WIRING 4 675BC-11D-158
159 630 049 3733 ACCESSORY,WIRING 2 675BC-11D-159
160 630 049 3702 ACCESSORY,WIRING 2 675BC-11D-160
161 630 049 3818 ACCESSORY,WIRING 2 675BC-11D-251
163 630 049 1173 FUSE HOLDER 5 675BC-11D-253
164 630 059 6632 ACCESSORY,WIRING 1 675BC-11D-254
166 423 022 8005 FUSE 250V 1A 5 675BC-11D-256
169 630 000 1051 BRACKET,WIRING 1 675BC-11D-755
NOTE
MODEL TIM-5000
9905-001
制御ボックス部 CONTROL BOX SECTION

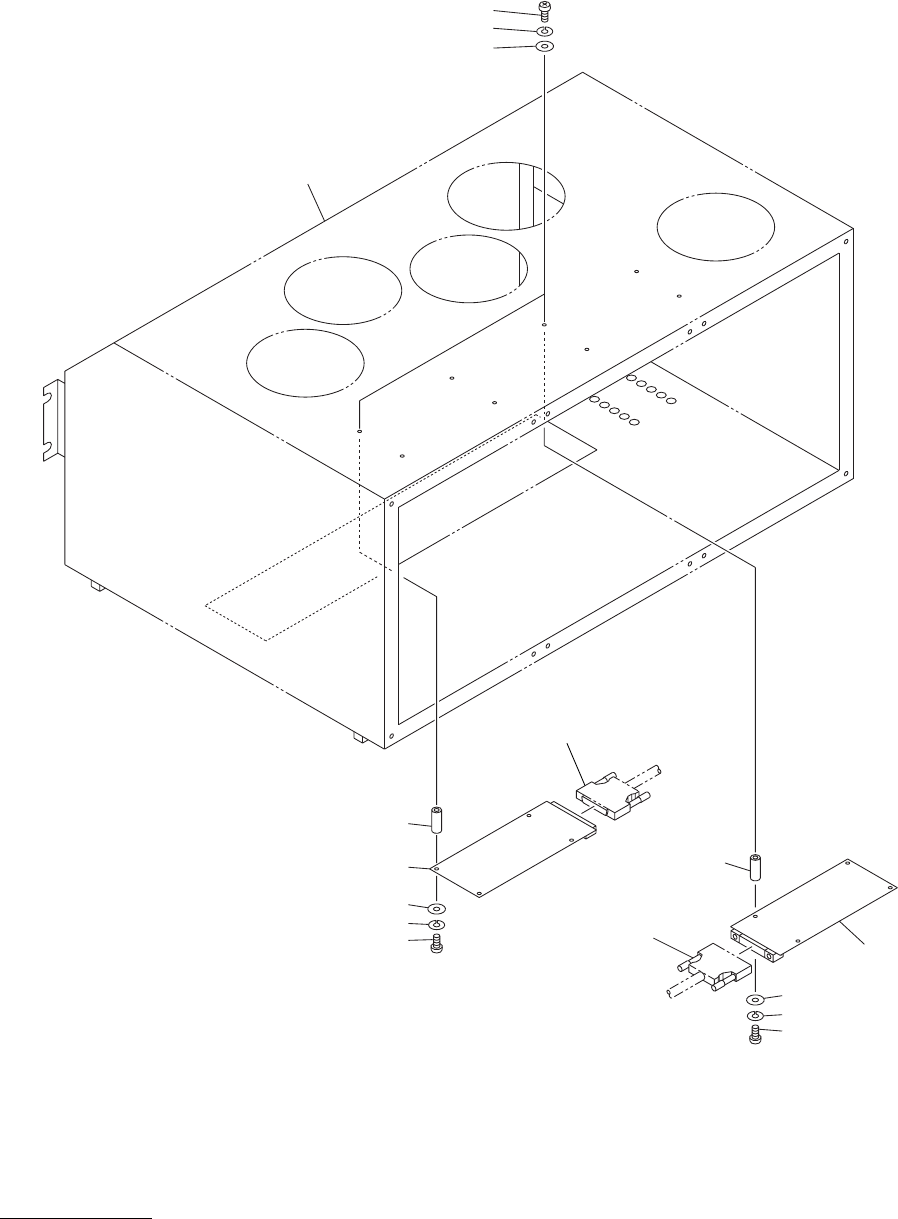

Fig. BC-3リレー基板 Relay P.C.B.
263
211
213
212
211
263
262
213
212
262
See Fig.BC-1
Key No.71
See Fig.BQ-1
Key No.62
See Fig.BQ-1
Key No.61
211
212
213
