MODEL TIM-5000
9905-001
ドライバ部 DRIVER SECTION

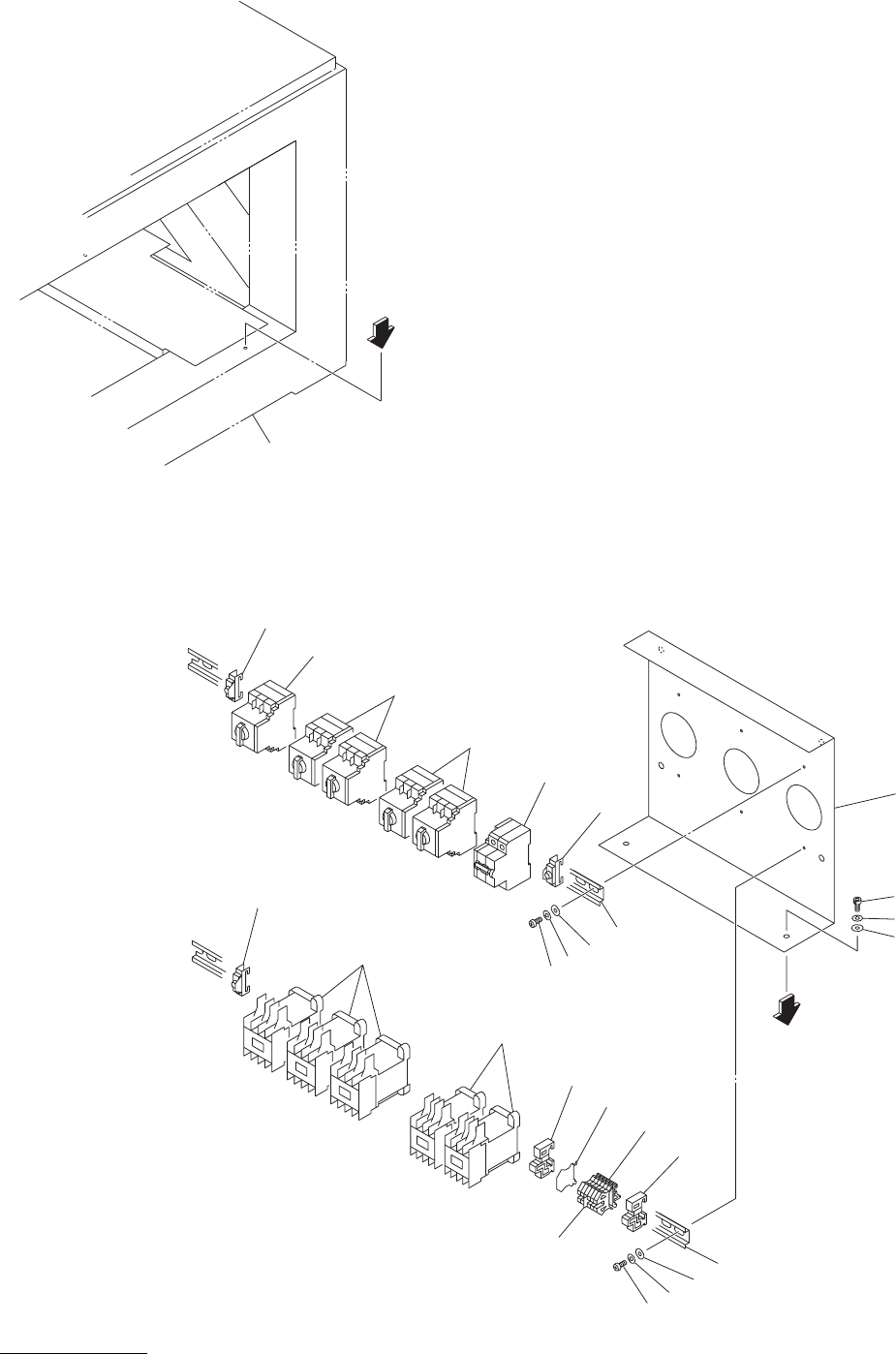

Fig. BD-2ドライバＡパネルレイアウト Driver A Panel Layout
174
118
117
116
171
169
168
154
153
152
151
155
153
157
141
142
143
157
171
165
166
167
159
171
141
142
143
.
A
A
See Fig.B-1
Key No.1
MODEL TIM-5000
9905-001
BD-2
Key No. PART No. PART NAME Q'ty REMARKS
116 630 001 0220 WASHER 3 BW5
117 411 141 6705 WASHER SPR 5 3 SW5
118 630 000 7756 BOLT,HEX-SCT 3 M5X12
141 411 119 2104 WASHER V 4X9X0.8 6 FW4 F
142 411 008 1706 WASHER SPR 4 6 SW4 F
143 411 043 5004 SCR PAN 4X8 6 M4X8 PAN
151 630 068 9631 TERMINAL 6 675BD-11D-151
152 630 049 3733 ACCESSORY,WIRING 1 675BD-11D-152
153 630 049 3672 BRACKET,WIRING 2 675BD-11D-153
154 630 049 3702 ACCESSORY,WIRING 1 675BD-11D-154
159 630 069 7407 CIRCUIT PROTECTOR 1 675BD-11D-159
165 630 053 7161 BREAKER 1 675BD-11D-055
166 630 067 0615 CIRCUIT PROTECTOR 2 675BD-11D-056
167 630 067 0608 CIRCUIT PROTECTOR 2 675BD-11D-057
168 630 067 0639 EM-CONTACTOR 2 675BD-11D-058
169 630 053 8588 EM-CONTACTOR 3 675BD-11D-059
171 630 000 1051 BRACKET,WIRING 3 675BD-11D-251
174 630 071 6757 BRACKET 1 675BD-11V-074
NOTE
MODEL TIM-5000
9905-001
ドライバ部 DRIVER SECTION
Fig. BD-3ドライバＢレイアウト Driver B Layout
218
217
216
273
See Fig.B-1
Key No.1
254
236
237
238
219
246
248
247
217
215
271
253
252
251
272
215
219
217
246
248
247
246
248
247
