MODEL TIM-5000 9905-001 ドライバ部 DRIVER SECTION Fig. BD-4 ドライバＢパネルレイアウト Driver B Panel Layout A A See Fig.B-1 Key No.1 353 371 371 341 357 343 342 365 366 367 352 354 371 341 357 342 343 353 318 374 317 316 368 369 351 355 …
MODEL TIM-5000
9905-001
BD-3
Key No. PART No. PART NAME Q'ty REMARKS
215 630 001 0220 WASHER 7 BW5
216 411 141 4107 WASHER V 5X10X1 2 FW5
217 411 141 6705 WASHER SPR 5 9 SW5
218 630 000 7749 BOLT,HEX-SCT 2 M5X10
219 630 000 7756 BOLT,HEX-SCT 7 M5X12
236 411 119 1909 WASHER V 3X7X0.5 6 FW3 F
237 411 086 4408 WASHER SPR 3 6 SW3 F
238 411 040 6202 SCR PAN 3X10 6 M3X10 PAN
246 411 088 1702 WASHER V 5X10X1 14 FW5 F
247 411 008 2109 WASHER SPR 5 14 SW5 F
248 411 043 6803 SCR PAN 5X12 14 M5X12 PAN
251 630 068 9624 UNIT,DRIVER 1 675BE-11D-051
252 630 073 5475 UNIT,DRIVER 1 675BE-11D-052
253 630 075 0447 UNIT,DRIVER 2 675BE-11D-053
254 630 054 5357 UNIT,POWER 2 675BE-11D-054
271 630 071 6726 BRACKET 1 675BE-11V-071
272 630 071 6733 BRACKET 1 675BE-11V-072
273 630 071 6740 BRACKET 1 675BE-11V-073
NOTE
MODEL TIM-5000
9905-001
ドライバ部 DRIVER SECTION

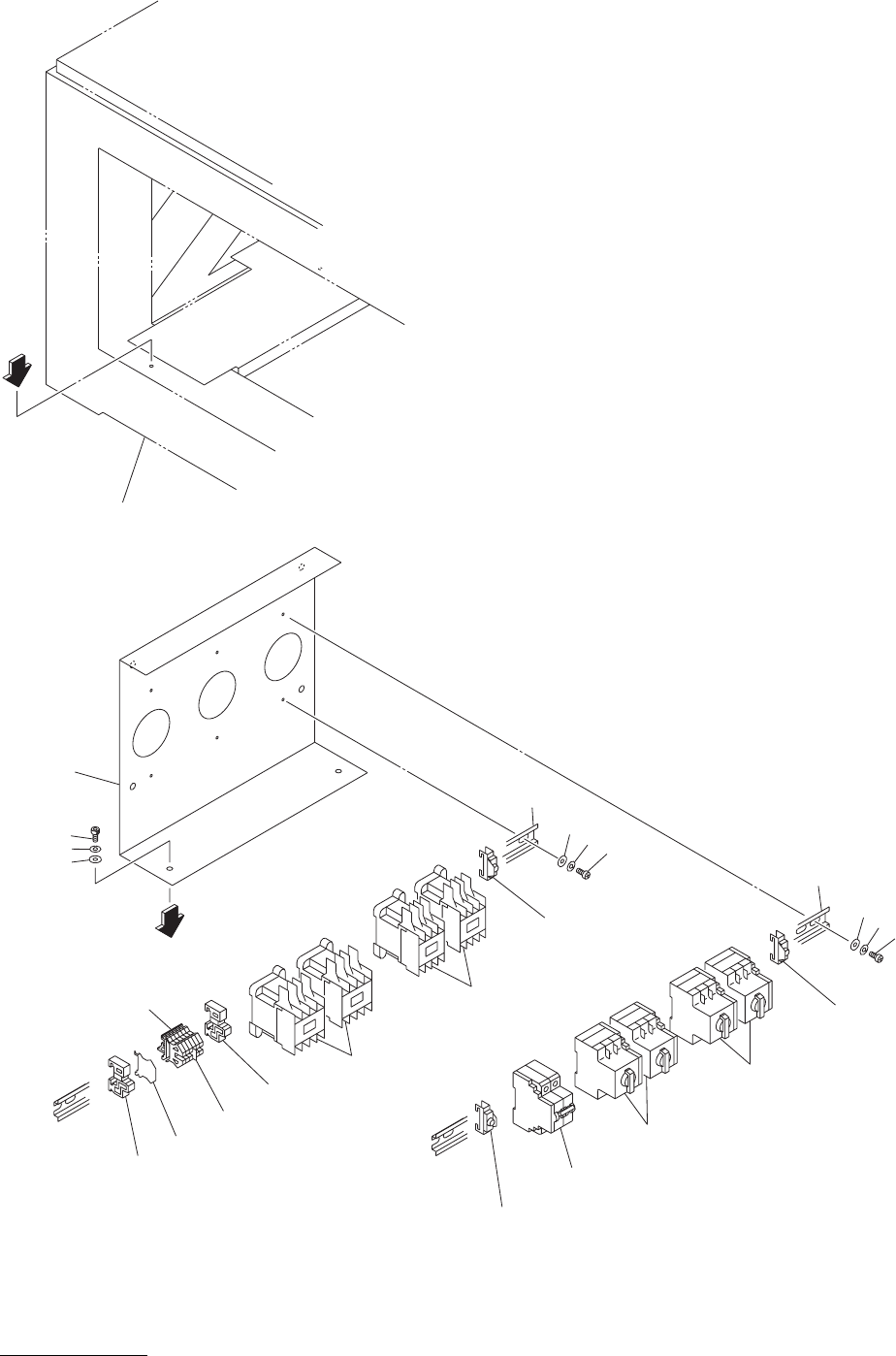

Fig. BD-4ドライバＢパネルレイアウト Driver B Panel Layout
A
A
See Fig.B-1
Key No.1
353
371
371
341
357
343
342
365
366
367
352
354
371
341
357
342
343
353
318
374
317
316
368
369
351
355
.
MODEL TIM-5000
9905-001
BD-4
Key No. PART No. PART NAME Q'ty REMARKS
316 630 001 0220 WASHER 3 BW5
317 411 141 6705 WASHER SPR 5 3 SW5
318 630 000 7756 BOLT,HEX-SCT 3 M5X12
341 411 119 2104 WASHER V 4X9X0.8 6 FW4 F
342 411 008 1706 WASHER SPR 4 6 SW4 F
343 411 143 5004 SCR PAN 4X8 6 M4X8 PAN
351 630 068 9631 TERMINAL 6 675BE-11D-151
352 630 049 3733 ACCESSORY,WIRING 1 675BE-11D-152
353 630 049 3672 BRACKET,WIRING 2 675BE-11D-153
354 630 049 3702 ACCESSORY,WIRING 1 675BE-11D-154
365 630 053 7161 BREAKER 2 675BE-11D-055
366 630 067 0615 CIRCUIT PROTECTOR 2 675BE-11D-056
367 630 067 0608 CIRCUIT PROTECTOR 2 675BE-11D-057
368 630 067 0639 EM-CONTACTOR 2 675BE-11D-058
369 630 053 8588 EM-CONTACTOR 2 675BE-11D-059
371 630 000 1051 BRACKET,WIRING 3 675BE-11D-251
374 630 071 6757 BRACKET 1 675BE-11V-074
NOTE
