MODEL TIM-5000 9905-001 電源部 POWER SUPPL Y SECTION Fig. BF-1 電源１ Power Supply 1 16 17 19 28 66 28 24 55 21 22 23 28 72 60 21 22 23 70 62 70 63 61 61 66 68 64 68 54 70 70 66 18 17 56 71 36 37 38 16 28 58 53 67 16 17 18 31 …
MODEL TIM-5000
9905-001
BD-4
Key No. PART No. PART NAME Q'ty REMARKS
316 630 001 0220 WASHER 3 BW5
317 411 141 6705 WASHER SPR 5 3 SW5
318 630 000 7756 BOLT,HEX-SCT 3 M5X12
341 411 119 2104 WASHER V 4X9X0.8 6 FW4 F
342 411 008 1706 WASHER SPR 4 6 SW4 F
343 411 143 5004 SCR PAN 4X8 6 M4X8 PAN
351 630 068 9631 TERMINAL 6 675BE-11D-151
352 630 049 3733 ACCESSORY,WIRING 1 675BE-11D-152
353 630 049 3672 BRACKET,WIRING 2 675BE-11D-153
354 630 049 3702 ACCESSORY,WIRING 1 675BE-11D-154
365 630 053 7161 BREAKER 2 675BE-11D-055
366 630 067 0615 CIRCUIT PROTECTOR 2 675BE-11D-056
367 630 067 0608 CIRCUIT PROTECTOR 2 675BE-11D-057
368 630 067 0639 EM-CONTACTOR 2 675BE-11D-058
369 630 053 8588 EM-CONTACTOR 2 675BE-11D-059
371 630 000 1051 BRACKET,WIRING 3 675BE-11D-251
374 630 071 6757 BRACKET 1 675BE-11V-074
NOTE
MODEL TIM-5000
9905-001
電源部 POWER SUPPLY SECTION

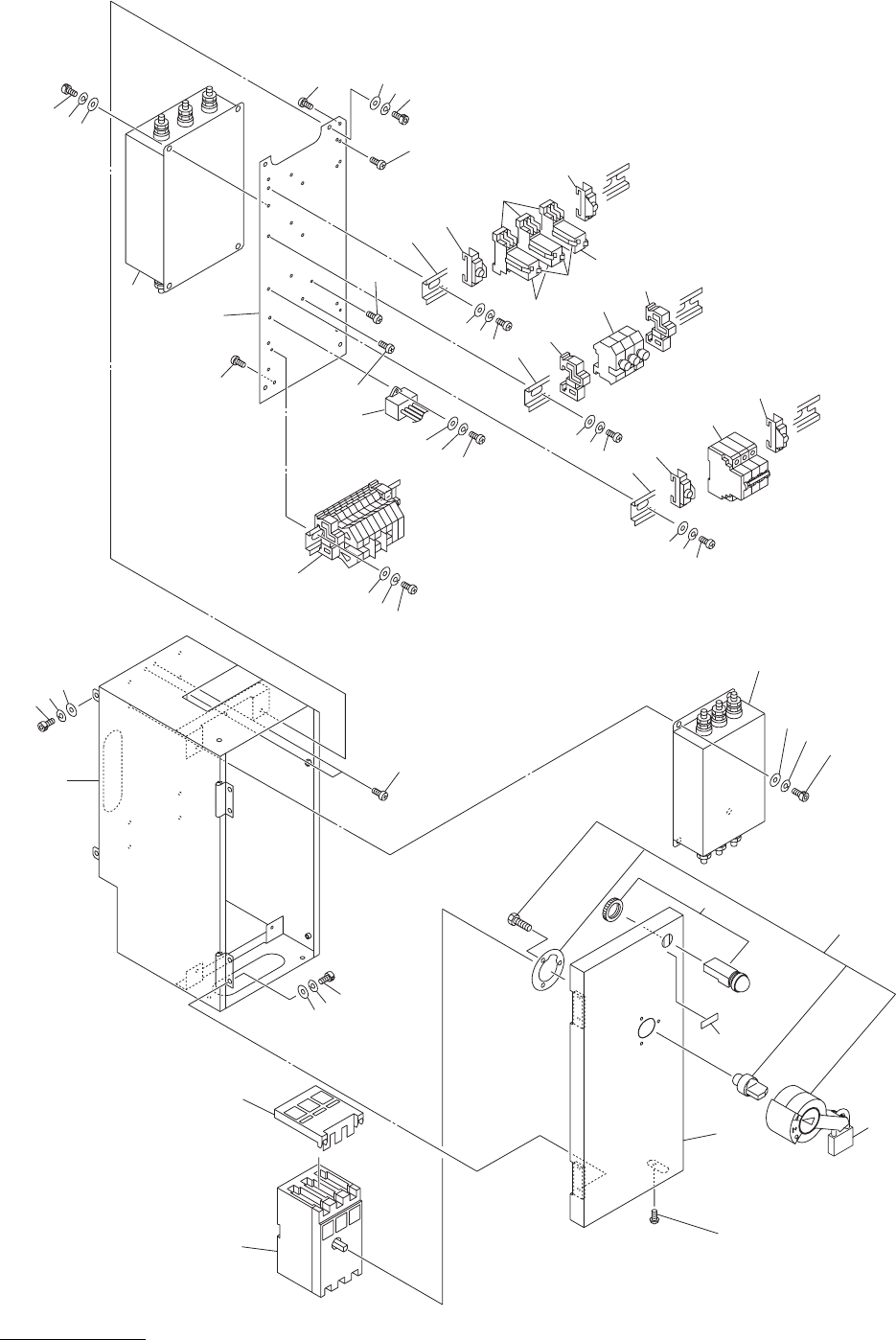

Fig. BF-1電源１ Power Supply 1
16
17
19
28
66
28
24
55
21
22
23
28
72
60
21
22
23
70
62
70
63
61
61
66
68
64
68
54
70
70
66
18
17
56
71
36
37
38
16
28
58
53
67
16
17
18
31
73
93
52
51
16
19
17
21
22
23
21
22
23
21
22
23
28
94
MODEL TIM-5000
9905-001
BF-1
Key No. PART No. PART NAME Q'ty REMARKS
16 411 141 4107 WASHER V 5X10X1 16 FW5
17 411 141 6705 WASHER SPR 5 16 SW5
18 630 000 7756 WASHER HEX-SCT 8 M5X12
19 630 000 7732 BOLT,HEX-SCT 8 M5X8
21 411 119 2104 WASHER V 4X9X0.8 9 FW4 F
22 411 008 1706 WASHER SPR 4 9 SW4 F
23 411 042 3001 SCR PAN 4X10 9 M4X10 PAN
24 411 043 5004 SCR PAN 4X8 1 M4X8 PAN
28 411 113 2803 SCR PAN 5X8 8 M5X8 PAN
31 411 113 9109 SCR TRS 5X10 1 M5X10 TRS
36 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
37 411 141 3001 WASHER SPR 6 2 SW6
38 630 000 7879 BOLT,HEX-SCT 2 M6X12
51 630 049 1104 BREAKER 1 675BF-11D-051
52 630 049 1241 COVER 1 675BF-11D-052
53 630 049 1234 HANDLE 1 675BF-11D-053
54 630 059 7820 BREAKER 1 675BF-11D-054
55 408 031 0004 VARISTOR R¥AEV-781BXZ-4 1 675BF-11D-055
56 630 049 1197 FILTER,NOISE 1 675BF-11D-056
58 630 076 0378 FILTER,NOISE 1 675BF-11D-058
60 630 057 7723 TERMINAL 1 675BF-11D-060
61 630 063 4457 RELAY 3 675BF-11D-151
62 630 045 4260 SOCKET 3 675BF-11D-152
63 630 000 1037 BRACKET,WIRING 6 675BF-11D-153
64 630 049 1173 FUSE HOLDER 3 675BF-11D-154
65 423 025 2000 FUSE 250V 0.4A 3 675BF-11D-155
67 630 067 3562 PILOT LAMP 1 675BF-11D-157
68 630 049 3672 BRACKET,WIRING 2 675BF-11D-158
70 630 000 1051 BRACKET,WIRING 4 675BF-11D-253
71 630 074 8550 BOX 1 675BF-11V-071
72 630 068 8221 PANEL 1 675BF-11V-072
73 630 071 3411 COVER 1 675BF-11V-073
93 630 076 8336 NAME PLATE,PARTS 1 675BF-11D-254
94 630 054 9676 MECH PARTS 1 675S--11D-153
NOTE
