MODEL TIM-5000 9905-001 BF-3 Key No. PART No. PART NAME Q'ty REMA RKS 236 411 119 2104 W ASHER V 4X9X0.8 8 FW 4 F 237 411 008 1706 W ASHER SPR 4 8 SW 4 F 238 411 043 5004 SCR PAN 4X 8 8 M4X8 PAN 253 407 005 1306 DIO…
MODEL TIM-5000
9905-001
電源部 POWER SUPPLY SECTION
Fig. BF-3電源２（２） Power Supply 2 (2)
238
236
276
237
254
257
255
255
261
259
255
275
271
274
275
270
270
280
236
276
237
238
259
261
259
261
256
258
260
258
260
262
264
260
258
262
264
262
264
258
262
264
258
280
259
255
259
253
.
277
278
.
See Fig.BF-2
Key No.173
238
288
289
236
237
MODEL TIM-5000
9905-001
BF-3
Key No. PART No. PART NAME Q'ty REMARKS
236 411 119 2104 WASHER V 4X9X0.8 8 FW4 F
237 411 008 1706 WASHER SPR 4 8 SW4 F
238 411 043 5004 SCR PAN 4X8 8 M4X8 PAN
253 407 005 1306 DIODE DS135C 1 675BG-11D-659
254 630 049 2491 TIMER 1 675BG-11D-154
255 630 049 2088 SOCKET 7 675BG-11D-155
256 630 000 1037 BRACKET,WIRING 2 675BG-11D-156
257 630 049 2095 TIMER 1 675BG-11D-157
258 630 063 5423 RELAY 7 675BG-11D-158
259 630 063 5430 SOCKET 7 675BG-11D-159
260 630 068 9723 RELAY 4 675BG-11D-160
261 630 049 2064 SOCKET 4 675BG-11D-251
262 630 042 4997 RELAY 6 675BG-11D-252
264 630 000 1020 BRACKET,WIRING 12 675BG-11D-254
270 630 049 3702 ACCESSORY,WIRING 6 675BG-11D-260
271 630 068 9631 TERMINAL 84 675BG-11D-351
274 630 049 3733 ACCESSORY,WIRING 1 675BG-11D-354
275 630 049 3672 BRACKET,WIRING 2 675BG-11D-355
277 630 072 6299 RELAY 1 675BG-11D-657
278 630 072 6305 SOCKET 1 675BG-11D-658
280 630 000 1051 BRACKET,WIRING 2 675BG-11D-755
288 630 069 7278 RELAY 1 675BG-11D-558
289 630 049 2422 BRACKET,WIRING 1 675BG-11D-559
NOTE
MODEL TIM-5000
9905-001
電源部 POWER SUPPLY SECTION

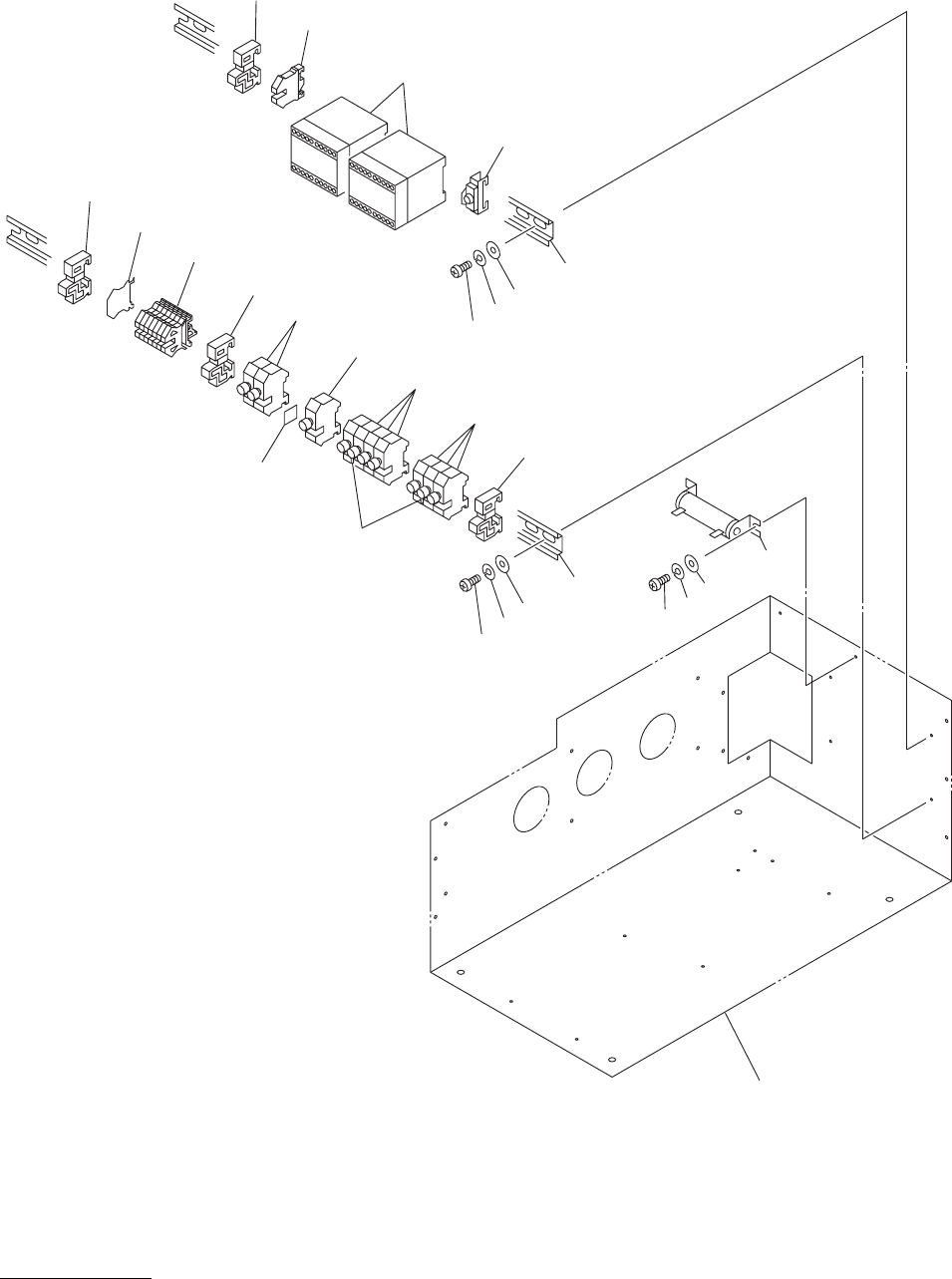

Fig. BF-4電源２（３） Power Supply 2 (3)
356
338
355
357
370
375
355
355
354
351
355
376
376
336
337
356
338
336
337
363
360
361
.
360
367
.
360
362
.
See Fig.BF-2
Key No.173
336
365
338
337
