MODEL TIM-5000 9905-001 電源部 POWER SUPPL Y SECTION Fig. BF-6 電源３ドライバＤＣパネル Power Supply 3 Driver DC Panel 562 563 564 563 560 . 565 575 574 576 562 561 573 572 575 574 A 574 572 562 563 564 563 560 . 565 575 574 576 562 56…
MODEL TIM-5000
9905-001
BF-5
Key No. PART No. PART NAME Q'ty REMARKS
415 630 001 0220 WASHER 2 BW5
416 411 141 4107 WASHER V 5X10X1 2 FW5
417 411 141 6705 WASHER SPR 5 4 SW5
418 630 000 7749 BOLT,HEX-SCT 2 M5X10
419 411 140 5709 BOLT WING 5X12 2 M5X12 WING
421 411 141 4008 WASHER V 4X9X0.8 8 FW4
423 630 000 7602 BOLT,HEX-SCT 8 M4X6
431 411 119 1909 WASHER V 3X7X0.5 20 FW3 F
432 411 086 4408 WASHER SPR 3 20 SW3 F
433 411 162 1604 SCR PAN 3X20 4 M3X20 PAN
434 630 000 9217 MACHINE SCREW 16 M3X40 PAN
454 630 069 1078 ACCESSORY,P.C.B 16 675BG-11D-454
458 630 049 3771 P.C.B,MOUNT 1 675BB-11D-158
461 630 071 2537 UNIT,I/O 1 675BG-11D-651
462 630 071 2544 UNIT,I/O 3 675BG-11D-652
463 630 069 9791 P.C.B,MOUNT(SDS-DIN) 1 675BG-11D-756
464 630 069 9807 P.C.B,MOUNT(SDS-DOUT) 3 675BG-11D-757
465 630 070 2965 CONNECTOR 4 675BG-11D-655
466 630 070 2972 CONNECTOR 4 675BG-11D-656
471 630 072 0815 CORD 4 675BG-11D-952
474 630 071 2759 BRACKET 1 675BG-11V-074
475 630 071 2766 PLATE 1 675BG-11V-075
476 630 075 1789 HINGE 1 675BG-11V-077
NOTE
MODEL TIM-5000
9905-001
電源部 POWER SUPPLY SECTION

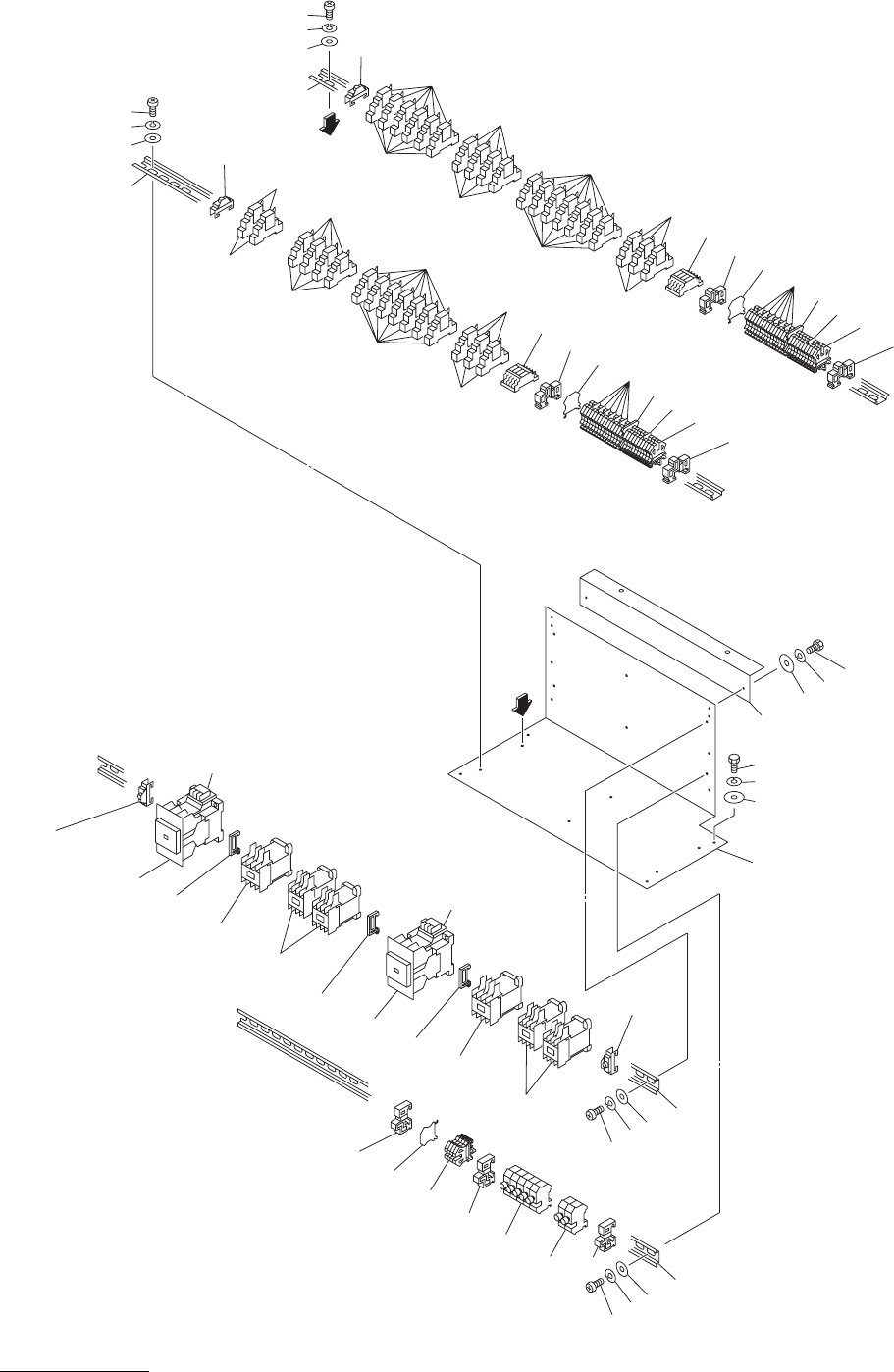

Fig. BF-6電源３ドライバＤＣパネル Power Supply 3 Driver DC Panel
562
563
564
563
560
.
565
575
574
576
562
561
573
572
575
574
A
574
572
562
563
564
563
560
.
565
575
574
576
562
561
573
575
573
572
573
538
537
536
578
572
579
A
579
516
517
518
579
561
562
562
562
570
.
569
578
536
537
538
518
582
517
516
581
578
536
537
538
559
.
558
565
.
560
559
.
557
559
.
557
577
556
556
577
579
555
.
559
569
.
567
555
.
559
559
.
558
577
538
537
536
578
MODEL TIM-5000
9905-001
BF-6
Key No. PART No. PART NAME Q'ty REMARKS
516 630 001 0220 WASHER 8 BW5
517 411 141 6705 WASHER SPR 5 8 SW5
518 630 000 7756 BOLT,HEX-SCT 8 M5X12
536 411 119 2104 WASHERR V 4X9X0.8 12 FW4 F
537 411 008 1706 WASHER SPR 4 12 SW4 F
538 411 043 5004 SPR PAN 4X8 12 M4X8 PAN
555 630 053 8595 EM-CONTACTOR 2 675BH-11D-255
556 630 049 2132 COVER 2 675BH-11D-256
557 630 067 0639 EM-CONTACTOR 2 675BH-11D-257
558 630 053 8588 EM-CONTACTOR 4 675BH-11D-258
559 630 000 1853 COMP,CR 8 675BH-11D-259
560 630 068 9631 TERMINAL 54 675BH-11D-260
561 630 049 3733 ACCESSORY,WIRING 3 675BH-11D-351
562 630 049 3672 BRACKET,WIRING 7 675BH-11D-352
563 630 049 3702 ACCESSORY,WIRING 14 675BH-11D-353
564 630 049 3757 ACCESSORY,WIRING 2 675BH-11D-354
567 630 049 1173 FUSE HOLDER 5 675BH-11D-357
569 423 022 8005 FUSE 250V 1A 5 675BH-11D-359
570 630 069 0156 FUSE HOLDER 2 675BH-11D-360
571 423 027 3500 FUSE 250V0.315A 2 675BH-11D-451
572 630 068 9723 RELAY 22 675BH-11D-452
573 630 049 2064 SOCKET 22 675BH-11D-453
574 630 063 5423 RELAY 14 675BH-11D-454
575 630 063 5430 SOCKET 14 675BH-11D-455
576 630 061 0987 RELAY 2 675BH-11D-456
577 630 000 1273 ACCESSORY,WIRING 3 675BH-11D-457
579 630 000 1051 BRACKET,WIRING 4 675BH-11D-551
581 630 071 6764 BRACKET 1 675BH-11V-171
582 630 071 6689 SUPPORT 1 675BH-11V-172
NOTE
