MODEL TIM-5000 9905-001 BK-1 Key No. PART No. PART NAME Q'ty REMA RKS 30 411 054 6809 NUT HEX 3 6 M3 F 31 411 119 1909 W ASHER V 3X7X 0.5 10 FW 3 F 32 411 086 4408 W ASHER SPR 3 10 SW 3 F 33 411 119 2104 SCR PAN 3X …
MODEL TIM-5000
9905-001
コンベアＢＯＸ部 CONVEYOR BOX SECTION

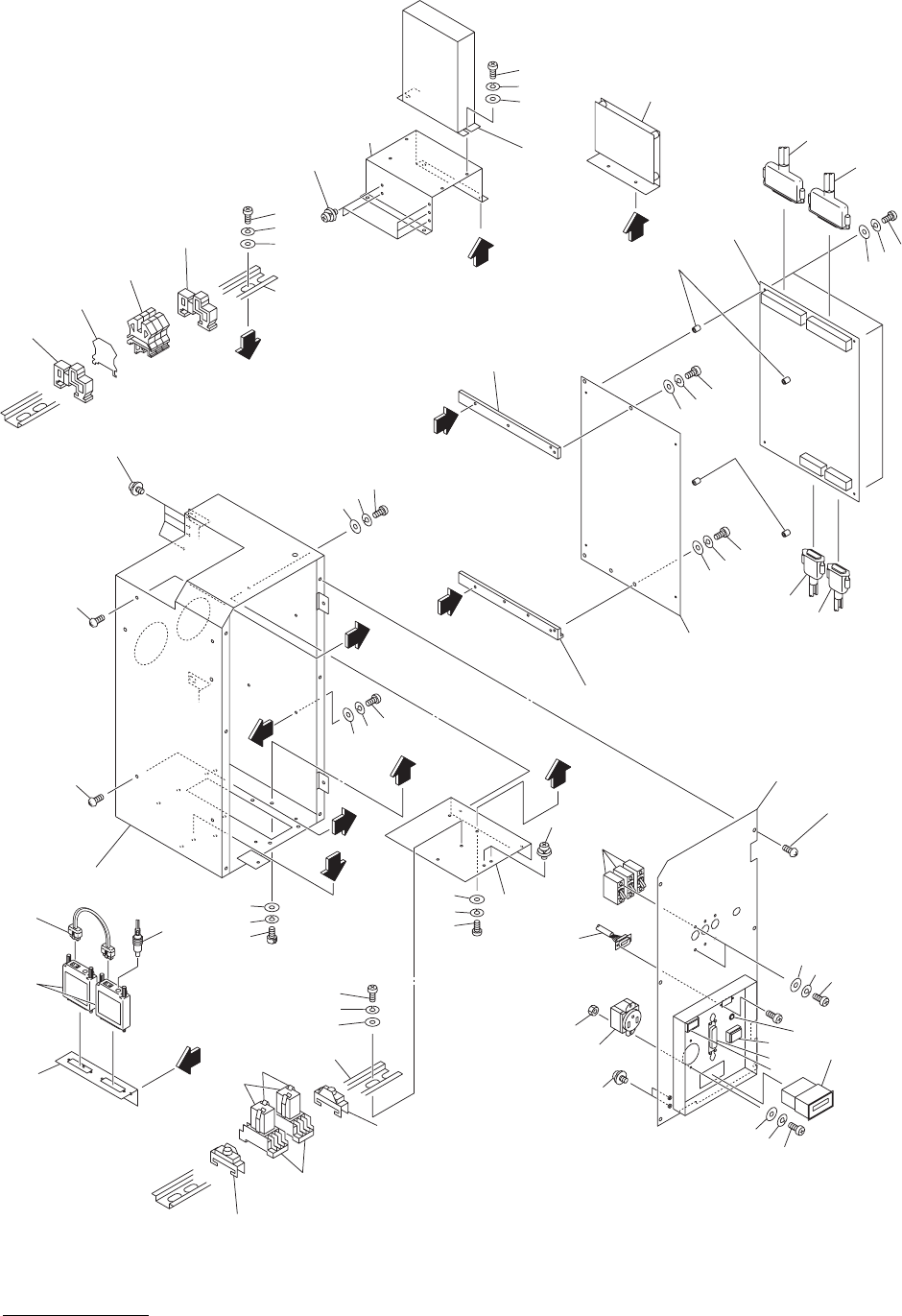

Fig. BK-1コンベア１ ＢＯＸ Conveyor 1 Box
65
36
66
36
37
38
37
38
60
.
.
61
62
.
55
58
89
31
32
33
36
38
37
68
69
74
67
65
51
65
52
31
73
65
54
53
54
53
54
53
88
Key No.65
83
81
82
72
41
51
85
86
84
87
31
45
32
34
63
64
65
30
32
66
36
38
37
31
32
33
77
78
76
75
71
B
B
A
A
30
54
55
56
.
36
66
38
37
See Fig.BP-1
MODEL TIM-5000
9905-001
BK-1
Key No. PART No. PART NAME Q'ty REMARKS
30 411 054 6809 NUT HEX 3 6 M3 F
31 411 119 1909 WASHER V 3X7X0.5 10 FW3 F
32 411 086 4408 WASHER SPR 3 10 SW3 F
33 411 119 2104 SCR PAN 3X10 8 M3X6 PAN
34 411 042 0703 SCR PAN 3X8 2 M3X8 PAN
36 411 119 2104 WASHER V 4X9X0.8 11 FW4 F
37 41 108 1706 WASHER SPR 4 11 SW4 F
38 411 043 5004 SCR PAN 4X8 11 M4X8 PAN
41 411 113 9109 SCR TRS 5X10 6 M5X10 TRS
45 411 141 7807 SCR PAN+SW+W 4X10 2
51 630 069 4857 UNIT,DRIVER 3 675BK-11D-051
52 630 045 4260 SOCKET 6 675BK-11D-456
53 630 049 2125 RELAY 6 675BK-11D-455
54 630 000 1020 BRACKET,WIRING 16 675BK-11D-054
55 630 007 3584 RELAY 2 675BK-11D-055
56 630 049 2071 SOCKET 2 675BK-11D-056
58 630 000 1853 COMP,CR 2 675BK-11D-058
60 630 049 1173 FUSE HOLDER 3 675BK-11D-060
61 630 059 6632 ACCESSORY,WIRING 1 675BK-11D-151
62 423 022 8302 FUSE 250V 5A 3 675BK-11D-152
63 630 049 3672 BRACKET,WIRING 1 675BK-11D-251
64 630 057 4326 TERMINAL 1 675BK-11D-255
65 630 000 1051 BRACKET,WIRING 5 675BK-11D-460
67 630 057 0694 UNIT,I/O 1 675BK-11D-257
68 630 069 1078 ACCESSORY,P.C.B 4 675BK-11D-452
69 630 071 2568 UNIT,I/O 1 675BK-11D-359
71 630 076 8565 BOX 1 675BK-11V-071
72 630 076 8534 PANEL 1 675BK-11V-072
73 630 070 6437 BRACKET 1 675BK-11V-073
74 630 036 4736 MECH PARTS 4 675BK-11V-074
75 630 071 6788 BRACKET 1 675BK-11V-172
76 630 066 8513 CONNECTOR 1 675BK-11D-260
77 630 056 9537 CORD 1 675BK-11D-351
78 630 057 3954 CORD 1 675BK-11D-352
81 630 060 5730 SWITCH,SELECTOR 1 675BK-11D-355
82 630 069 4871 SWITCH,SELECTOR 1 675BK-11D-157
83 630 069 4888 COUNTER 1 675BK-11D-158
84 630 000 2744 SWITCH,BUTTON 1 675BK-11D-259
85 407 035 4704 LED SLP-721F 1 675BK-11D-353
86 401 008 1707 CARBON 1.8K JB 1/2W 1 675BK-11D-354
87 630 072 0204 CORD 1 675BK-11D-951
88 630 076 0644 SWITCH,SEESAW 1 675BK-11D-358
89 630 000 4243 SOCKET 1 675VC-11D-051
