MODEL TIM-5000 9905-001 操作ボックス部 OPERA TION BOX SECTION Fig. BM-1 操作パネル（前･後） Operation Panel (Front/Rear) 63 55 56 57 . 57 56 . 62 61 . 59 57 . 52 53 54 . . 60 58 64 65 . 59 56 57 . 68 69 71 6 8 7 51 See Fig.G-1 Key No.1 …
MEMO
MODEL TIM-5000
9905-001
操作ボックス部 OPERATION BOX SECTION

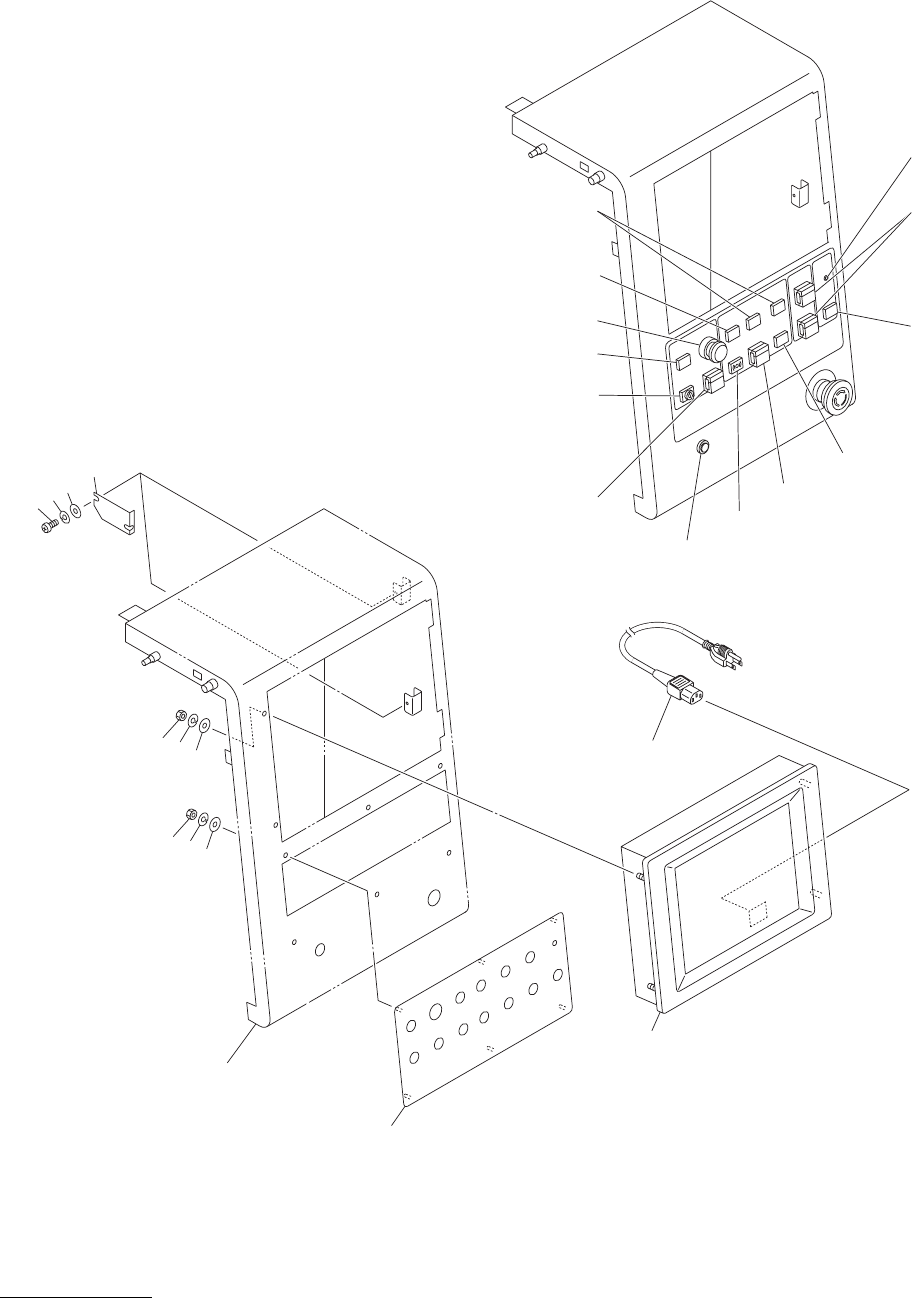

Fig. BM-1操作パネル（前･後） Operation Panel (Front/Rear)
63
55
5657
.
5756
.
6261
.
5957
.
525354
..
60
58
64
65
.
59
56
57
.
68
69
71
6
8
7
51
See Fig.G-1
Key No.1
21
26
21
72
24
22
22
MODEL TIM-5000
9905-001
BM-1
Key No. PART No. PART NAME Q'ty REMARKS
6 411 119 2104 WASHER V 4X9X0.8 12 FW 4
7 411 008 1706 WASHER SPR 4 12 SW 4
8 411 141 0307 NUT HEX 4 12 M4
21 411 119 2104 WASHER V 4X9X0.8 8 FW4 F
22 411 008 1700 WASHER SPR 4 8 SW4 F
24 411 042 3001 SCR PAN 4X10 4 M4X10 PAN
26 411 054 8506 NUT HEX 4 4 M4 F
51 630 068 6432 UNIT,DISPLAY 2 675BM-11D-051
52 630 033 4609 SWITCH,BUTTON 2 675BM-11D-052
53 630 033 4586 DISPLAY ELEMENT 2 675BM-11D-053
54 630 033 4593 ACESSORY,SW 2 675BM-11D-054
55 630 066 7042 SWITCH,BUTTON 2 675BM-11D-055
56 630 000 2713 SWITCH,BUTTON 8 675BM-11D-056
57 630 000 0382 ACCESSORY,SW 10 675BM-11D-057
58 630 000 2515 SWITCH,BUTTON 4 675BM-11D-058
59 630 007 6066 SWITCH,BUTTON 4 675BM-11D-059
60 630 000 2744 SWITCH,BUTTON 2 675BM-11D-060
61 407 035 4704 LED SLP-721F 2 675BM-11D-061
62 401 008 1707 CARBON 2 675BM-11D-062
63 630 000 3130 SWITCH,SELECTOR 2 675BM-11D-063
64 630 035 0074 BUZZER 2 675BM-11D-064
65 407 139 6505 VARISTOR TNR9G470K 2 675BM-11D-065
68 630 070 3009 LAMP 2 675BB-11D-458
69 630 060 0896 CORD 2 675BB-11D-765
71 630 073 6243 PANEL 2 675BM-11V-171
72 630 075 7811 BRACKET 2 675BM-11V-172
