MODEL TIM-5000 9905-001 前後工程Ｉ / Ｆ PREVIOUS/NEXT WORK PROCESS I/F Fig. BR-1 電源４ＢＯＸ底面 Power Supply 4 Box Lower 53 56 36 36 57 58 59 36 31 32 33 31 32 35 54 See Fig.BF-5 61 62 32 34 63
MODEL TIM-5000
9905-001
BQ-2
Key No. PART No. PART NAME Q'ty REMARKS
151 630 071 9970 CORD 1 675BQ-11D-151
152 630 071 9987 CORD 1 675BQ-11D-152
153 630 077 3583 CORD 1 675BQ-11D-153
154 630 077 3606 CORD 1 675BQ-11D-154
155 630 077 3620 CORD 1 675BQ-11D-155
156 630 077 3644 CORD 1 675BQ-11D-156
157 630 075 2991 CORD 1 675BQ-11D-157
158 630 075 3004 CORD 1 675BQ-11D-158
159 630 048 2423 CORD 2 675BQ-11D-159
163 630 075 2953 CORD 1 675BQ-11D-063
164 630 075 2960 CORD 1 675BQ-11D-064
165 630 070 7427 CORD 1 675BQ-11D-065
166 630 075 2786 CORD 1 675BQ-11D-066
167 630 075 2977 CORD 1 675BQ-11D-067
168 630 075 2793 CORD 1 675BQ-11D-068
169 630 075 2984 CORD 1 675BQ-11D-069
170 630 075 4193 CORD 1 675BQ-11D-070
171 630 075 2816 CORD 1 675BQ-11D-251
172 630 075 2830 CORD 1 675BQ-11D-351
173 630 075 2847 CORD 1 675BQ-11D-352
174 630 075 2854 CORD 1 675BQ-11D-353
175 630 075 2861 CORD 1 675BQ-11D-354
NOTE
MODEL TIM-5000
9905-001
前後工程Ｉ/Ｆ PREVIOUS/NEXT WORK PROCESS I/F

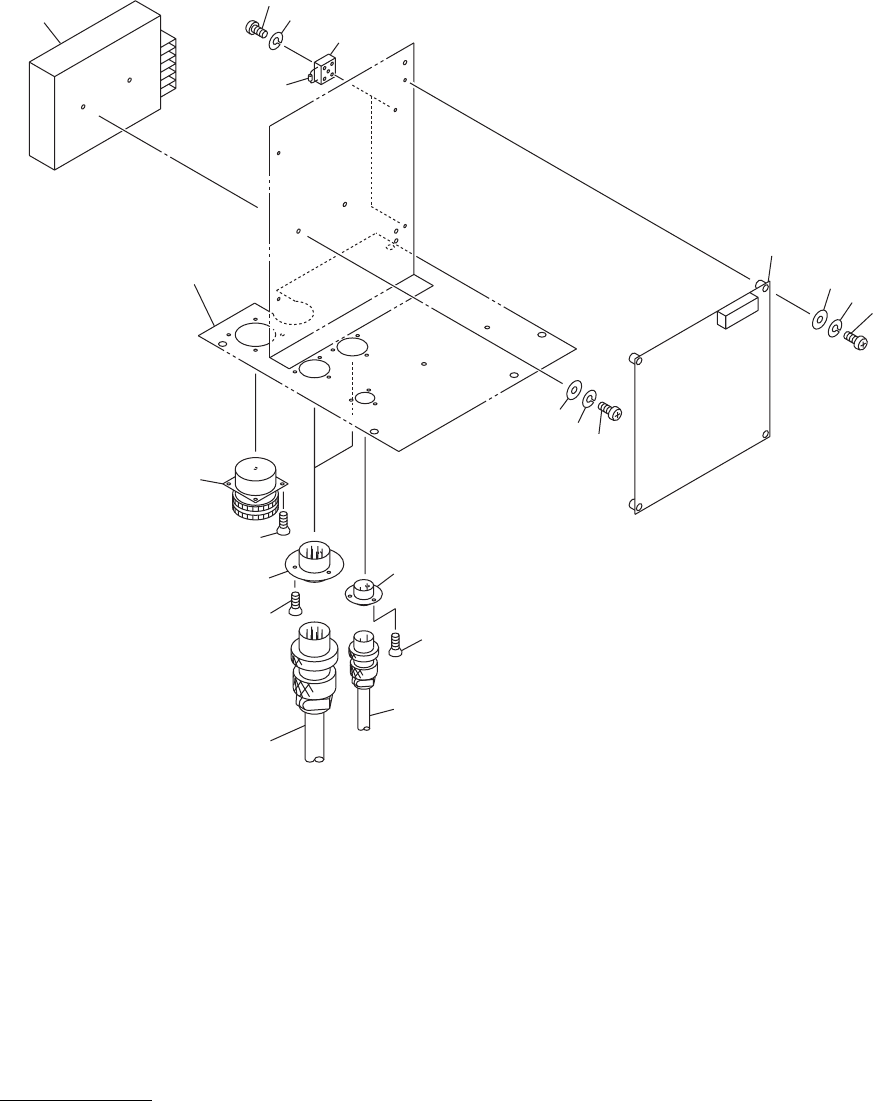

Fig. BR-1電源４ＢＯＸ底面 Power Supply 4 Box Lower
53
56
36
36
57
58
59
36
31
32
33
31
32
35
54
See Fig.BF-5
61
62
32
34
63
MODEL TIM-5000
9905-001
BR-1
Key No. PART No. PART NAME Q'ty REMARKS
31 411 119 1909 WASHER V 3X7X0.5 6 FW3 F
32 411 086 4408 WASHER SPR 3 7 SW3 F
33 411 042 0703 SCR PAN 3X8 2 M3X8 PAN
34 411 113 0700 SCR PAN 3X16 1 M3X16 PAN
35 411 162 1604 SCR PAN 3X20 4 M3X20 PAN
36 411 034 7208 SCR FLT 3X8 13 M3X8 FLT
53 630 055 2201 UNIT,POWER 1 675UC-11D-053
54 630 054 8778 CONNECTOR 1 675UC-11D-054
56 630 000 3963 CONNECTOR 2 675UC-11D-056
57 630 000 3970 CONNECTOR 2 675UC-11D-057
58 630 004 6281 CONNECTOR 1 675UC-11D-058
59 630 004 6267 CONNECTOR 1 675UC-11D-059
61 630 051 1819 TERMINAL 1 675UC-11D-060
62 407 005 1306 DIODE DS135C 1 675UC-11D-062
63 603 062 4793 P.C.B,MOUNT(I/F) 1 675UC-11U-154
NOTE
