MODEL TIM-5000 9905-001 B-6 Key No. PART No. PART NAME Q'ty REMA RKS 501 630 075 2496 BLOCK 1 502 630 075 2502 PLATE 1 503 630 075 2519 BRACKET 2 504 630 075 2526 SHAFT 2 505 630 075 2533 PLATE 1 506 630 002 2599 SP…
MODEL TIM-5000
9905-001
ベースフレーム部 BASE FRAME SECTION
Fig. B-6 治具ステージ Jig Stage
575
570
501
506
505
571
572
573
593
503
509
503
593
508
507
571
572
574
504
566
567
568
502
510
See Fig.N-9
Key No.805
504
566
567
568
MODEL TIM-5000
9905-001
B-6
Key No. PART No. PART NAME Q'ty REMARKS
501 630 075 2496 BLOCK 1
502 630 075 2502 PLATE 1
503 630 075 2519 BRACKET 2
504 630 075 2526 SHAFT 2
505 630 075 2533 PLATE 1
506 630 002 2599 SPRING,COMP 1
507 630 075 2540 PLATE 1
508 630 075 2557 PLATE 1
509 630 075 2564 PLATE 1
510 630 074 0066 LIGHTING UNIT 1 675BB-11D-959
566 411 141 4107 WASHER V 5X10X1 2 FW5
567 411 141 6705 WASHER SPR 5 2 SW5
568 630 000 7824 BOLT,HEX-SCT 2 M5X45
570 411 141 5906 WASHER F 4X8X0.8 2 FWS4
571 411 141 4008 WASHER V 4X9X0.8 6 FW4
572 411 141 2905 WASHER SPR 4 6 SW4
573 630 000 7626 BOLT,HEX-SCT 2 M4X10
574 630 000 7633 BOLT,HEX-SCT 4 M4X12
575 630 000 7657 BOLT,HEX-SCT 2 M4X16
593 411 050 5004 SCR TRS 3X6 4 M3X6 TRS
NOTE
MODEL TIM-5000
9905-001

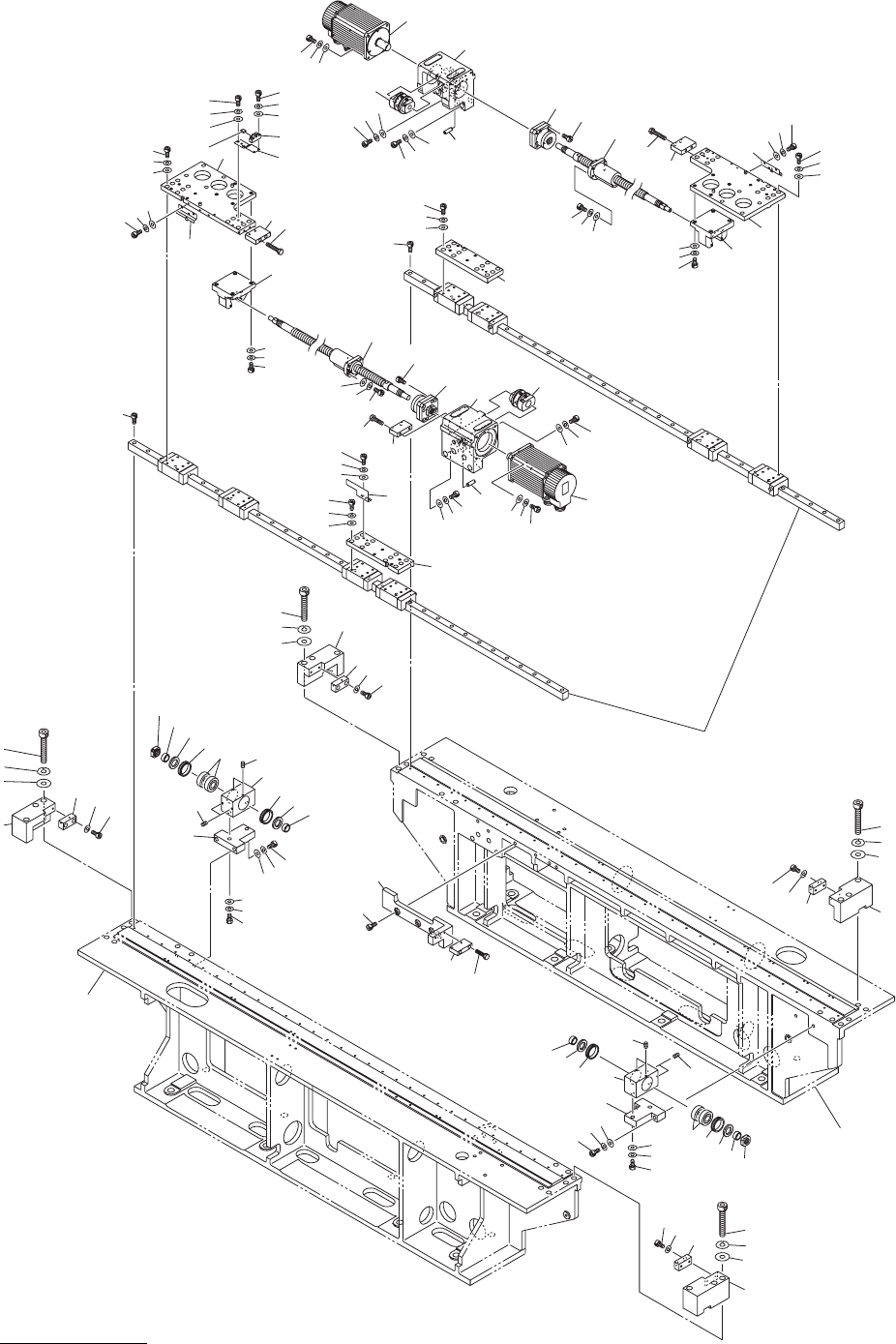

２ビームＸＹ部 2-BEAM XY SECTION
Fig. C-1 Ｙ軸部 Y Axis Section
Sheet-1
53
52
51
5
6
99
26
7
25
8
24
99
8
25
7
17
18
69
70
60
19
93
16
49
18
20
69
70
59
58
90
91
92
53
52
51
24
8
25
7
26
7
25
8
5
6
90
91
92
58
21
9
15
48
2
59
60
70
69
18
53
52
51
20
66
67
64
67
63
2
27
65
64
63
58
59
62
66
64
63
67
1
3
9
68
72
69
1
68
69
72
67
18
69
28
4
23
65
22
34
51
52
54
55
56
57
48
15
See Fig.B-1
Key No.2
See Fig.B-1
Key No.3
70
64
63
64
63
65
64
63
99
99
16
49
13
58
59
62
3
22
23
65
63
65
64
4
27
55
56
57
28
34
63
64
65
54
52
51
72
69
68
71
69
68
31
83
82
30
14
81
53
52
51
17
