MODEL TIM-5000 9905-001 2 ビームＸＹ部 2-BEAM XY SECTION Fig. C-6 ボールネジカバー Ball Screw Cover See Fig.B-1 Key No.2 See Fig.B-1 Key No.3 566 567 568 568 501 567 566 502
MODEL TIM-5000
9905-001
C-5
Key No. PART No. PART NAME Q'ty REMARKS
401 630 073 8957 PLATE 2
402 630 073 8964 PLATE 2
403 630 074 2701 PLATE 2
405 630 074 2657 BRACKET 2
406 630 074 2718 COVER 2
407 630 076 3454 COVER 2
408 630 074 2664 PLATE 2
409 630 069 9753 BRACKET 2
410 630 074 2688 BRACKET 2
411 630 005 2732 AIR LINE EQPT 2
412 630 069 9876 SOLENOID VALVE 2
413 630 074 2671 BRACKET 2
414 630 070 1142 COVER 2
415 630 070 1753 ACCESSORY,P.C.B 8
416 630 070 1760 ACCESSORY,P.C.B 8
419 630 051 9556 AIR LINE EQPT 2
420 630 071 0861 PLATE 2 675B--11B-015
421 630 071 5200 COVER 2 675B--11B-016
451 630 053 1664 UNIT,DRIVER 4 675CB11D-251
452 630 078 6927 P.C.B,MOUNT(PMD-MOTHER) 2 675CB11U-051
453 630 074 5122 P.C.B,MOUNT(SDS-DIN) 4 675CB11U-253
454 630 083 2341 P.C.B,MOUNT(DD CONVERTER) 2
457 630 069 1061 ACCESSORY,P.C.B 8 675CB11D-357
458 630 063 0181 ACCESSORY,P.C.B 8 675CB11D-358
459 630 076 3492 COVER 2 675CB11V-171
466 411 141 4107 WASHER V 5X10X1 28 FW5
467 411 141 6705 WASHER SPR 5 28 SW5
468 630 000 7763 BOLT,HEX-SCT 16 M5X16
469 630 000 7756 BOLT,HEX-SCT 12 M5X12
471 411 141 4008 WASHER V 4X9X0.8 68 FW4
472 411 141 2905 WASHER SPR 4 68 SW4
473 630 000 7626 BOLT,HEX-SCT 48 M4X10
474 630 000 7633 BOLT,HEX-SCT 8 M4X12
475 630 000 7619 BOLT,HEX-SCT 4 M4X8
476 630 037 6968 BOLT,HEX-SCT 8 M4X50
481 411 119 1909 WASHER V 3X7X0.5 8 FW3 F
482 411 086 4408 WASHER SPR 3 8 SW3 F
483 411 041 8908 SCR PAN 3X6 8 M3X6 PAN
486 411 119 2104 WASHER V 4X9X0.8 14 FW4 F
487 411 008 1706 WASHER SPR 4 14 SW4 F
488 411 162 1505 SCR PAN 4X20 4 M4X20 PAN
489 411 042 3001 SCR PAN 4X10 10 M4X10 PAN
494 411 113 7501 SCR TRS 4X10 8 M4X10 TRS
495 411 113 9109 SCR TRS 5X10 12 M5X10 TRS
NOTE
MODEL TIM-5000
9905-001

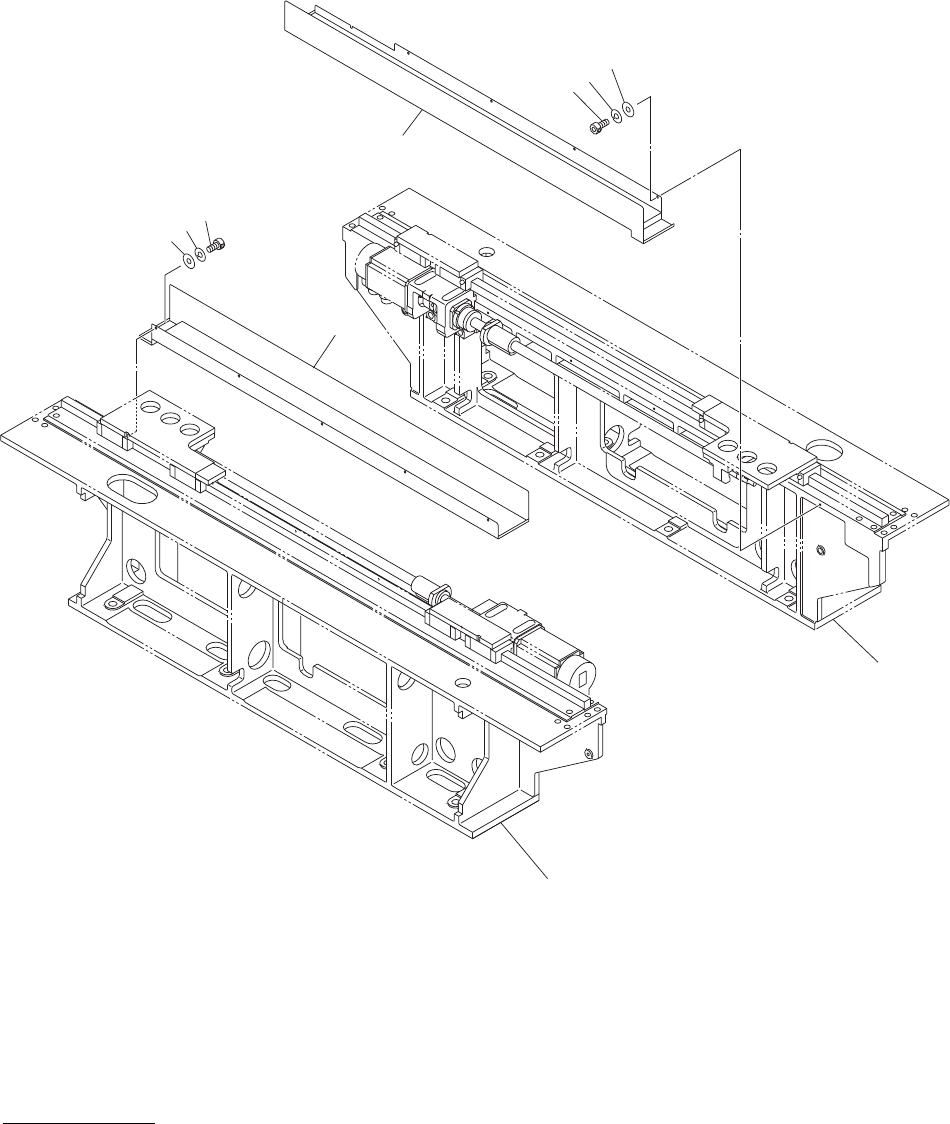

2 ビームＸＹ部 2-BEAM XY SECTION
Fig. C-6 ボールネジカバー Ball Screw Cover
See Fig.B-1
Key No.2
See Fig.B-1
Key No.3
566
567
568
568
501
567
566
502
MODEL TIM-5000
9905-001
C-6
Key No. PART No. PART NAME Q'ty REMARKS
501 630 069 0071 COVER(L) 1
502 630 076 8992 COVER 1
566 411 141 4107 WASHER V 5X10X1 10 FW5
567 411 141 6705 WASHER SPR 5 10 SW5
568 630 000 7732 BOLT,HEX-SCT 10 M5X8
NOTE
