MODEL TIM-5000 9905-001 ノズルストッカ部 NOZZLE ST OCKER SECTION Fig. F-1 ノズルスッカ Nozzle Stocker 68 67 66 80 30 14 77 76 29 73 72 71 73 72 71 73 72 71 74 72 71 16 16 24 1 18 80 77 76 27 73 72 76 77 78 71 76 77 7 78 73 72 71 73 72…
MODEL TIM-5000
9905-001
E- 1
Key No. PART No. PART NAME Q'ty REMARKS
1 630 070 1043 FRAME 1
2 630 070 1050 COVER 1
3 630 070 1067 COVER 1
4 630 070 1074 COVER 1
5 630 055 2195 VACUUM PUMP 1
5 -10 630 031 8593 AIR LINE EQPT (FILTER) 1
5 -11 630 012 1230 AIR LINE EQPT (FLT ELEM) 1
5 -20 630 055 2171 VACUUM PARTS 1
6 630 003 6787 MECH PARTS (RUBBER DUMPER) 4
7 630 058 0648 CASTER 4
8 630 034 9290 PIPE FITTINGS 1
9 630 058 4752 PIPE FITTINGS 1
10 630 058 4738 PIPE FITTINGS 1
11 630 055 3437 NAME PLATE,PARTS 1
12 630 001 0220 WASHER 2
13 630 003 8224 PIPE FITTINGS 4
14 630 003 8231 PIPE FITTINGS 1
15 630 003 8248 PIPE FITTINGS 1
16 630 003 8088 PIPE FITTINGS 1
17 630 003 8187 PIPE FITTINGS 1
18 630 003 7845 PIPE FITTINGS 1
19 630 003 8187 PIPE FITTINGS 1
20 630 003 8033 PIPE FITTINGS 1
21 630 003 7388 PIPE FITTINGS 1
51 630 062 5196 CORD 1
56 411 141 4503 WASHER V 8X17X1.6 4 FW8
57 411 141 3100 WASHER SPR 8 4 SW8
58 411 141 0901 NUT HEX 8 4 M8
61 411 141 4305 WASHER V 6X12.5X1.6 8 FW6
62 411 141 3001 WASHER SPR 6 8 SW6
63 630 000 7879 BOLT,HEX-SCT 8 M6X12
67 411 141 6705 WASHER SPR 5 18 SW5
68 630 000 7756 BOLT,HEX-SCT 16 M5X12
69 630 000 7770 BOLT,HEX-SCT 2 M5X20
91 411 140 8007 SCR TRS 5X6 14 M5X6 TRS
NOTE
MODEL TIM-5000
9905-001

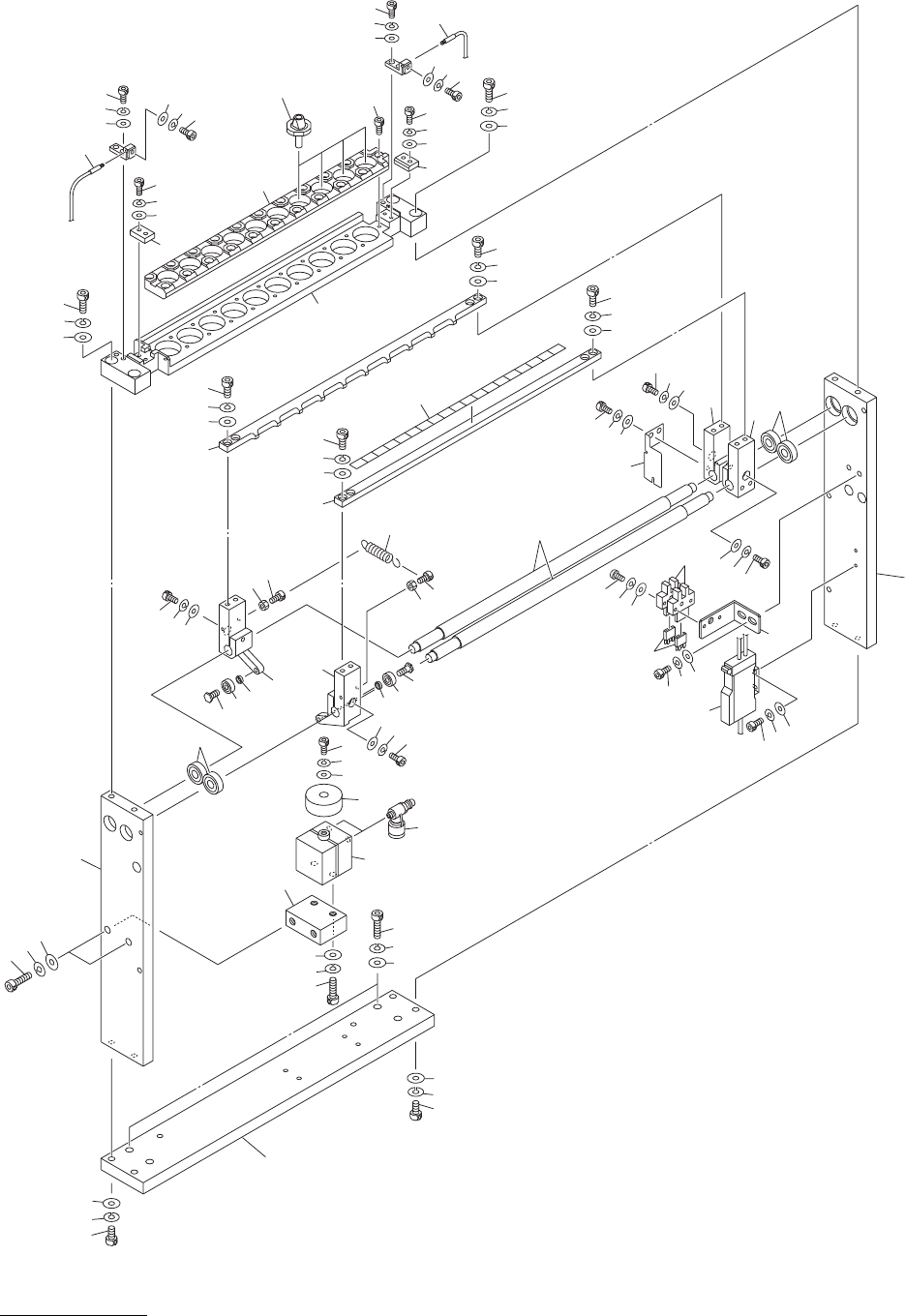

ノズルストッカ部 NOZZLE STOCKER SECTION
Fig. F-1 ノズルスッカ Nozzle Stocker
68
67
66
80
30
14
77
76
29
73
72
71
73
72
71
73
72
71
74
72
71
16
16
24
1
18
80
77
76
27
73
72
76
77
78
71
76
77
7
78
73
72
71
73
72
71
26
73
10
79
81
79
81
72
71
25
28
17
68
67
66
7
73
72
71
11
22
61
62
63
15
15
12
2
71
72
74
71
12
11
2
72
73
88
87
86
6
66
21
68
67
5
86
89
8
87
1
70
67
66
63
62
61
66
67
69
61
62
63
66
67
69
19
4
3
20
23
82
VACUUM NOZZLE
31,32,33,34
MODEL TIM-5000
9905-001
F- 1 2 unit/1 machine
Key No. PART No. PART NAME Q'ty REMARKS
1 630 006 9433 BEARING,RADIAL 4
2 630 001 1838 BEARING,RADIAL 2
3 630 069 8183 CYLINDER 1
4 630 003 5162 AIR LINE EQPT 2
5 630 000 0245 SENSOR,PHOTO 2
6 630 000 0269 SENSOR,PHOTO(CONNECTOR) 2
7 630 069 8220 SENSOR,PELEC 1
8 630 069 8237 SENSOR,PELEC 1
10 630 002 9260 SPRING,TENSION 1
11 630 071 2292 BOLT,HEX 2
12 630 069 7810 COLLAR 2
13 630 069 7575 BLOCK 2
14 630 078 5951 PLATE 1
15 630 073 8759 LEVER(L) 2
16 630 073 8766 LEVER(R) 2
17 630 069 7599 SHAFT 2
18 630 069 7766 PLATE 1
19 630 069 7568 PLATE 1
20 630 069 7551 PLATE 1
21 630 073 8711 BRACKET 1
22 630 073 8735 PLTE(L) 1
23 630 074 8741 PLTE(BASE) 1
24 630 073 8728 PLATE(R) 1
25 630 071 2278 PLATE 1
26 630 071 2285 PLATE 1
27 630 073 8704 PLATE 1
28 630 076 5076 NAME PLATE,INDEX 1
29 630 078 4640 PLATE 1
30 630 078 4657 PLATE 1
31 630 075 9334 ASSY,NOZZLE 1 675SA-110-001
32 630 075 9341 ASSY,NOZZLE 1 675SA-110-002
33 630 075 9358 ASSY,NOZZLE 1 675SA-110-003
34 630 075 9365 ASSY,NOZZLE 1 675SA-110-004
61 411 141 4305 WASHER V 6X12.5X1.6 8 FW6
62 411 141 3001 WASHER SPR 6 8 SW6
63 630 000 7909 BOLT,HEX-SCT 8 M6X25
66 411 141 4107 WASHER V 5X10X1 11 FW5
67 411 141 6705 WASHER SPR 5 11 SW5
68 630 000 7770 BOLT,HEX-SCT 4 M5X20
69 630 000 7763 BOLT,HEX-SCT 4 M5X16
70 630 000 7756 BOLT,HEX-SCT 3 M5X12
71 411 141 4008 WASHER V 4X9X0.8 18 FW4
72 411 141 2905 WASHER SPR 4 18 SW4
73 630 000 7626 BOLT,HEX-SCT 14 M4X10
74 630 000 7657 BOLT,HEX-SCT 4 M4X16
76 411 141 3902 WASHER V 3X7X0.5 6 FW3
77 411 141 2806 WASHER SPR 3 6 SW3
78 630 000 7510 BOLT,HEX-SCT 2 M3X8
79 630 000 7558 BOLT,HEX-SCT 2 M3X16
80 630 000 7534 BOLT,HEX-SCT 4 M3X12
NOTE
