MODEL TIM-5000 9905-001 MB-4 Key No. PART No. PART NAME Q'ty REMA RKS 301 630 000 0245 SENSOR,PHOT O 7 302 630 000 0269 SENSOR,PHOT O(C0NNECTOR ) 7 303 630 076 3836 BRACKET 1 675MB-11B-708 304 630 074 0981 PLATE 1 6…
MODEL TIM-5000
9905-001
異形ヘッドＬ部 DEFORM HAED L SECTION

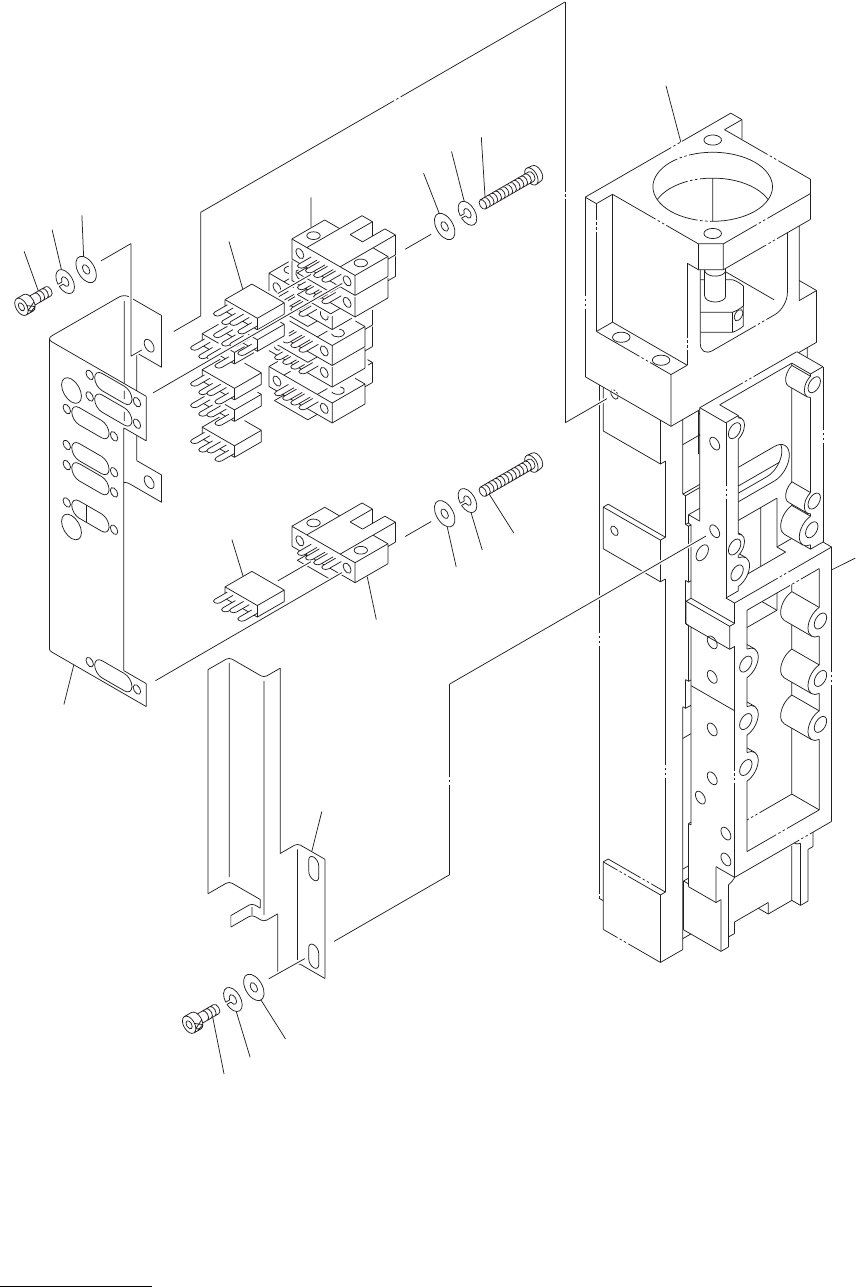

Fig. MB-4Ｌ軸レベル検出部 L Axis Level Detector
376
377
378
303
See Fig.MB-1
Key No.1
See Fig.MB-3
Key No.201
388
387
386
388
387
386
301
302
376
377
378
304
301
302
MODEL TIM-5000
9905-001
MB-4
Key No. PART No. PART NAME Q'ty REMARKS
301 630 000 0245 SENSOR,PHOTO 7
302 630 000 0269 SENSOR,PHOTO(C0NNECTOR) 7
303 630 076 3836 BRACKET 1 675MB-11B-708
304 630 074 0981 PLATE 1 675MB-11B-707
376 411 141 3902 WASHER V 3X7X0.5 4 FW3
377 411 141 2806 WASHER SPR 3 4 SW3
378 630 000 7510 BOLT,HEX-SCT 4 M3X8
386 411 119 1909 WASHER V 3X7X0.5 14 FW3 F
387 411 086 4408 WASHER SPR 3 14 SW3 F
388 411 162 1604 SCR PAN 3X20 14 M3X20 PAN
NOTE
2 unit/1 machine
MODEL TIM-5000
9905-001
異形ヘッドＬ部 DEFORM HAED L SECTION

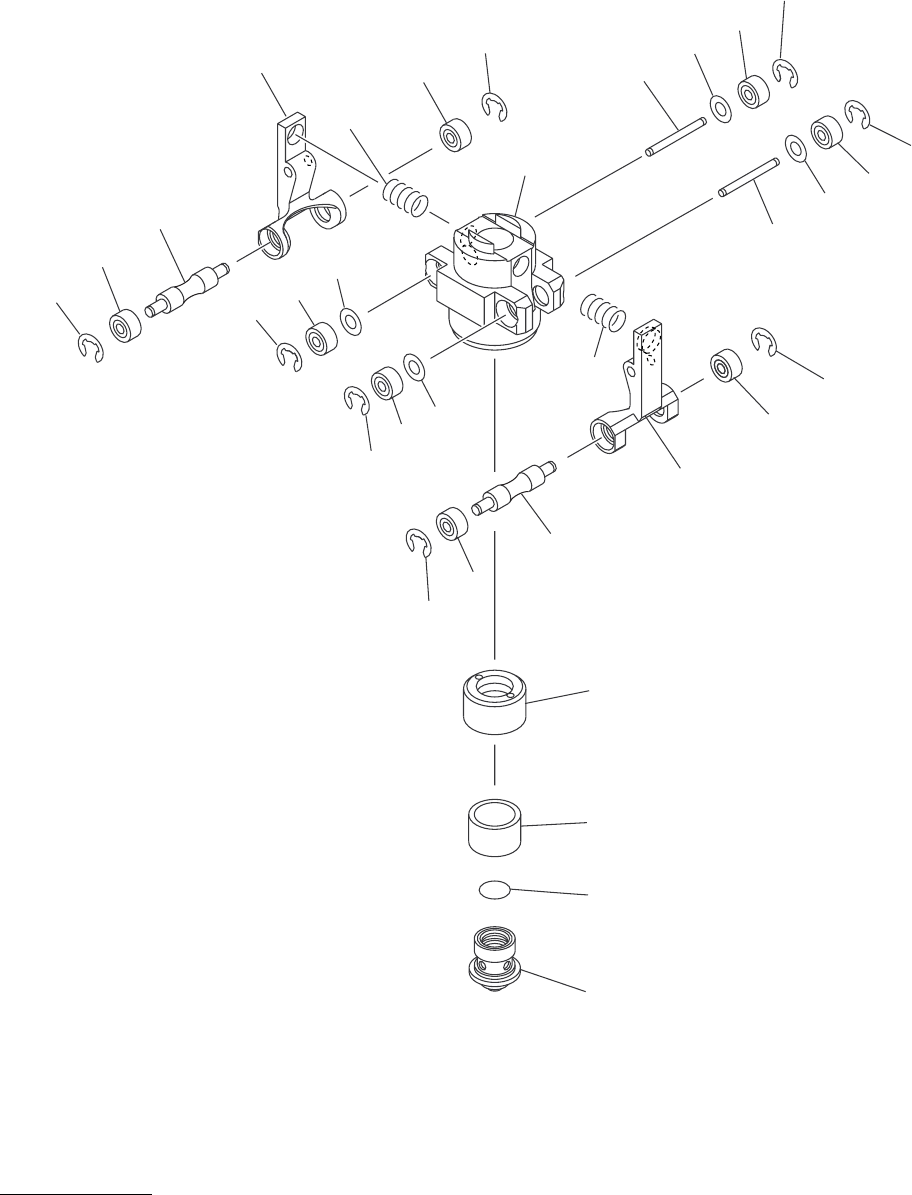

Fig. MB-5ノズルクランプ部 Nozzle Cramp Section
409
410
402
405
410
406
412
411
407
409
408
409
410
408
409
410
405
409
410
402
409
403
401
403
404
408
409
410
404
408
409
410
410
