MODEL TIM-5000 9905-001 異形ヘッドＲ部 DEFORM HAED R SECTION Fig. MC-1 Ｌ軸駆動ユニット L Axis Driver Unit 3 4 2 3 2 1 71 72 73 1 5 76 77 78
MODEL TIM-5000
9905-001
MB-9
Key No. PART No. PART NAME Q'ty REMARKS
804 630 068 4742 BRACKET 1 675MB-11B-704
807 630 069 0552 SWITCH,PRESSURE 1 675MB-11H-207
808 630 003 7302 PIPE FITTINGS 1 675MB-11H-208
809 630 068 8047 BLOCK 1 675MB-11H-709
810 630 069 5076 TUBE 1 675MB-11H-710
812 630 003 6985 PIPE FITTINGS 2
871 411 141 4008 WASHER V 4X9X0.8 8 FW4
872 411 141 2905 WASHER SPR 4 8 SW4
873 630 000 7626 BOLT,HEX-SCT 1 M4X10
874 630 000 7633 BOLT,HEX-SCT 3 M4X12
875 630 000 7688 BOLT,HEX-SCT 4 M4X30
878 630 000 7558 BOLT,HEX-SCT 1 M3X16
879 630 000 7541 BOLT,HEX-SCT 1 M3X14
NOTE
2 unit/1 machine
MODEL TIM-5000
9905-001
異形ヘッドＲ部 DEFORM HAED R SECTION

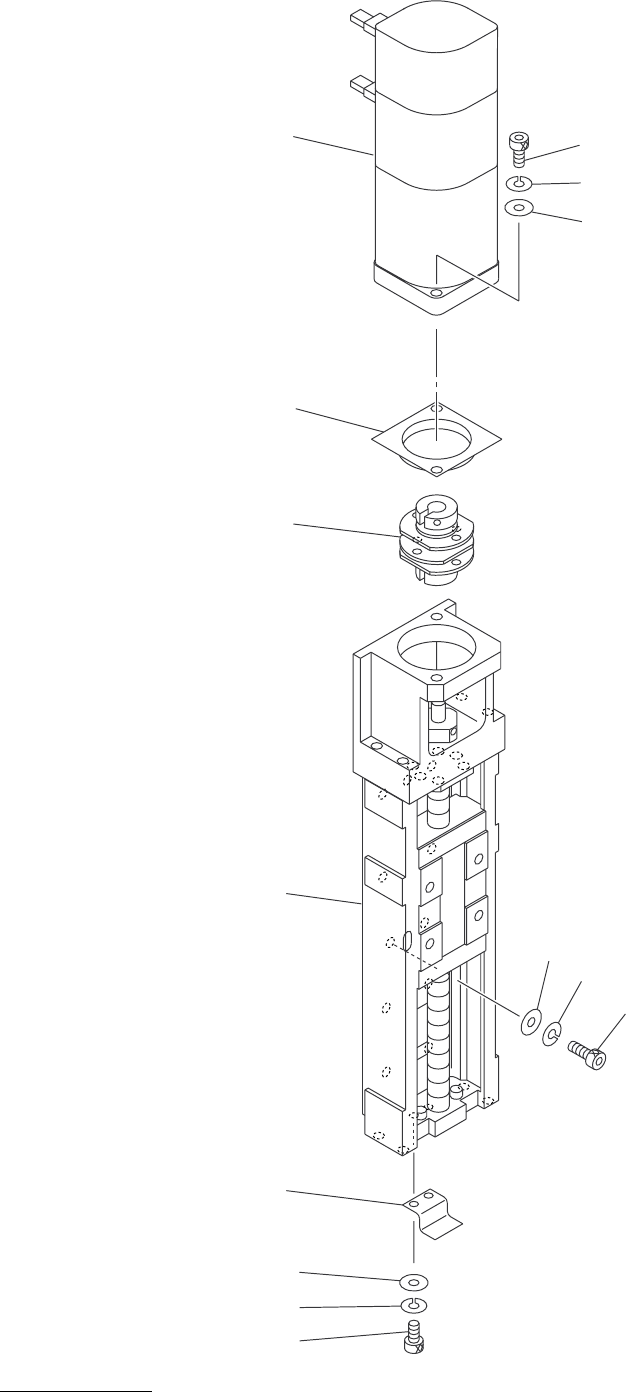

Fig. MC-1Ｌ軸駆動ユニット L Axis Driver Unit
3
4
2
3
2
1
71
72
73
1
5
76
77
78
MODEL TIM-5000
9905-001
MC-1
Key No. PART No. PART NAME Q'ty REMARKS
1 630 068 6425 GUIDE,LINEAR 1
2 630 032 7267 COUPLING 1
3 630 069 0255 MOTOR,AC-SERVO 1
4 630 048 4762 SPACER 1
5 630 074 0950 COVER 1
71 411 141 4008 WASHER V 4X9X0.8 8 FW4
72 411 141 2905 WASHER SPR 4 8 SW4
73 630 000 7633 BOLT,HEX-SCT 6 M4X12
74 630 000 7657 BOLT,HEX-SCT 2 M4X16
76 411 141 3902 WASHER V 3X7X0.5 2 FW3
77 411 141 2806 WASHER SPR 3 2 SW3
78 630 000 7510 BOLT,HEX-SCT 2 M3X8
NOTE
2 unit/1 machine
