MODEL TIM-5000 9905-001 異形ヘッドＲ部 DEFORM HAED R SECTION Fig. MC-4 Ｌ軸レベル検出部 L Axis Level Detector See Fig.MC-1 Key No.1 See Fig.MC-3 Key No.201 376 388 387 386 301 302 301 302 303 376 377 378 304 377 378
MODEL TIM-5000
9905-001
MC-3
Key No. PART No. PART NAME Q'ty REMARKS
201 630 068 4148 FRAME 1
202 630 071 3701 SHAFT 1
203 630 068 4711 BLOCK 1
204 630 068 4704 PLATE 1
205 630 002 3657 SPRING,COMP 1
210 630 069 0262 SEAL 1
211 630 068 5435 BRACKET 1
212 630 069 0514 SENSOR,PROXIMITY 1
213 630 069 0521 SENSOR,PROXIMITY 1
214 411 062 6402 SCR SET HEX-SCT 3X3 2
215 630 068 5473 BRACKET 1 675MC-11B-805
216 630 068 5459 BRACKET 1 675MC-11B-806
266 411 141 4107 WASHER V 5X10X1 6 FW5
267 411 141 6705 WASHER SPR 5 6 SW5
268 630 000 7770 BOLT,HEX-SCT 2 M5X20
269 630 000 7787 BOLT,HEX-SCT 2 M5X25
270 630 000 7800 BOLT,HEX-SCT 2 M5X35
271 411 141 4008 WASHER V 4X9X0.8 2 FW4
272 411 141 2905 WASHER SPR 4 2 SW4
273 630 000 7626 BOLT,HEX-SCT 2 M4X10
276 411 141 3902 WASHER V 3X7X0.5 6 FW3
277 411 141 2806 WASHER SPR 3 6 SW3
278 630 000 7527 BOLT,HEX-SCT 4 M3X10
279 630 000 7510 BOLT,HEX-SCT 2 M3X8
NOTE
2 unit/1 machine
MODEL TIM-5000
9905-001
異形ヘッドＲ部 DEFORM HAED R SECTION

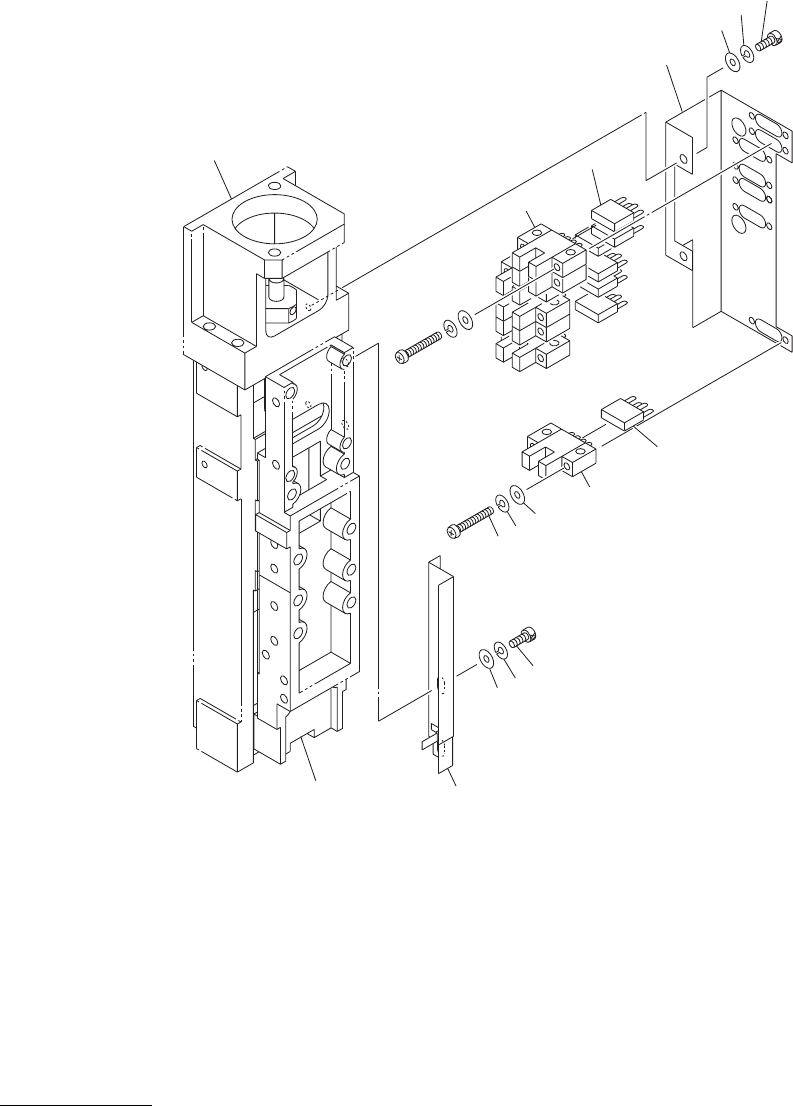

Fig. MC-4Ｌ軸レベル検出部 L Axis Level Detector
See Fig.MC-1
Key No.1
See Fig.MC-3
Key No.201
376
388
387
386
301
302
301
302
303
376
377
378
304
377
378
MODEL TIM-5000
9905-001
MC-4
Key No. PART No. PART NAME Q'ty REMARKS
301 630 000 0245 SENSOR,PHOTO 7
302 630 000 0269 SENSOR,PHOTO(C0NNECTOR) 7
303 630 068 6043 BRACKET 1 675MC-11B-808
304 630 074 1001 PLATE 1 675MC-11B-807
376 411 141 3902 WASHER V 3X7X0.5 4 FW3
377 411 141 2806 WASHER SPR 3 4 SW3
378 630 000 7510 BOLT,HEX-SCT 4 M3X8
386 411 119 1909 WASHER V 3X7X0.5 14 FW3 F
387 411 086 4408 WASHER SPR 3 14 SW3 F
388 411 162 1604 SCR PAN 3X20 14 M3X20 PAN
NOTE
2 unit/1 machine
