MODEL TIM-5000 9905-001 N-5 Key No. PART No. PART NAME Q'ty REMA RKS 401 630 069 3782 MOT OR,REVERSIBLE 2 402 630 069 1795 PULLEY,T IMIN G 2 403 630 069 3614 BELT,T IMING 2 404 630 069 1818 PULLEY,T IMIN G 1 405 630…
MODEL TIM-5000
9905-001
コンベア部 CONVEYOR SECTION

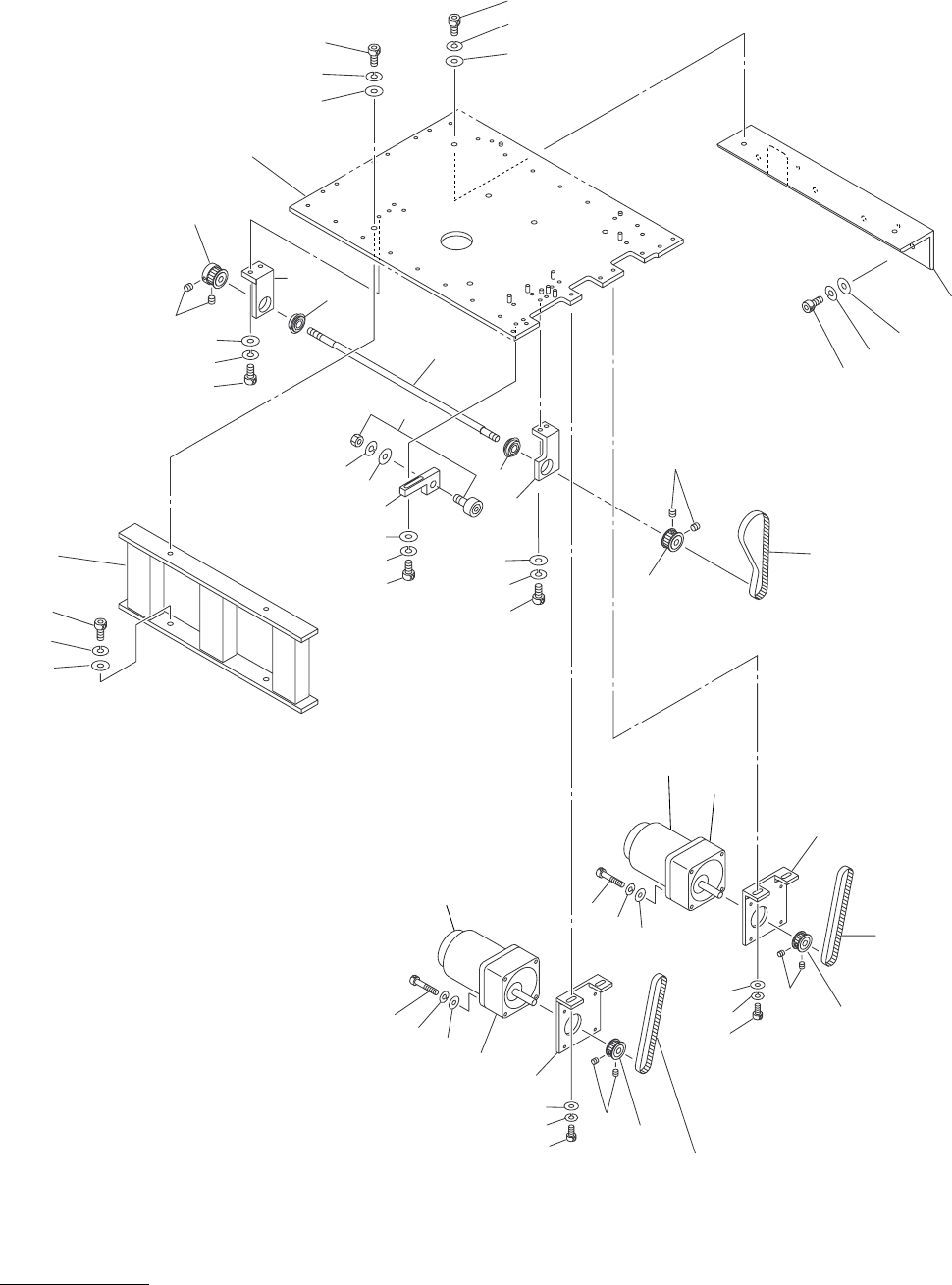

Fig. N-5 コンベアべ−ス下面（２） Conveyor Base Lower (2)
414
413
401
401
413
415
415
491
402
403
491
402
403
418
417
416
491
406
404
411
492
420
407
419
407
458
457
456
458
457
456
461
462
463
458
457
456
466
467
468
461
462
463
461
462
463
468
466
467
461
462
463
452
405
451
461
462
463
456
457
458
See Fig.N-6
Key No.526
MODEL TIM-5000
9905-001
N-5
Key No. PART No. PART NAME Q'ty REMARKS
401 630 069 3782 MOTOR,REVERSIBLE 2
402 630 069 1795 PULLEY,TIMING 2
403 630 069 3614 BELT,TIMING 2
404 630 069 1818 PULLEY,TIMING 1
405 630 072 1614 CAM FOLLOWER 1
406 630 069 3621 BELT,TIMING 1
407 630 001 1425 BEARING,RADIAL 2
411 630 069 1832 PULLEY,TIMING 1
413 630 069 3799 GEAR,REDUCTION 2
414 630 078 6583 BRACKET 1
415 630 078 6590 BRACKET 2
416 630 078 5319 BRACKET 1
417 630 069 3591 PLATE 1
418 630 078 5357 SUPPORT 1
419 630 069 3577 SHAFT 1
420 630 078 5326 BRACKET 1
451 411 141 4800 WASHER V 12X24X2.5 1 FW12
452 411 141 3308 WASHER SPR 12 1 SW12
456 411 141 4503 WASHER V 8X17X1.6 10 FW8
457 411 141 3100 WASHER SPR 8 10 SW8
458 630 000 8012 BOLT,HEX-SCT 10 M8X20
461 411 141 4305 WASHER V 6X12.5X1.6 10 FW6
462 411 141 3001 WASHER SPR 6 10 SW6
463 630 000 7893 BOLT,HEX-SCT 10 M6X20
466 411 141 4107 WASHER V 5X10X1 8 FW5
467 411 141 6705 WASHER SPR 5 8 SW5
468 630 000 7824 BOLT,HEX-SCT 8 M5X45
491 630 000 8944 SET SCREW 6 M5X6 SET
492 630 000 8951 SET SCREW 2 M5X8 SET
NOTE
MODEL TIM-5000
9905-001
コンベア部 CONVEYOR SECTION

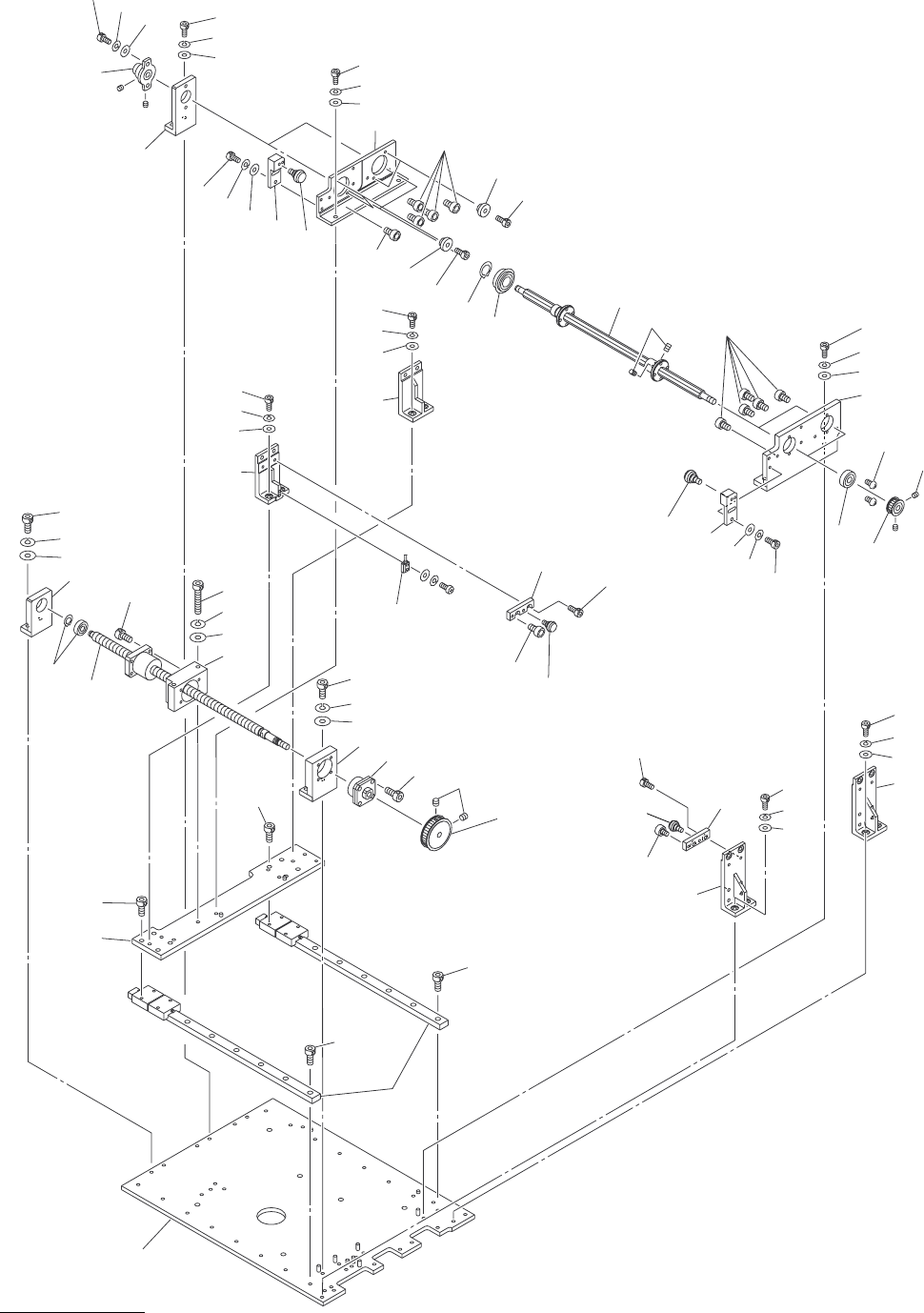

Fig. N-6 コンベアベ−ス上面（２） Conveyor Base Upper (2)
515
529
526
518
524
502
574
592
501
523
503
502
530
521
522
See Fig.N-2
Key No.112
513
512
520
505
504
512
519
513
506
593
531
527
513
513
531
508
507
525
512
528
509
516
513
512
516
517
568
569
568
573
563
562
561
565
562
561
563
562
561
563
562
561
573
563
562
561
563
562
561
569
566
567
570
594
591
568
562
561
563
563
562
561
578
563
562
561
566
567
568
561
562
564
563
562
561
578
