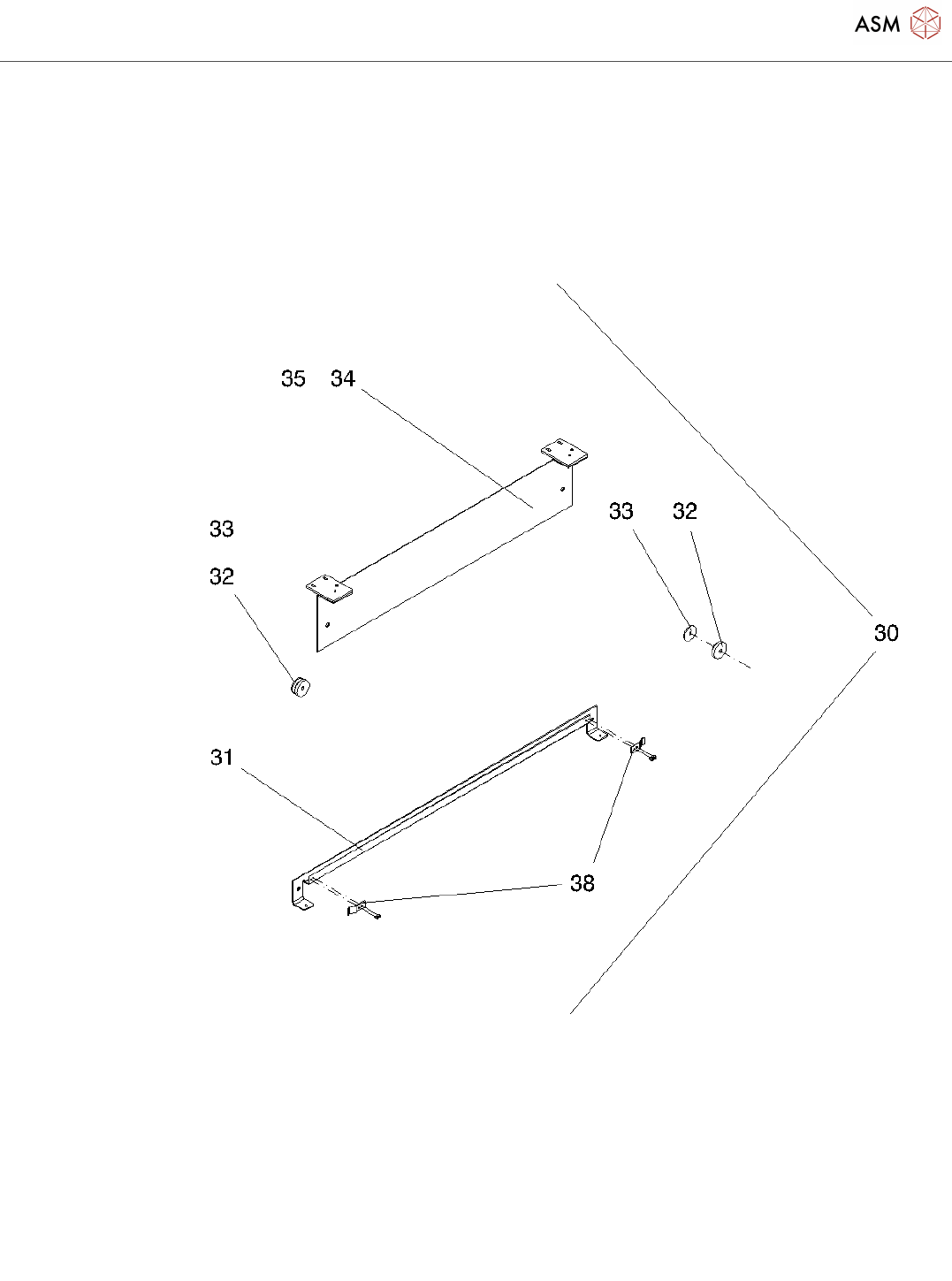

Version 1
Page 4 / 8 24.11.2021
Version 1
Page 5 / 8 24.11.2021
Pos. Item no. Description Part marking
03055282-01 GR HMI /P001
1 03078913-04 MONITOR SCD1520-TDC SPARE PART
2 03059594-03 USB-KEYBOARD ACTIVE KEY WITH
TOUCH-PAD
SPARE PART
03055289-01 GR CONTROL ELEMENTS /P001
3 03055265-02 CONTROL ELEMENT EMERGENCY
STOP
SPARE PART
4 00328233-01 SWITCH ELEMENT 3SB34 / 1NC SPARE PART
7 03065077-02 CONTROL ELEMENT START/STOP
8 00328232-01 SWITCH ELEMENT 3SB3400-0B 1NO
SCREW TER.
SPARE PART
03083987-01 GR COVERING P001
03075979-01 COVER SUPPORT
03075158-02 COVER-SUPPORT LEFT CPL
03083998-01 SUPPORT, CORNER LEFT CPL.
03074575-01 OUTER COVER RIGHT
03074573-01 OUTER COVER LEFT
03074562-01 SIDE COVER CPL
03075070-01 SIDE COVER
03066877-02 GUIDE RAIL VERTICAL, TOP SPARE PART
03072216-01 GUIDE, CORNER LEFT
03071934-01 GUIDE, CORNER RIGHT
03072728-01 BUFFER WITH PIN, TYP-NR. 1284 STANDARD PARTS
03072700-01 CLAMPING PART
03067568-02 BUFFER, COVER-GUIDE SPARE PART
03078701-01 LOCKING PLATE CPL.
03077824-01 SEALING FOR NGR FAN
03074801-01 GRID, WIRE CLOTH
9 03074780-01 FAN ASSEMBLY
10 03052317-02 FAN HOOD 1-PIECE SPARE PART
11 03056479-01 AXIAL FAN TYPE 4414FNN
03072748-01 SUPPORT, SAFETY SWITCH CPL.
00341997-01 LABEL GROUNDING POINT GNYE
D12.5
03068040-01 EDGE PROTECTION, CORNER PART
RIGHT
Version 1
Page 6 / 8 24.11.2021
Pos. Item no. Description Part marking
00306732-01 PUSH BUTTON INNER HALF PS-1,
10.3MM
03065055-03 GUIDE RAIL HORIZONTAL SPARE PART
03075149-02 COVER-SUPPORT RIGHT, CPL.
03054371-01 NIROSTA-HINGE GN 237.5-40-40
03068956-01 COVER, EXIT SIDE
03065813-01 SUPPORT GCU CPL.
03066100-01 BRACKET CPL.
03068747-01 SUPPORT TRAILING-CABLE
INTERFACE CPL.
03075163-01 SUPPORT LEFT CPL.
03075167-01 SUPPORT RIGHT CPL.
03075573-01 SUPPORT BOX-PC
03066144-01 BUFFER BOX-PC
03075578-01 ANGLE BRACKET
03077029-02 ASSEMBLY, COVER BARCODE SPARE PART
12 03055262-04 HOOD SWITCH /B SERIES SPARE PART
13 03055263-01 SAFETY SWITCH AZ 16-03ZVRK-M16
3NC
SPARE PART
03063161-01 STOP ANGLE
14 03086743-02 GAS PRES.SH.ABS
D3D3B90-135-430-006/230N
SPARE PART
03075011-01 SUPPORT, CORNER RIGHT
00330712-01 NAMEPLATE SIEMENS , SELF-
ADHESIVE
03083988-01 MOUNTING PARTS COVER
03079611-01 LEG SPRING RIGHT
03079639-01 LEG SPRING LEFT
15 03072799-01 KEYBOARD HOLDER, CONSOLE
03075270-01 DOOR MOUNTING, BOTTOM RIGHT
CPL.
SPARE PART
03075255-01 DOOR MOUNTING, BOTTOM LEFT
CPL.
SPARE PART
16 03074871-01 DOOR LEFT CPL. SPARE PART
03074911-01 DISTANCE BUSHING
03084047-01 MIDDLE COVER CPL.
17 03073000-01 MONITOR HOLDER + CONSOLE CPL.
