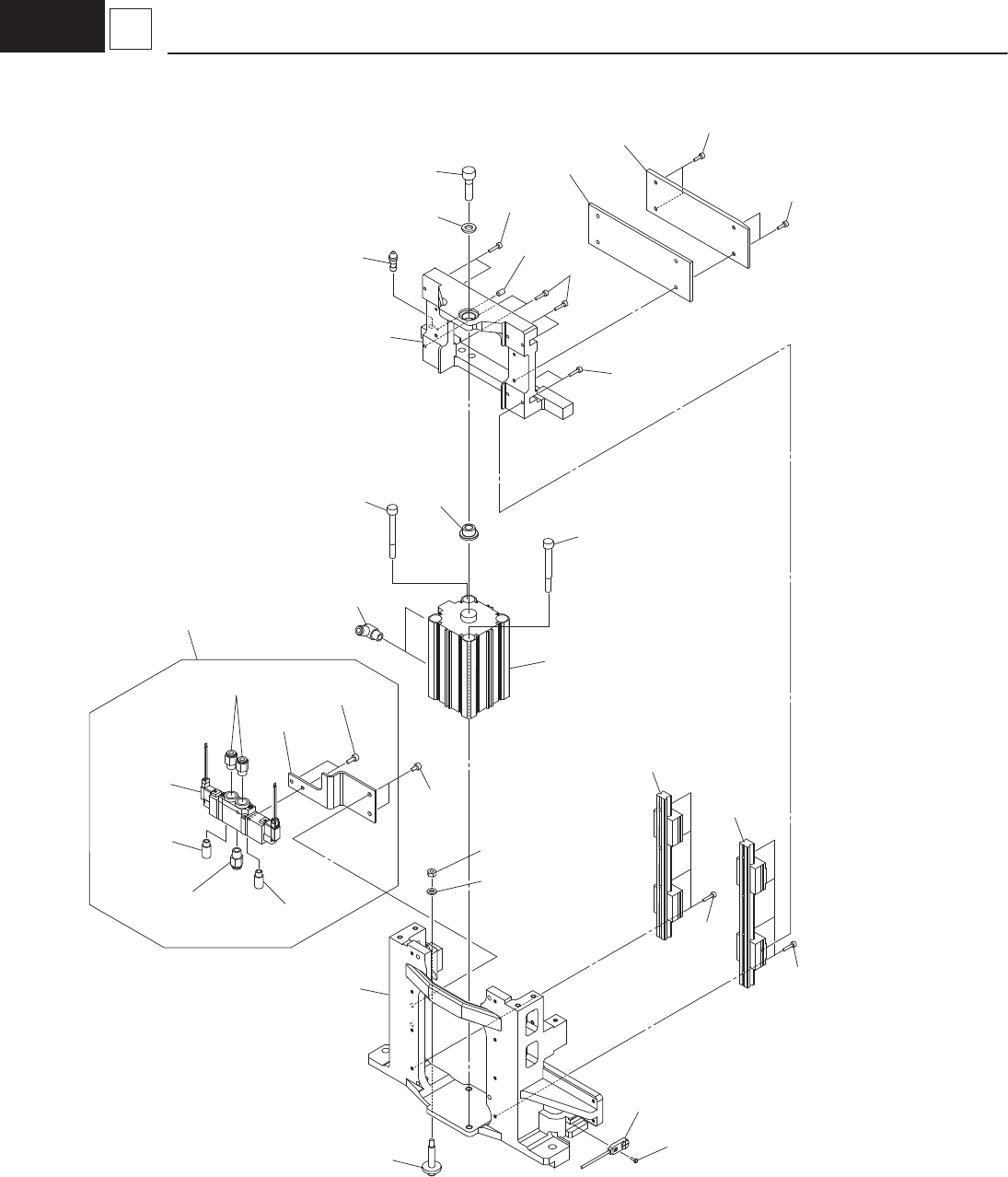

– 102 – E4 3 Frame L 1509-002 214 213 214 204 210 2 11 203 217 218 220 221 222 222 203 203 216 215 203 206 201 207 209 208 212 219 212-02 212-05 212-03 212-03 212-01 212-04 212-06 203 202 205 202
– 101 –
POSITIONING SECTION
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
101 KYA-M3J0K-00 1005BJ01 BRACKET_FIBER 2
102 KYB-M3J1D-00 0929E026 HOLDER_BKT_R 1
103 KYB-M3J1E-00 0929E027 HOLDER_BKT_L 1
104 KYB-M3J1F-00 0929E028 HOLDER_R 1
105 KYB-M3J1G-00 0929E029 HOLDER_L 1
106 KYA-M3J13-00 23G00152 SENSOR_PELEC 1
107 KYA-M3J14-00 23G00157 SENSOR_PELEC 1 FCT7
108 90990-02J022 221CA002 SCREW,SET 2
109 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 8
1509-002
– 103 –
POSITIONING SECTION
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
201 KYA-M3J04-00 1005BJ03 BASE_L 1
202 KYB-M3J1B-00 222L0694 GUIDE_LINEAR 1
203 91312-04016 221AA020 BOLT,HEX.SOCKET HEAD 16
204 KYA-M3J06-00 1005BJ05 BASE_MOVE_L 1
205 KYA-M3J07-00 10051J2M ASSY,SENSOR FCT1 1 FCT1
206 98502-03008 221DA011 SCREW,PAN HEAD 1
207 KYB-M3J1P-00 213A1568 SHAFT 1
208 95302-06600 221FA011 NUT,HEXAGON 1
209 92902-06200 221HA106 WASHER,PLAIN 1
210 KYB-M3J1S-00 216F0999 PIN_GUIDE 1
211 90990-02J026 221CA007 SCREW,SET 1
212 KYA-M3J0D-00 10051J2W ASSY_VALVE-L 1
212-01 KYA-M3J0N-00 1005BJ0F BRACKET_VALVE_L 1
212-02 KYA-M3J0B-00 10051J2R ASSY,VALVE CUT2,3 1 CUT2,3
212-03 $AN10-01 1010BJ1Z JOINT 2
212-04 KYA-M3J0V-00 1005AB0P PIPE_FITTINGS 2
212-05 KYA-M3J0W-00 1005AB0S PIPE_FITTINGS 1
212-06 91312-04006 221AA015 BOLT,HEX.SOCKET HEAD 2
213 KYB-M3J1X-00 224C0612 CYLINDER 1
214 91312-08120 221AA151 BOLT,HEX.SOCKET HEAD 2
215 KYB-M3J1J-00 1005AB11 PIPE_FITTINGS 2
216 KYA-M3J0X-00 1005BJ0C HOLDER 1
217 90112-10J025 221AA067 BOLT,HEX.SOCKET HEAD 1
218 92902-10200 221HA108 WASHER,PLAIN 1
219 91312-05008 221AA028 BOLT,HEX.SOCKET HEAD 2
220 KYB-M3J17-00 211DD872 PLATE 1
221 KYB-M3J16-00 211DD870 PLATE 1
222 91312-04012 221AA018 BOLT,HEX.SOCKET HEAD 4
