P-327-002_SIGMA-F8主机部品分解图 - 第116页

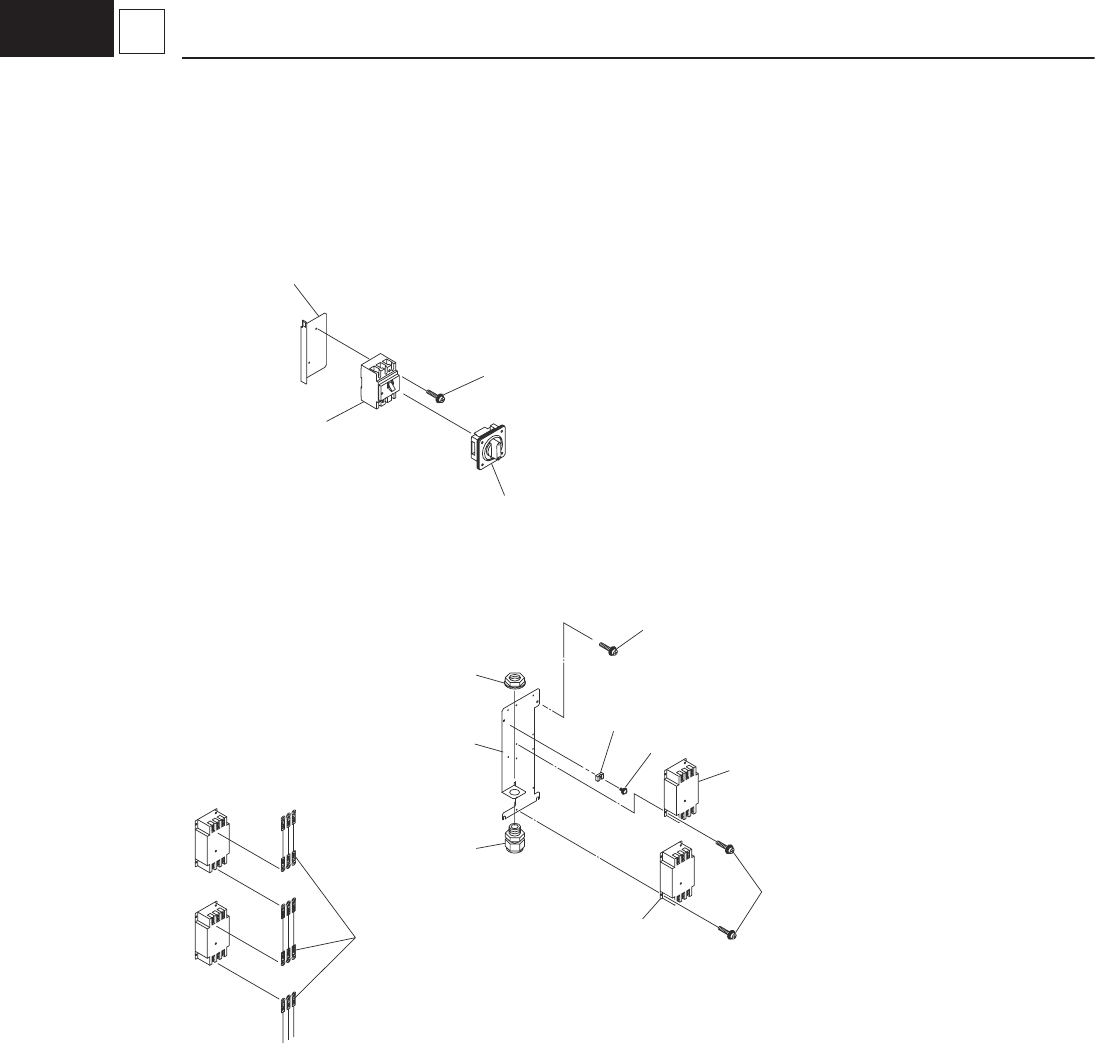

– 1 10 – E5 2 Breaker , Noise Filter 1509-002 103 101 104 111 111 107 12 3 12 4 12 5 121 120 119 11 6 11 8 11 5 107 106 105 11 4 11 3 Q200 Z01 Z02
– 109 –
ELECTRICAL SECTION (Surroundings)
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
1 KYA-M651P-00 1005BA3S BRACKET 1
2 KYA-M655N-00 1005BA3T BRACKET 1
3 KYB-M658Y-00 9W210506 HNS,BANANA-JACK 1
5 KYA-M650R-00 1005BC6P HNS,FEEDER-BULK 1
6 90990-11J016 221DA053 SCREW,PAN HEAD WW 2
7 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 2
8 92902-05100 221HA005 WASHER,SPRING 2
9 KYB-M65AA-00 221HA303 ROHS_WASHER 2
11 90990-11J012 221DA057 SCREW,PAN HEAD WW 4
13 KYB-M65BF-00 4S1B0032 SWITCH-BUTTON 1 S111
14 KYB-M1324-00 9W310128 HNS,COVER 1
15 KYB-M1325-00 9W310129 CORD 3
16 KYB-MD734-00 23K10402 CASE_CONN 1
17 KYB-M65B9-00 4J300179 CAB-JOINTTERMIN 4
18 KYB-M658C-00 23N20117 TUBE-WIRING 4
19 KYB-M6588-00 23N20103 TUBE-WIRING 1
20 KYB-M852E-00 23N30737 ACCESS-WIRING 1
1509-002
– 111 –
ELECTRICAL SECTION (Surroundings)
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
101 KYB-M6511-00 0914BA2A BREAKER 1 Q200
103 KYB-M6582-00 211AC913 BREAKER TERMINAL CVR 1
104 KYB-M6585-00 226C0247 HANDLE 1
105 90990-08J034 221DA034 SCREW,PAN HEAD 2
106 92902-04100 221HA004 WASHER,SPRING 2
107 92902-04200 221HA104 WASHER,PLAIN 2
108 KYA-M651C-00 1005BA0G BRACKET 1
111 KYB-M656S-00 1005BA2A NOISE-FILTER 1 Z01, Z02
113 KYA-M651J-00 1005BA16 NF-PLATE 1
114 KYB-M65AP-00 23N30242 ACCESS-WIRING 1
115 KYB-M65AR-00 23N30243 ACCESS-WIRING 1
116 KYB-M65AB-00 226J0373 MOUNTING_BASE 2
117 91312-05006 221AA027 BOLT,HEX.SOCKET HEAD 8
118 91312-05008 221AA028 BOLT,HEX.SOCKET HEAD 2
119 98502-05008 221DA035 SCREW,PAN HEAD 4
120 92902-05100 221HA005 WASHER,SPRING 4
121 92902-05200 221HA105 WASHER,PLAIN 4
123 KYB-M65B8-00 4J300169 CAB_JOINTTERMIN 15
124 KYB-M6591-00 9W310119 CORD 1
125 KYB-M658A-00 23N20108 TUBE_WIRING 15
1509-002
