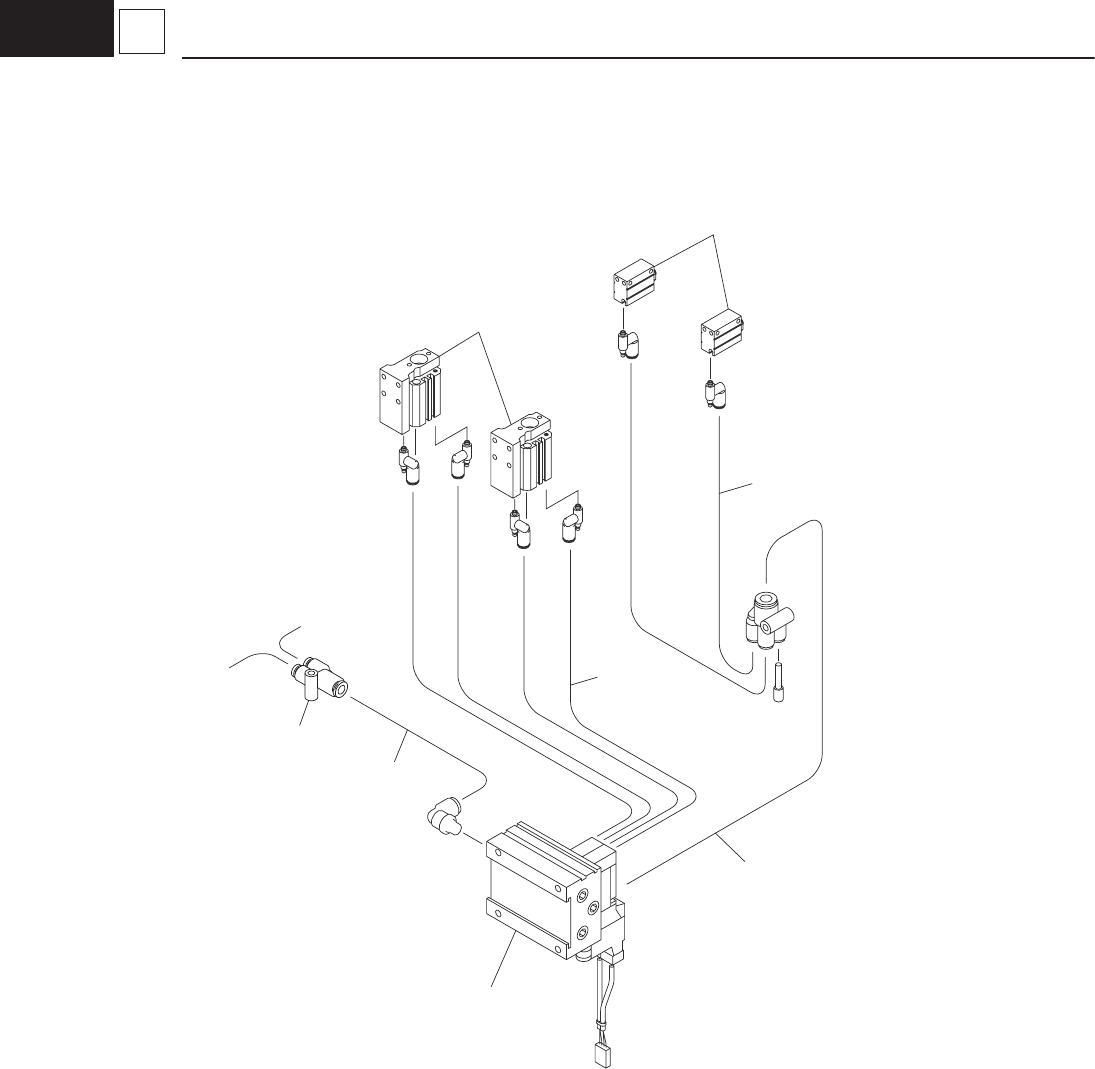

HIGH SPEED NOZZLE STOCKER
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
100 KYA-M9601-00 10088H1X ASSY_CYLINDER 1
101 KYA-M960X-00 1008IH06 CYLINDER 1
103 KYA-M9612-00 1008IH13 OC_CYLINDER 1
104 KYA-M9608-00 0900E12D AIR LINE EQPT 2
105 KYA-M960U-00 1008IH02 GUIDE 1
106 KYA-M9613-00 1008IH14 S_BRACKET 1
107 KYA-M960V-00 1008IH03 LEVER 1
108 KYB-M962D-00 216D0603 PIN_HINGE 1
109 90933-01J693 222D0004 BEARING_RADIAL 2
110 KYB-M963F-00 222N0019 SPRING_TENSION 1
111 KYB-M961W-00 211F8213 BRACKET 1
112 KYA-M960W-00 1008IH05 SPRING_BRACKET 1
113 KYA-M961D-00 222A0151 BUSH_BEARING 1
114 KYB-M963E-00 222M0657 SPRING_COMP 1
115 KYA-M960K-00 1008IH0G BLOCK 1
116 KYB-M962J-00 216S2914 LEVER 1
117 KYB-M9627-00 216D0441 PIN_HINGE 1
118 KYA-M9611-00 1008IH12 BRACKET 1
119 KYA-M9610-00 1008IH0C BRACKET 1
120 KYA-M960J-00 1008IH0B STOCKER_UNDER 1
121 KYA-M9615-00 1008IH1A SPEED_CONTROLLER 1
125 91312-03016 221AA010 BOLT,HEX.SOCKET HEAD 2
126 90112-2AJ010 221AA321 BOLT,HEX.SOCKET HEAD 2
127 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 4
128 92902-04200 221HA104 WASHER,PLAIN 2
129 90990-02J019 221CA026 SCREW,SET 2
130 92902-04600 221HA204 WASHER,PLAIN 1
131 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 2
132 92902-03100 221HA003 WASHER,SPRING 4
133 92902-03600 221HA203 WASHER,PLAIN 2
134 90166-02J208 221DA003 SCREW,PAN HEAD 1
135 90990-15J013 221FA001 NUT_HEXAGON 1
136 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 4
137 91312-04014 221AA019 BOLT,HEX.SOCKET HEAD 2
138 90189-02J2A6 221FA003 NUT,HEXAGON 1
139 92902-03200 221HA103 WASHER,PLAIN 2
140 91312-03004 221AA004 BOLT,HEX.SOCKET HEAD 1
150 KYA-M9623-00 10088H1Y HIGH-SPEED STOCKER 1
