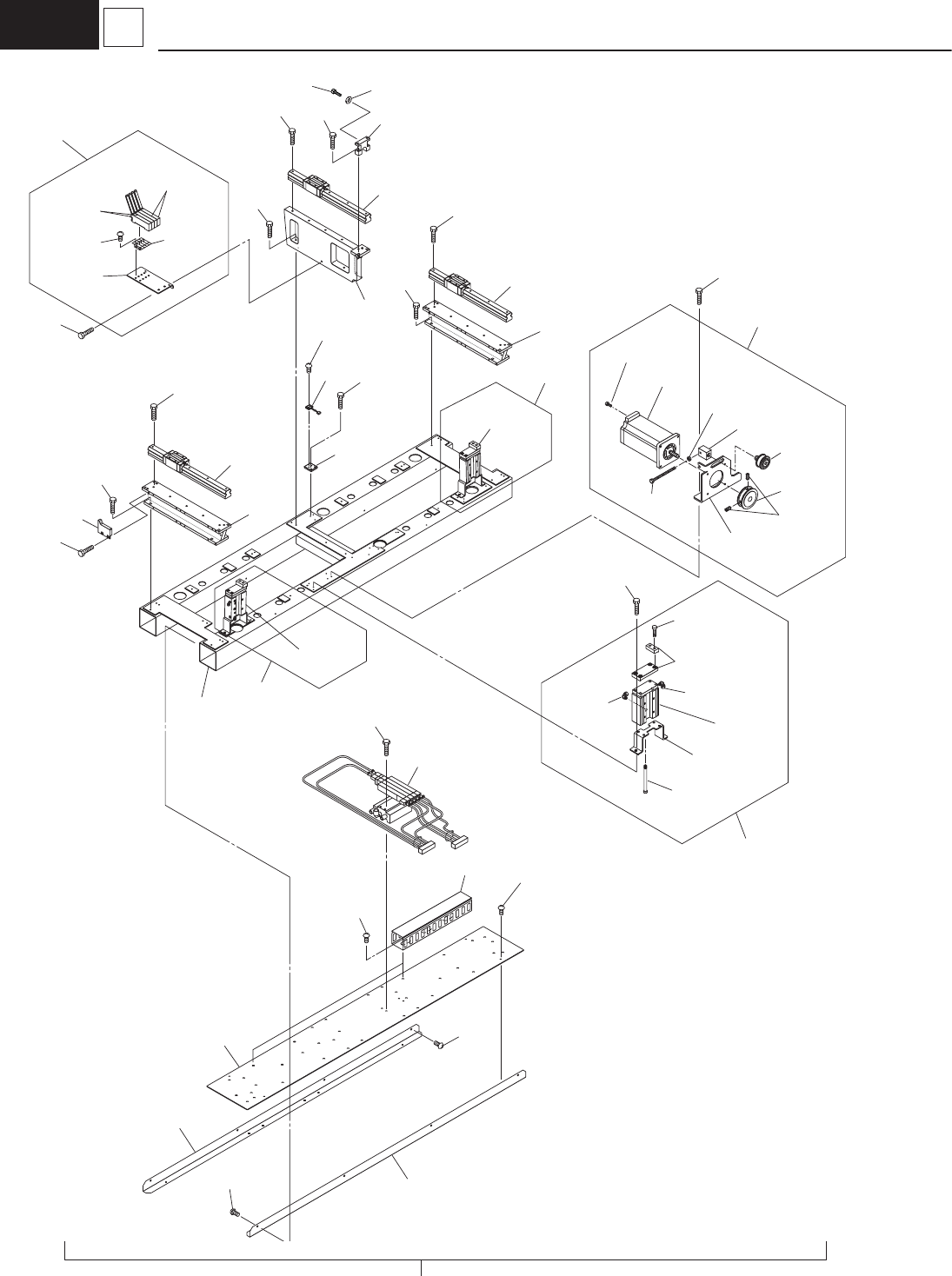

SINGLE CONVEYOR SECTION
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
2 KYA-M910S-00 1007220D ASSY_BACKUP 1
2-01 KYA-M913E-00 1007A07B PLATE_BACK_UP 2
2-02 KYA-M913A-00 1007A072 GUIDE_LINEAR 4
2-03 KYA-M9158-00 1007A06L BLOCK 4
2-04 91317-03008 221AA202 BOLT HEX.SOCKET HEAD 48
2-05 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 16
11 91317-04008 221AA207 BOLT HEX.SOCKET HEAD 6
12 91312-04012 221AA018 BOLT,HEX.SOCKET HEAD 8
25 KYA-M9138-00 1007A06V PLATE 4
26 90990-01J127 221A0431 BOLT,HEX.SOCKET HEAD 24
31 91312-06030 221AA046 BOLT,HEX.SOCKET HEAD 4
32 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 2
33 91312-06010 221AA041 BOLT,HEX.SOCKET HEAD 6
– 146 –
H1
2 Base Section
1509-002
103-01
103
115
108
108
107
108
107
106
112
114
113
103-03
102-03
101-01
101-07
M201
B134
B135
B130
B131
B132
B201
B133
Y116
Y114
Y115
Y111
Y113
101-06
101-08
101-09
101-05
101
102
102
102
101-04
101-03
101-02
102-04
102-07
102-06
102-05
102-02
102-07
102-06
105
104
111
109
109
100
110
132
128
126
131
121
121
132
132
130
127
130
102-01
126
124
125
125
129
123
122
133
132
134
135
103-05
103-04
103-02
– 147 –
SINGLE CONVEYOR SECTION
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
100 KYA-M9100-00 10072208 ASSY_BASE 1
101 KYA-M910R-00 10072209 ASSY_MOTOR_W 1
101-01 KYB-M913X-00 1007A007 MOTOR_STEPPING 1 M201
101-02 KYA-M913L-00 1007A07S BRACKET_MOTOR 1
101-03 KYA-M914V-00 1007A00J PULEY_TIMING 1
101-04 KYA-M914T-00 10072206 ASSY_IDLER 1
101-05 KYA-M9155-00 1007A06B SQUARE_NUT 1
101-06 90990-07J008 1007A06C BOLT,HEXAGON 1
101-07 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 2
101-08 90990-02J027 221CA045 SCREW,SET 2
101-09 95302-04600 221FA007 NUT,HEXAGON 1
102 KYA-M911S-00 1007220A ASSY_CYLINDER 1
102-01 KYA-M9128-00 10072A0X ASSY-STOPPER1-SENSOR 1 B130, 132
102-02 KYA-M9129-00 10072A0Y ASSY-STOPPER2-SENSOR 1 B132, 133
102-03 KYA-M912A-00 10072A0Z ASSY-STOPPER3-SENSOR 1 B134, 135
102-04 KYA-M9169-00 1007C11K BLOCK_STOPPER 3
102-05 KYA-M915E-00 1007A07N BRACKET_CYLINDER 3
102-06 KYB-M702S-00 1005AB0A PIPE_FITTINGS 6
102-07 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 18
103 KYA-M911R-00 10072207 ASSY_FIBER_AMP 1
103-01 KYA-M912B-00 10072A10 ASSY-FIBER-SENSOR12 1
103-02 KYA-M912C-00 10072A12 ASSY-FIBER-SENSOR34 1
103-03 KYA-M913S-00 1007A08Q BRACKET_SENSOR 1
103-04 KYC-M184S-00 23G00207 SENSOR_PELEC 4
103-05 91312-03004 221AA004 BOLT,HEX.SOCKET HEAD 8
104 KYA-M912D-00 10072A14 ASSY-MANIFOLD-VALVE 1 Y111, 113-116
105 KYA-M910J-00 1007A08P FRAME_UNDER 1
106 KYA-M9135-00 1007A06N FRAME_CENTER 1
107 KYA-M9111-00 1007A06S BASE 2
108 KYA-M9132-00 1007A03L GUIDE_LINEAR_W 3
109 KYA-M913F-00 1007A07L BRACKET_UNDER 2
110 KYA-M913G-00 1007A07M PLATE_UNDER 1
111 KYA-M9154-00 1007A068 DUCT 2
112 KYA-M915A-00 1007A06T BLOCK 1
113 KYA-M915G-00 1007A07V PLATE 1
114 KYA-M9126-00 10072A0V ASSY-ORG-SENSOR 1 B201
115 KYA-M915B-00 1007A06Y PLATE_STOPPER 1
121 90990-66J012 221DA207 SCREW,TRUSS HEAD 8
122 91312-03035 221AA014 BOLT,HEX.SOCKET HEAD 4
123 92902-03100 221HA003 WASHER,SPRING 4
124 92902-03200 221HA103 WASHER,PLAIN 4
125 91312-05014 221AA120 BOLT,HEX.SOCKET HEAD 8
126 91312-05008 221AA028 BOLT,HEX.SOCKET HEAD 8
127 98502-03006 221DA010 SCREW,PAN HEAD 2
128 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 2
129 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 2
130 90990-66J011 221DA217 SCREW,TRUSS HEAD 8
131 91312-05010 221AA029 BOLT,HEX.SOCKET HEAD 4
132 91312-04016 221AA020 BOLT,HEX.SOCKET HEAD 15
133 91312-06030 221AA046 BOLT,HEX.SOCKET HEAD 2
134 97002-04014 221BA007 BOLT,HEXAGON 1
135 95302-04600 221FA007 NUT,HEXAGON 1
