P-327-002_SIGMA-F8主机部品分解图 - 第154页

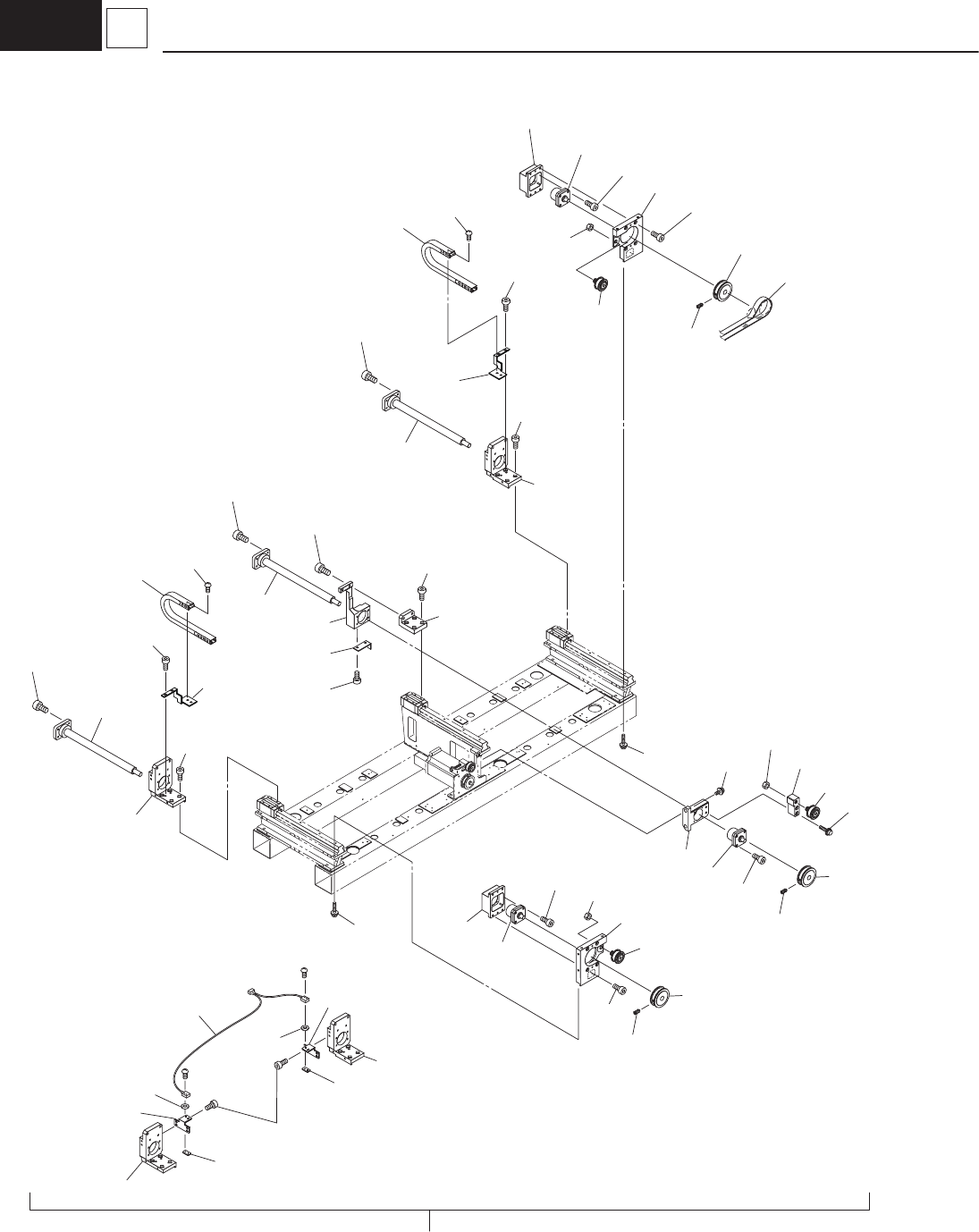

– 148 – H1 3 Moved Base 1509-002 202 201 208 203 241 206 201 209 207 201 205 220 205 205 2 11 221 222 200 222 215 221 242 242 2 11 213 214 212 216 217 218 219 204 204 204 210 210 2 11 2 11 217 218 219 240 232 240 233 236…
– 147 –
SINGLE CONVEYOR SECTION
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
100 KYA-M9100-00 10072208 ASSY_BASE 1
101 KYA-M910R-00 10072209 ASSY_MOTOR_W 1
101-01 KYB-M913X-00 1007A007 MOTOR_STEPPING 1 M201
101-02 KYA-M913L-00 1007A07S BRACKET_MOTOR 1
101-03 KYA-M914V-00 1007A00J PULEY_TIMING 1
101-04 KYA-M914T-00 10072206 ASSY_IDLER 1
101-05 KYA-M9155-00 1007A06B SQUARE_NUT 1
101-06 90990-07J008 1007A06C BOLT,HEXAGON 1
101-07 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 2
101-08 90990-02J027 221CA045 SCREW,SET 2
101-09 95302-04600 221FA007 NUT,HEXAGON 1
102 KYA-M911S-00 1007220A ASSY_CYLINDER 1
102-01 KYA-M9128-00 10072A0X ASSY-STOPPER1-SENSOR 1 B130, 132
102-02 KYA-M9129-00 10072A0Y ASSY-STOPPER2-SENSOR 1 B132, 133
102-03 KYA-M912A-00 10072A0Z ASSY-STOPPER3-SENSOR 1 B134, 135
102-04 KYA-M9169-00 1007C11K BLOCK_STOPPER 3
102-05 KYA-M915E-00 1007A07N BRACKET_CYLINDER 3
102-06 KYB-M702S-00 1005AB0A PIPE_FITTINGS 6
102-07 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 18
103 KYA-M911R-00 10072207 ASSY_FIBER_AMP 1
103-01 KYA-M912B-00 10072A10 ASSY-FIBER-SENSOR12 1
103-02 KYA-M912C-00 10072A12 ASSY-FIBER-SENSOR34 1
103-03 KYA-M913S-00 1007A08Q BRACKET_SENSOR 1
103-04 KYC-M184S-00 23G00207 SENSOR_PELEC 4
103-05 91312-03004 221AA004 BOLT,HEX.SOCKET HEAD 8
104 KYA-M912D-00 10072A14 ASSY-MANIFOLD-VALVE 1 Y111, 113-116
105 KYA-M910J-00 1007A08P FRAME_UNDER 1
106 KYA-M9135-00 1007A06N FRAME_CENTER 1
107 KYA-M9111-00 1007A06S BASE 2
108 KYA-M9132-00 1007A03L GUIDE_LINEAR_W 3
109 KYA-M913F-00 1007A07L BRACKET_UNDER 2
110 KYA-M913G-00 1007A07M PLATE_UNDER 1
111 KYA-M9154-00 1007A068 DUCT 2
112 KYA-M915A-00 1007A06T BLOCK 1
113 KYA-M915G-00 1007A07V PLATE 1
114 KYA-M9126-00 10072A0V ASSY-ORG-SENSOR 1 B201
115 KYA-M915B-00 1007A06Y PLATE_STOPPER 1
121 90990-66J012 221DA207 SCREW,TRUSS HEAD 8
122 91312-03035 221AA014 BOLT,HEX.SOCKET HEAD 4
123 92902-03100 221HA003 WASHER,SPRING 4
124 92902-03200 221HA103 WASHER,PLAIN 4
125 91312-05014 221AA120 BOLT,HEX.SOCKET HEAD 8
126 91312-05008 221AA028 BOLT,HEX.SOCKET HEAD 8
127 98502-03006 221DA010 SCREW,PAN HEAD 2
128 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 2
129 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 2
130 90990-66J011 221DA217 SCREW,TRUSS HEAD 8
131 91312-05010 221AA029 BOLT,HEX.SOCKET HEAD 4
132 91312-04016 221AA020 BOLT,HEX.SOCKET HEAD 15
133 91312-06030 221AA046 BOLT,HEX.SOCKET HEAD 2
134 97002-04014 221BA007 BOLT,HEXAGON 1
135 95302-04600 221FA007 NUT,HEXAGON 1
– 149 –
SINGLE CONVEYOR SECTION
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
200 KYA-M9102-00 1007220J ASSY_DRIVE
201 KYA-M914T-00 10072206 ASSY_IDLER 1
202 KYA-M9112-00 1007A06W BLOCK 1
203 KYA-M9113-00 1007A06X BLOCK 1
204 KYA-M9133-00 1007A06J BALL_SCREW 3
205 KYA-M9157-00 1007A06K SUPPORT_UNIT 3
206 KYA-M915R-00 1007A08R PULLEY_TIMING 3
207 KYA-M915C-00 1007A06Z HOLDER 1
208 KYA-M9159-00 1007A06Q BLOCK 1
209 KYA-M914W-00 1007A00L BELT_TIMING 1
210 KYA-M9139-00 1007A070 HOLDER 2
211 KYA-M9110-00 1007A06R BLOCK 2
212 KYA-M915D-00 1007A071 BLOCK_MV_C 1
213 KYA-M9136-00 1007A06P BLOCK 1
214 KYA-M915J-00 1007A07Y BRACKET 1
215 KYA-M913J-00 1007A07Q BRACKET 1
216 KYA-M913K-00 1007A07R BRACKET 1
217 KYA-M912V-00 1007A01A CABLE_VEYOR 2
218 KYA-M912W-00 1007A01B CABLE_VEYOR 2
219 KYA-M912X-00 1007A01C CABLE_VEYOR 2
220 KYA-M9127-00 10072A0W ASSY-BU-PIN-SENSOR 1 B136, 136T
221 KYA-M915F-00 1007A07U BRACKET_SENSOR 2
222 KYA-M915H-00 1007A07W NUT 2
231 91312-06016 221AA043 BOLT,HEX.SOCKET HEAD 2
232 91312-05016 221AA031 BOLT,HEX.SOCKET HEAD 10
233 91312-05014 221AA120 BOLT,HEX.SOCKET HEAD 4
234 91312-05010 221AA029 BOLT,HEX.SOCKET HEAD 2
235 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 28
236 91312-04006 221AA015 BOLT,HEX.SOCKET HEAD 4
237 91312-03010 221AA007 BOLT,HEX.SOCKET HEAD 12
238 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 2
239 98702-04006 221DA113 SCREW,FLAT HEAD 8
240 95302-08600 221FA013 NUT,HEXAGON 2
241 90990-02J027 221CA045 SCREW,SET 6
242 90171-02J026 221HA101 WASHER,PLAIN 4
φ 2 用
