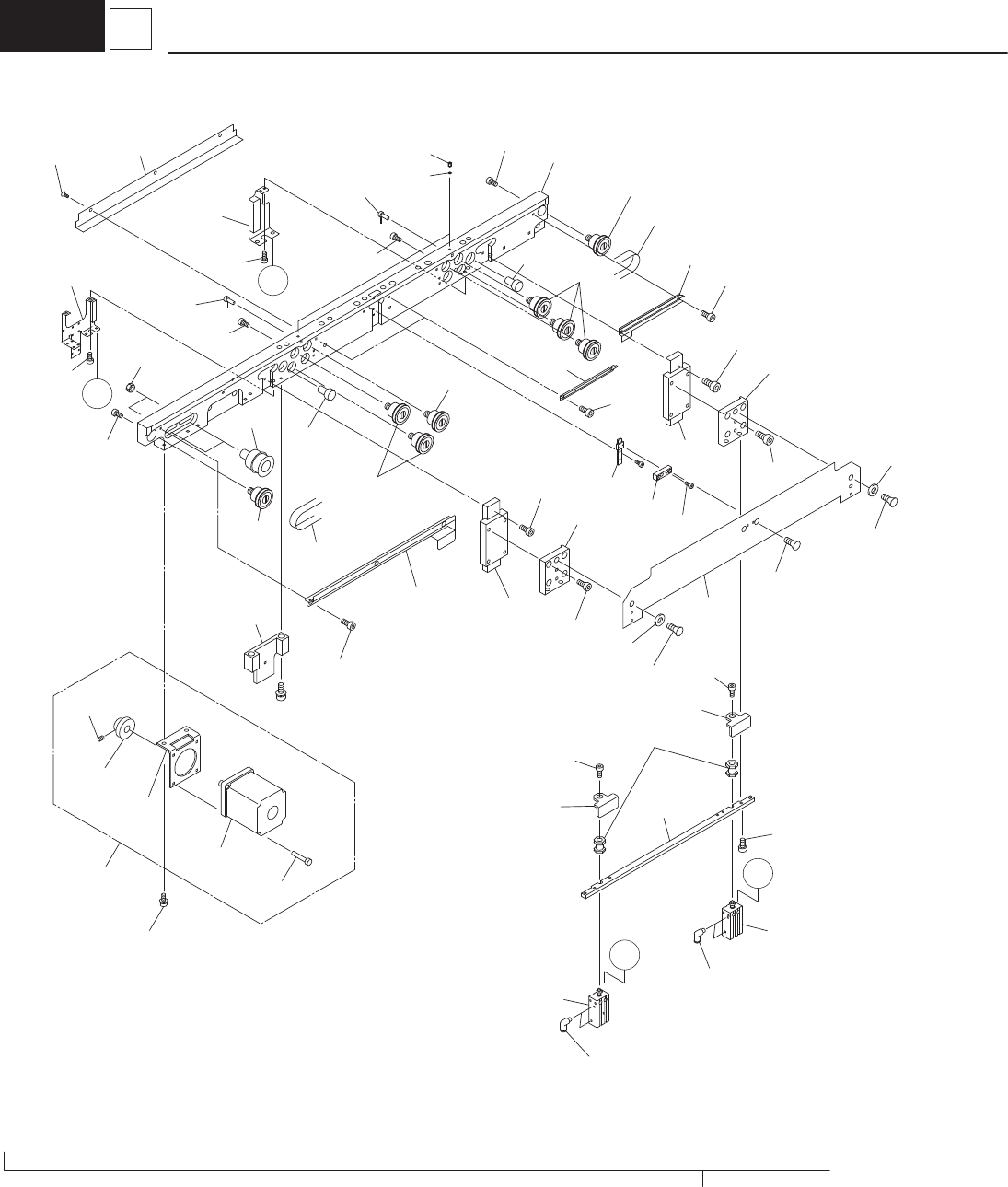

– 154 – H1 5 Moved Chute 1509-002 422 416 417 401 41 1 406 408-03 427 419 409 410 405 405 405 405 405 412 412 413 407 407 408-01 408-04 404 420 418 453 453 429 429 418 403 413 446 445 445 445 445 446 449 443 408-06 408-0…
– 153 –
SINGLE CONVEYOR SECTION
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
300 KYA-M9101-00 1007220H ASSY_CHUTE_FX 1
301 KYA-M910E-00 1007A08F CHUTE_FX_L 1
302 KYA-M910F-00 1007A08G CHUTE_FX_R 1
303 KYA-M912Y-00 1007A01X GUIDE_LINEAR 4
304 KYA-M9130-00 1007A026 GUIDE_LINEAR 2
305 KYB-M91AL-00 1007A097 PULLEY_TIMING 16
306 KYA-M914U-00 1007A00A PULLEY_FLAT 4
307 KYA-M912N-00 1007A00S CAM_FOLLOWER 8
308 KYA-M911U-00 1007220C ASSY_MOTOR_FX 1
308-01 KYA-M911Y-00 10072A0L ASSY-MOTOR 1 M302
308-02 KYA-M9120-00 10072A0M ASSY-MOTOR 1 M303
308-03 KYA-M915L-00 1007A084 BRACKET_MOTOR 2
308-04 KYA-M914X-00 1007A00M PULLEY_TIMING 2
308-05 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 8
308-06 90990-02J023 221CA027 SCREW,SET 4
309 KYA-M9122-00 10072A0R ASSY-SENSOR-S1 1 B140
310 KYA-M9123-00 10072A0S ASSY-SENSOR-S2 1 B141
311 KYA-M9124-00 10072A0T ASSY-BOARD-SENSOR1 1 B301
312 KYA-M9125-00 10072A0U ASSY-BOARD-SENSOR2 1 B304
313 KYA-M9137-00 1007A06U BLOCK_Z_FX 2
314 KYA-M915S-00 1007A08T BLOCK_FIXED-GUIDE 4
315 KYA-M915Y-00 1007A09G BLOCK_GUIDE 2
316 KYA-M912R-00 1007A00V SENSOR_PELEC 4
B302-303,305-306
Not-object
317 KYA-M9152-00 1007A022 BELT_TIMING 2
318 KYA-M915M-00 1007A085 BRACKET_SENSOR 2
319 KYA-M915K-00 1007A082 BRACKET 2
320 KYA-M915N-00 1007A087 BRACKET_SENSOR 2
321 KYA-M912P-00 1007A00U CYLINDER 2
322 KYA-M913H-00 1007A07P BRACKET 2
323 KYA-M913N-00 1007A080 BRACKET 2
324 KYA-M915U-00 1007A08Y NUT 4
325 KYA-M914N-00 1005AB0L PIPE FITTINGS 8
326 KYA-M915P-00 1007A08H BLOCK_UNDER-CHUTE 4
327 KYA-M915V-00 1007A091 BRACKET_UNDER-GUIDE 2
328 KYA-M913B-00 1007A073 GUIDE_S 4
329 KYA-M913C-00 1007A074 GUIDE_M1 1
330 KYA-M913D-00 1007A075 GUIDE_M2 1
331 KYA-M9114-00 1007A076 GUIDE_L1 1
332 KYA-M9115-00 1007A077 GUIDE_L2 1
333 KYA-M9146-00 1007C111 PLATE_Z_CLAMP 2
341 91312-05025 221AA033 BOLT,HEX.SOCKET HEAD 8
342 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 8
343 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 12
344 91312-04006 221AA015 BOLT,HEX.SOCKET HEAD 12
345 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 20
346 91312-03004 221AA004 BOLT,HEX.SOCKET HEAD 54
347 90112-02J004 221AA121 BOLT,HEX.SOCKET HEAD 4
348 90990-01J136 221AA090 BOLT,HEX.S/H WW 10
349 98702-03006 221DA106 SCREW,FLAT HEAD 8
350 95302-05600 221FA009 NUT,HEXAGON 4
351 90990-02J019 221CA026 SCREW,SET 4
352 KYB-M91C4-00 211E1117 SPACER 4
353 92902-03200 221HA103 WASHER,PLAIN 4
– 155 –
SINGLE CONVEYOR SECTION
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
400 KYA-M9105-00 1007220S ASSY_CHUTE_MV 1
401 KYA-M910G-00 1007A08K CHUTE_MV_L 1
402 KYA-M910H-00 1007A08L CHUTE_MV_R 1
403 KYA-M912Y-00 1007A01X GUIDE_LINEAR 4
404 KYA-M9130-00 1007A026 GUIDE_LINEAR 2
405 KYB-M91AL-00 1007A097 PULLEY_TIMING 16
406 KYA-M914U-00 1007A00A PULLEY_FLAT 4
407 KYA-M912N-00 1007A00S CAM_FOLLOWER 8
408 KYA-M911T-00 1007220B ASSY_MOTOR_MV 1
408-01 KYA-M911X-00 10072A0K ASSY-MOTOR 1 M301
408-02 KYA-M9120-00 10072A0M ASSY-MOTOR 1 M304
408-03 KYA-M915L-00 1007A084 BRACKET_MOTOR 2
408-04 KYA-M914X-00 1007A00M PULLEY_TIMING 2
408-05 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 8
408-06 90990-02J023 221CA027 SCREW,SET 4
409 KYA-M9134-00 1007A06M BLOCK 2
410 KYA-M915T-00 1007A08U BLOCK_MOVED-GUIDE 4
411 KYA-M915Y-00 1007A09G BLOCK_GUIDE 2
412 KYA-M912R-00 1007A00V SENSOR_PELEC 4
413 KYA-M9152-00 1007A022 BELT_TIMING 2
414 KYA-M913P-00 1007A081 BRACKET 1
415 KYA-M913T-00 1007A09V BRACKET 1
416 KYA-M913U-00 1007A09W BRACKET 1
417 KYA-M913R-00 1007A08M BRACKET_CYLINDER 1
418 KYA-M912P-00 1007A00U CYLINDER 4
419 KYA-M915U-00 1007A08Y NUT 4
420 KYA-M914N-00 1005AB0L PIPE FITTINGS 8
421 KYA-M915P-00 1007A08H BLOCK_UNDER-CHUTE 4
422 KYA-M913M-00 1007A07T COVER 2
423 KYA-M913B-00 1007A073 GUIDE_S 4
424 KYA-M913C-00 1007A074 GUIDE_M1 1
425 KYA-M913D-00 1007A075 GUIDE_M2 1
426 KYA-M9114-00 1007A076 GUIDE_L1 1
427 KYA-M9115-00 1007A077 GUIDE_L2 1
428 KYA-M9146-00 1007C111 PLATE_Z_CLAMP 2
429 KYA-M9160-00 1007A09Z LOCK-NUT_CYLINDER 4
441 91312-05025 221AA033 BOLT,HEX.SOCKET HEAD 8
442 91312-04014 221AA019 BOLT,HEX.SOCKET HEAD 8
443 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 8
444 91312-04006 221AA015 BOLT,HEX.SOCKET HEAD 8
445 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 16
446 91312-03004 221AA004 BOLT,HEX.SOCKET HEAD 58
447 90112-02J004 221AA121 BOLT,HEX.SOCKET HEAD 4
448 98702-03006 221DA106 SCREW,FLAT HEAD 14
449 95302-05600 221FA009 NUT,HEXAGON 4
450 90990-02J019 221CA026 SCREW,SET 4
451 KYB-M91C4-00 211E1117 SPACER 4
452 92902-03200 221HA103 WASHER,PLAIN 4
453 91312-05006 221AA027 BOLT,HEX.SOCKET HEAD 4
