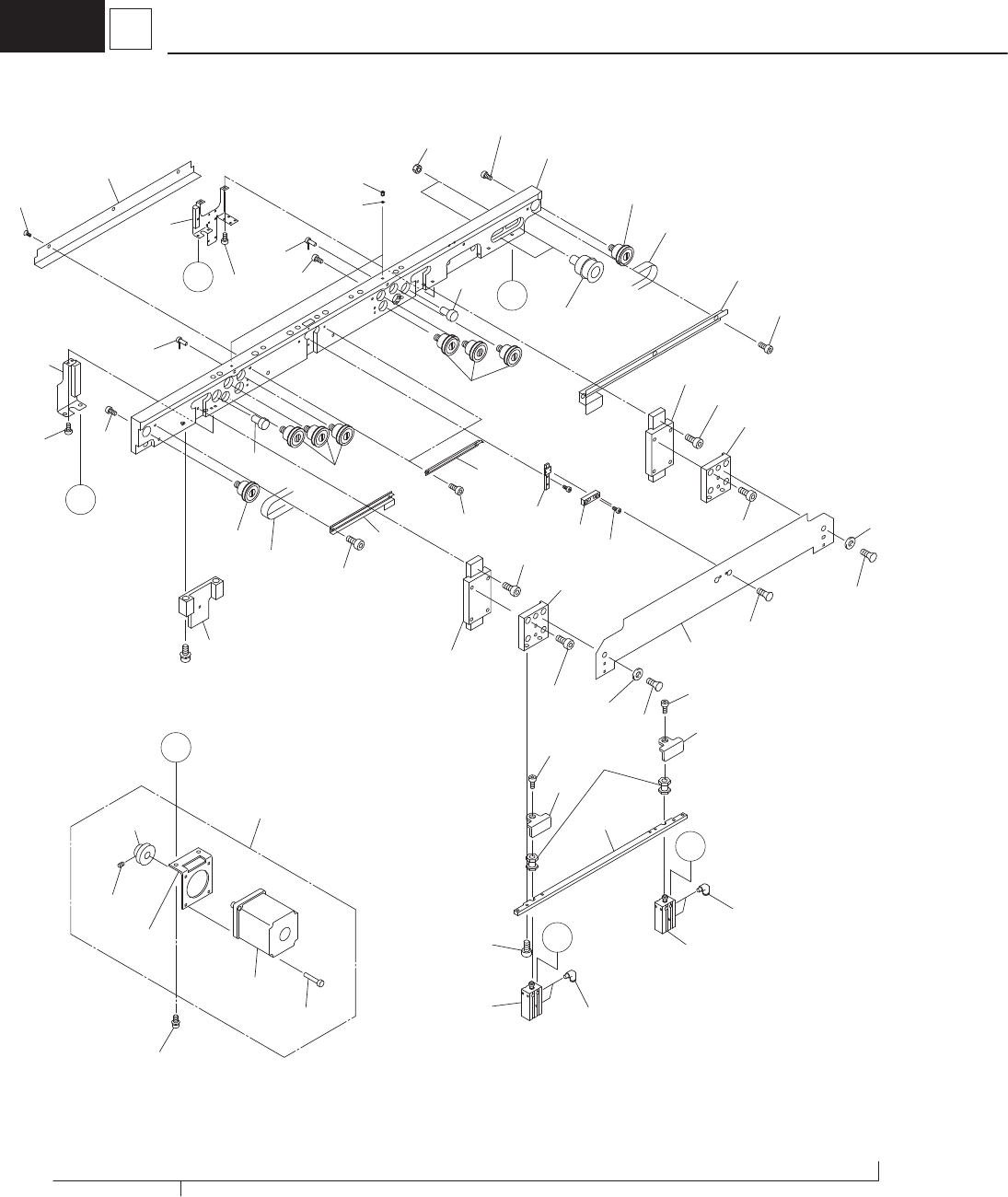

– 156 – H1 5 Moved Chute 1509-002 422 414 415 406 402 426 410 408-03 409 407 412 412 407 405 405 413 403 410 405 420 420 400 418 419 453 429 453 429 408-02 408-04 403 413 405 445 445 445 443 4 11 447 446 443 446 408-06 4…
– 155 –
SINGLE CONVEYOR SECTION
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
400 KYA-M9105-00 1007220S ASSY_CHUTE_MV 1
401 KYA-M910G-00 1007A08K CHUTE_MV_L 1
402 KYA-M910H-00 1007A08L CHUTE_MV_R 1
403 KYA-M912Y-00 1007A01X GUIDE_LINEAR 4
404 KYA-M9130-00 1007A026 GUIDE_LINEAR 2
405 KYB-M91AL-00 1007A097 PULLEY_TIMING 16
406 KYA-M914U-00 1007A00A PULLEY_FLAT 4
407 KYA-M912N-00 1007A00S CAM_FOLLOWER 8
408 KYA-M911T-00 1007220B ASSY_MOTOR_MV 1
408-01 KYA-M911X-00 10072A0K ASSY-MOTOR 1 M301
408-02 KYA-M9120-00 10072A0M ASSY-MOTOR 1 M304
408-03 KYA-M915L-00 1007A084 BRACKET_MOTOR 2
408-04 KYA-M914X-00 1007A00M PULLEY_TIMING 2
408-05 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 8
408-06 90990-02J023 221CA027 SCREW,SET 4
409 KYA-M9134-00 1007A06M BLOCK 2
410 KYA-M915T-00 1007A08U BLOCK_MOVED-GUIDE 4
411 KYA-M915Y-00 1007A09G BLOCK_GUIDE 2
412 KYA-M912R-00 1007A00V SENSOR_PELEC 4
413 KYA-M9152-00 1007A022 BELT_TIMING 2
414 KYA-M913P-00 1007A081 BRACKET 1
415 KYA-M913T-00 1007A09V BRACKET 1
416 KYA-M913U-00 1007A09W BRACKET 1
417 KYA-M913R-00 1007A08M BRACKET_CYLINDER 1
418 KYA-M912P-00 1007A00U CYLINDER 4
419 KYA-M915U-00 1007A08Y NUT 4
420 KYA-M914N-00 1005AB0L PIPE FITTINGS 8
421 KYA-M915P-00 1007A08H BLOCK_UNDER-CHUTE 4
422 KYA-M913M-00 1007A07T COVER 2
423 KYA-M913B-00 1007A073 GUIDE_S 4
424 KYA-M913C-00 1007A074 GUIDE_M1 1
425 KYA-M913D-00 1007A075 GUIDE_M2 1
426 KYA-M9114-00 1007A076 GUIDE_L1 1
427 KYA-M9115-00 1007A077 GUIDE_L2 1
428 KYA-M9146-00 1007C111 PLATE_Z_CLAMP 2
429 KYA-M9160-00 1007A09Z LOCK-NUT_CYLINDER 4
441 91312-05025 221AA033 BOLT,HEX.SOCKET HEAD 8
442 91312-04014 221AA019 BOLT,HEX.SOCKET HEAD 8
443 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 8
444 91312-04006 221AA015 BOLT,HEX.SOCKET HEAD 8
445 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 16
446 91312-03004 221AA004 BOLT,HEX.SOCKET HEAD 58
447 90112-02J004 221AA121 BOLT,HEX.SOCKET HEAD 4
448 98702-03006 221DA106 SCREW,FLAT HEAD 14
449 95302-05600 221FA009 NUT,HEXAGON 4
450 90990-02J019 221CA026 SCREW,SET 4
451 KYB-M91C4-00 211E1117 SPACER 4
452 92902-03200 221HA103 WASHER,PLAIN 4
453 91312-05006 221AA027 BOLT,HEX.SOCKET HEAD 4
– 157 –
SINGLE CONVEYOR SECTION
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
400 KYA-M9105-00 1007220S ASSY_CHUTE_MV 1
401 KYA-M910G-00 1007A08K CHUTE_MV_L 1
402 KYA-M910H-00 1007A08L CHUTE_MV_R 1
403 KYA-M912Y-00 1007A01X GUIDE_LINEAR 4
404 KYA-M9130-00 1007A026 GUIDE_LINEAR 2
405 KYB-M91AL-00 1007A097 PULLEY_TIMING 16
406 KYA-M914U-00 1007A00A PULLEY_FLAT 4
407 KYA-M912N-00 1007A00S CAM_FOLLOWER 8
408 KYA-M911T-00 1007220B ASSY_MOTOR_MV 1
408-01 KYA-M911X-00 10072A0K ASSY-MOTOR 1 M301
408-02 KYA-M9120-00 10072A0M ASSY-MOTOR 1 M304
408-03 KYA-M915L-00 1007A084 BRACKET_MOTOR 2
408-04 KYA-M914X-00 1007A00M PULLEY_TIMING 2
408-05 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 8
408-06 90990-02J023 221CA027 SCREW,SET 4
409 KYA-M9134-00 1007A06M BLOCK 2
410 KYA-M915T-00 1007A08U BLOCK_MOVED-GUIDE 4
411 KYA-M915Y-00 1007A09G BLOCK_GUIDE 2
412 KYA-M912R-00 1007A00V SENSOR_PELEC 4
413 KYA-M9152-00 1007A022 BELT_TIMING 2
414 KYA-M913P-00 1007A081 BRACKET 1
415 KYA-M913T-00 1007A09V BRACKET 1
416 KYA-M913U-00 1007A09W BRACKET 1
417 KYA-M913R-00 1007A08M BRACKET_CYLINDER 1
418 KYA-M912P-00 1007A00U CYLINDER 4
419 KYA-M915U-00 1007A08Y NUT 4
420 KYA-M914N-00 1005AB0L PIPE FITTINGS 8
421 KYA-M915P-00 1007A08H BLOCK_UNDER-CHUTE 4
422 KYA-M913M-00 1007A07T COVER 2
423 KYA-M913B-00 1007A073 GUIDE_S 4
424 KYA-M913C-00 1007A074 GUIDE_M1 1
425 KYA-M913D-00 1007A075 GUIDE_M2 1
426 KYA-M9114-00 1007A076 GUIDE_L1 1
427 KYA-M9115-00 1007A077 GUIDE_L2 1
428 KYA-M9146-00 1007C111 PLATE_Z_CLAMP 2
429 KYA-M9160-00 1007A09Z LOCK-NUT_CYLINDER 4
441 91312-05025 221AA033 BOLT,HEX.SOCKET HEAD 8
442 91312-04014 221AA019 BOLT,HEX.SOCKET HEAD 8
443 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 8
444 91312-04006 221AA015 BOLT,HEX.SOCKET HEAD 8
445 91312-03006 221AA005 BOLT,HEX.SOCKET HEAD 16
446 91312-03004 221AA004 BOLT,HEX.SOCKET HEAD 58
447 90112-02J004 221AA121 BOLT,HEX.SOCKET HEAD 4
448 98702-03006 221DA106 SCREW,FLAT HEAD 14
449 95302-05600 221FA009 NUT,HEXAGON 4
450 90990-02J019 221CA026 SCREW,SET 4
451 KYB-M91C4-00 211E1117 SPACER 4
452 92902-03200 221HA103 WASHER,PLAIN 4
453 91312-05006 221AA027 BOLT,HEX.SOCKET HEAD 4
