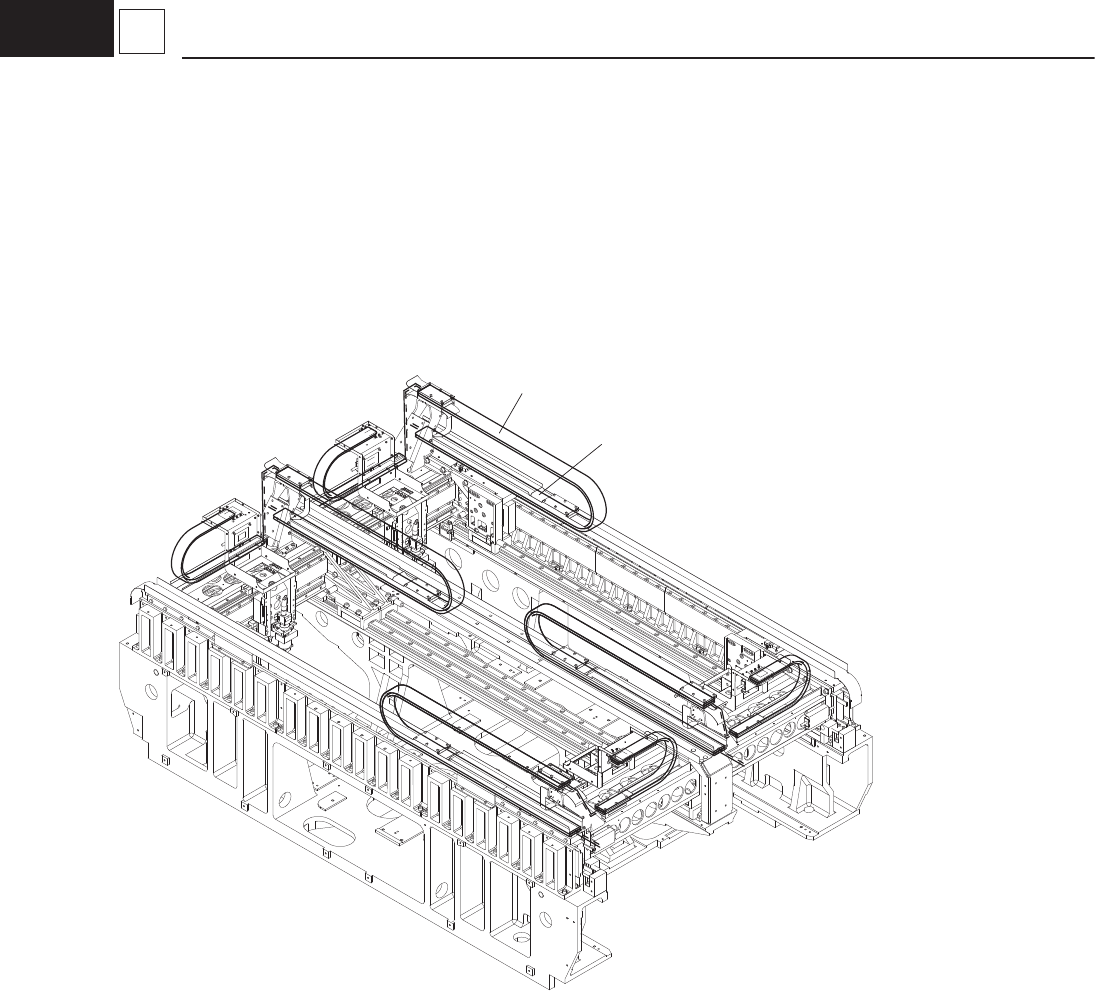

P-327-002_SIGMA-F8主机部品分解图 - 第20页
– 14 – A1 3 Cable 1509-002 2(outer) 3(inner)
– 13 –
UNIT
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
161 KYA-M261B-00 1005DC77 COVER 2
200 91312-03008 221AA006 BOLT,HEX.SOCKET HEAD 18
201 91312-04006 221AA015 BOLT,HEX.SOCKET HEAD 32
202 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 78
203 91312-04010 221AA017 BOLT,HEX.SOCKET HEAD 64
205 91312-04016 221AA020 BOLT,HEX.SOCKET HEAD 8
208 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 24
210 91312-05016 221AA031 BOLT,HEX.SOCKET HEAD 40
211 91312-05020 221AA032 BOLT,HEX.SOCKET HEAD 76
212 91312-05025 221AA033 BOLT,HEX.SOCKET HEAD 8
213 91312-05030 221AA034 BOLT,HEX.SOCKET HEAD 8
214 91312-05035 221AA035 BOLT,HEX.SOCKET HEAD 4
221 91312-08016 221AA055 BOLT,HEX.SOCKET HEAD 96
222 91312-08020 221AA056 BOLT,HEX.SOCKET HEAD 74
223 91312-08025 221AA057 BOLT,HEX.SOCKET HEAD 112
224 91312-08035 221AA059 BOLT,HEX.SOCKET HEAD 8
225 90990-66J008 221DA203 SCREW,TRUSS HEAD 10
226 90990-66J013 221DA208 SCREW,TRUSS HEAD 64
228 90990-66J019 221DA216 SCREW,TRUSS HEAD 12
232 91380-05016 221A1045 BOLT,HEX.SOCKET HEAD 152
233 92902-04200 221HA104 WASHER,PLAIN 36
234 92902-05200 221HA105 WASHER,PLAIN 42
235 92902-08200 221HA107 WASHER,PLAIN 12
236 92902-08600 221HA207 WASHER,PLAIN 164
237 92902-05100 221HA005 WASHER,SPRING 88
239 95302-03600 221FA005 NUT,HEXAGON 8
– 15 –
UNIT
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
202 KYA-M650P-00 1005BC2T HNS,CORD XY ROBOT1 4
203 KYA-M650S-00 1005BC7P HNS,XY-ROBOT2 4
