– 23 – C OV E R S ECT I O N 1509-002 No. Part No. Part Name Qty . Detail Y amaha Hitachi 100 KY A-M1303-00 10055G36 F_COVER_ASSY 2 101 KY A-M130F-00 1005FG1L COVER 1 102 KYB-M131M-00 1005FG1M BRACKET 1 103 KYB-M131N-00 1…
– 23 –

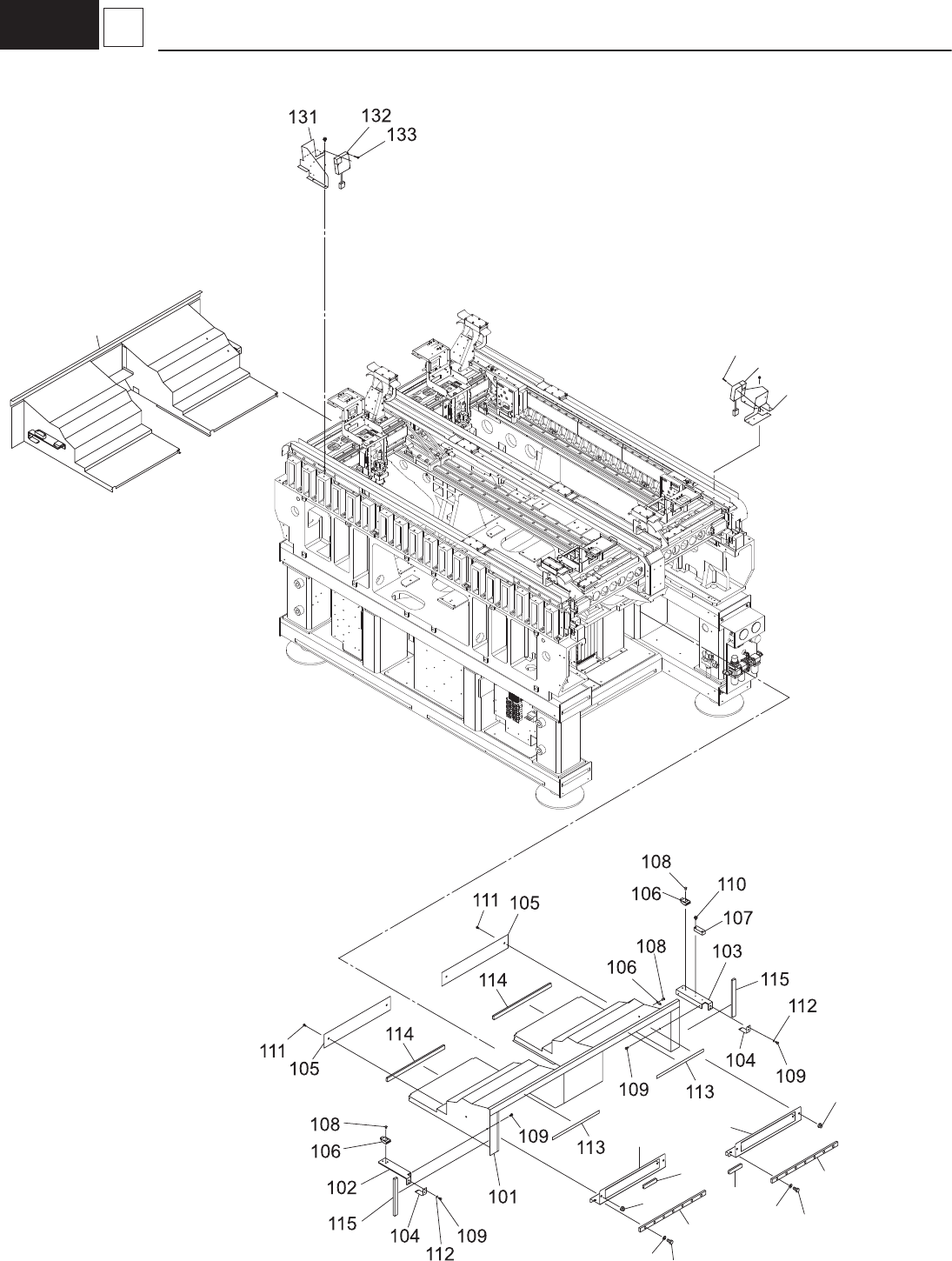

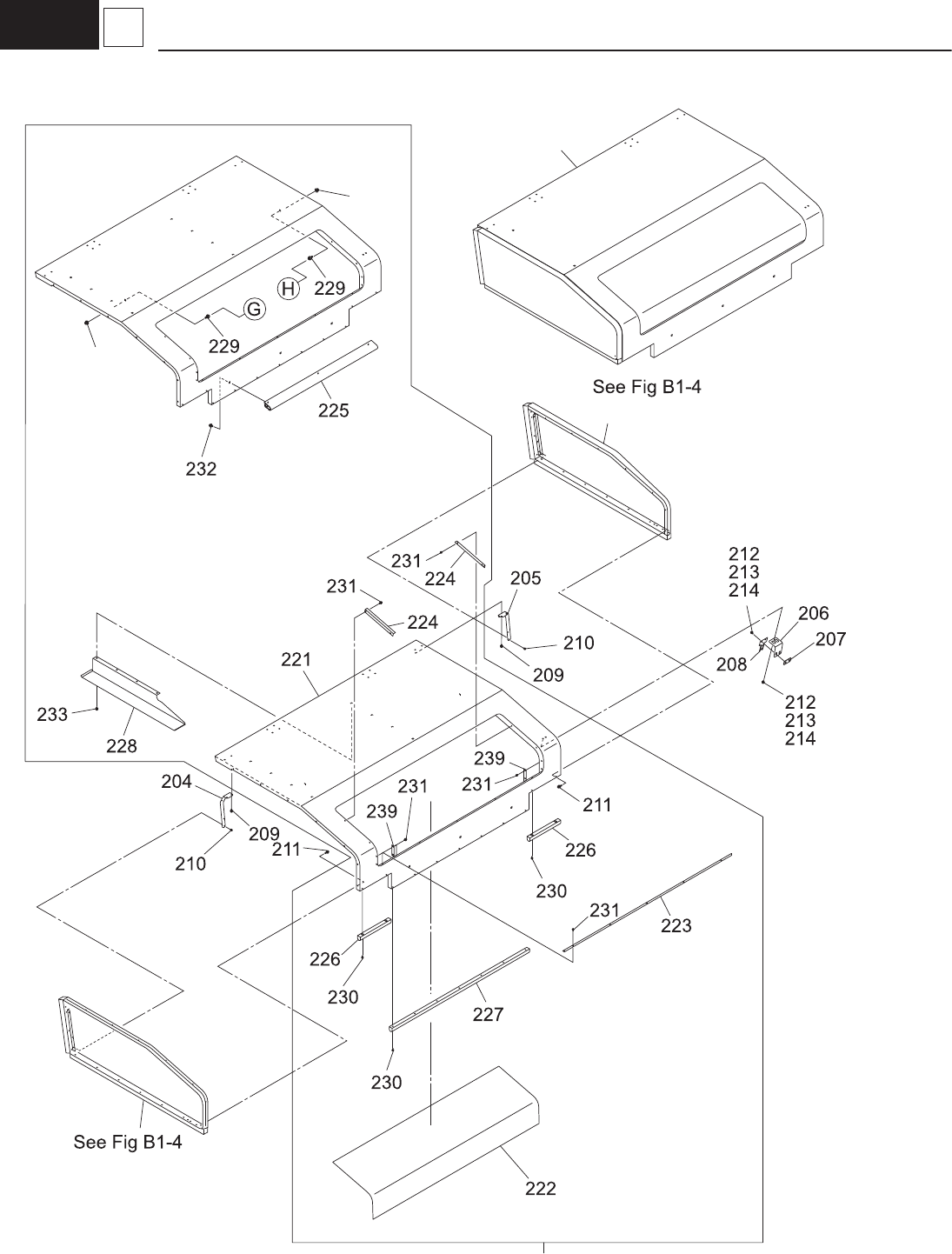

COVER SECTION
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
100 KYA-M1303-00 10055G36 F_COVER_ASSY 2
101 KYA-M130F-00 1005FG1L COVER 1
102 KYB-M131M-00 1005FG1M BRACKET 1
103 KYB-M131N-00 1005FG1N BRACKET 1
104 KYB-M131P-00 1005FG1R PLATE 2
105 KYA-M1329-00 1009EQ1T COVER 2
106 KYB-M131F-00 0920E111 SPRING_CATCHES 2
107 KYB-M130N-00 0929E00K DOORSW_ACTUATOR 1
108 98702-03004 221DA105 SCREW,FLAT HEAD 8
109 91312-04006 221AA015 BOLT,HEX.SOCKET HEAD 8
110 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 2
111 90990-66J014 221DA209 SCREW,TRUSS HEAD 4
112 92902-04200 221HA104 WASHER,PLAIN 4
113 KYA-M1302-00 10055G35 ASSY_LABEL 1
114 KYA-M132N-00 1005FG1X EDGE_PARTS 2
115 KYA-M132R-00 1005FG2Y EDGE_PARTS 2
116 KYA-M1322-00 1005FG4J COVER_L 1
117 KYA-M1323-00 1005FG4K COVER_R 1
118 KYA-M1321-00 1005FG4C PLATE 2
119 KYA-M132W-00 1005FG4L EDGE_PARTS 2
120 90990-06J004 221A0231 BOLT,HEX-SCT 14
121 92902-03200 221HA103 WASHER,PLAIN 14
122 95302-04600 221FA007 NUT,HEXAGON 4
131
KYA-M130C-00
1005FB24
GUL_LOCKSW_BRACKET
1
132 KYA-M130X-00 10055A08 ASSY-SAFETY-SWITCH 1
133 91312-04035 221AA024 BOLT,HEX.SOCKET HEAD 3
141
KYA-M130C-00
1005FB24
GUL_LOCKSW_BRACKET
1
142 KYA-M130X-00 10055A08 ASSY-SAFETY-SWITCH 1
143 91312-04035 221AA024 BOLT,HEX.SOCKET HEAD 3
