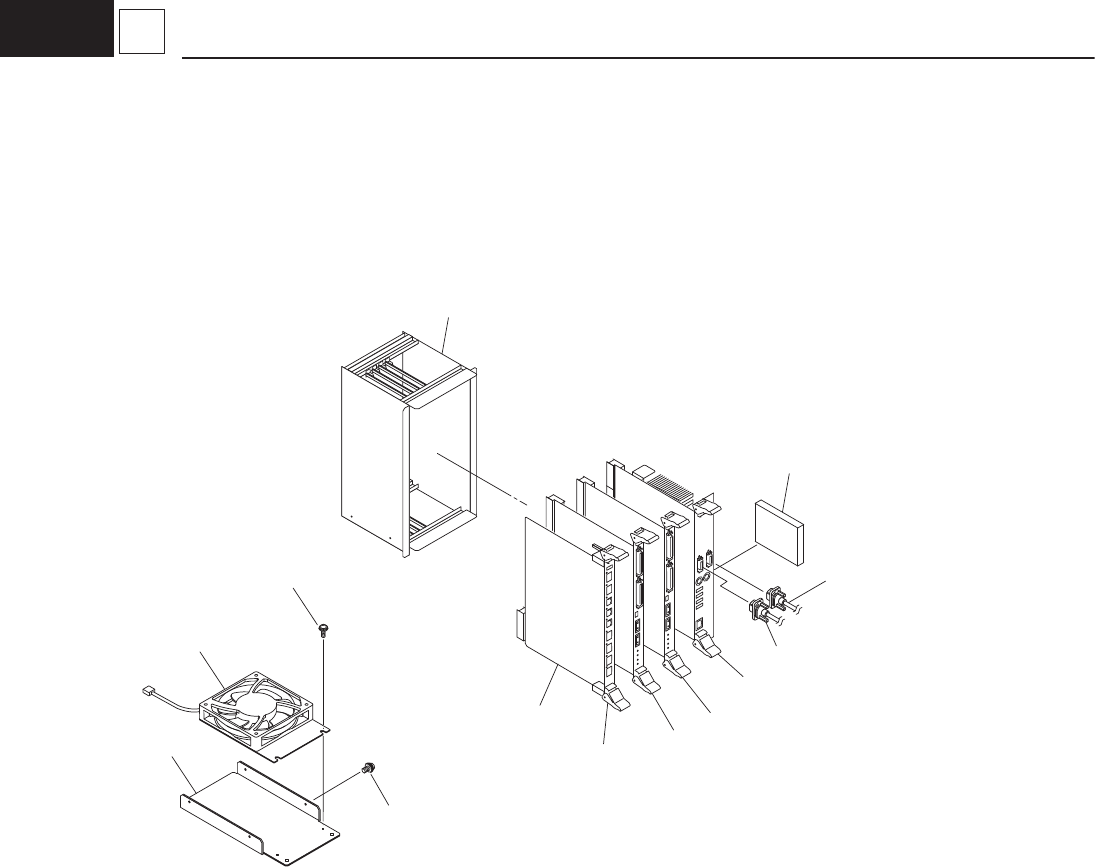

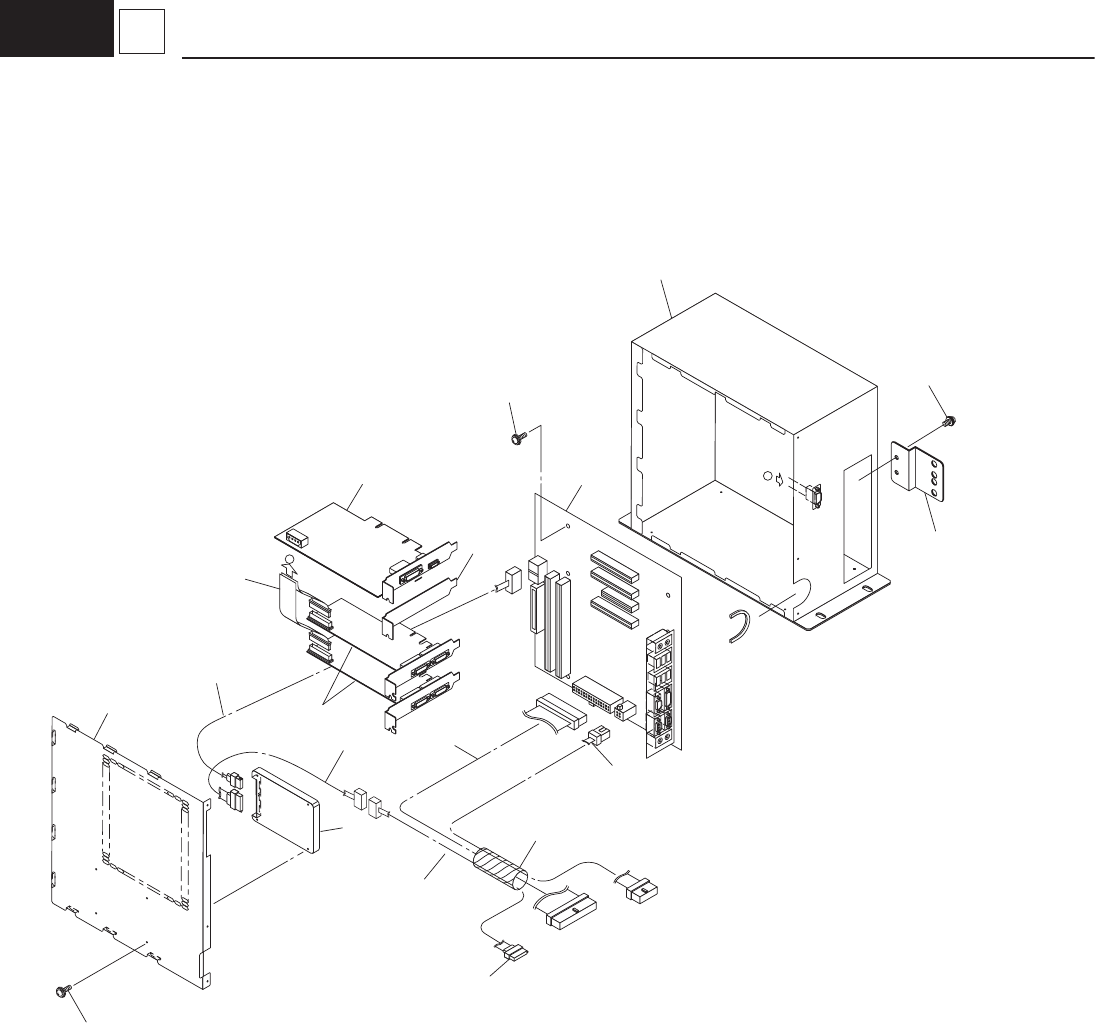

CPU BOX SECTION
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
1 KYB-M410H-00 1010GD0H CPU-BOX 1
2 KYB-M4105-00 1005GD14 MOTHER BOARD 1 U91
3 KYB-M4104-00 1005GD12 FRAME GRABBER BOARD 1 U92
4 KYB-M730G-00 1005GD1A FG BOARD 2 U93, U94
5 KYB-M410Y-00 23N30719 ACCESS-WIRING 1
6 KYA-M4106-00 1005GD1E HNS,PIO-IN-CPUBOX 1
7 KYA-M4104-00 10051A5S SSD-COPY 1 D89
8 KYB-M4106-00 1005GD17 CABLE(SATA) 1
9 KYB-M4107-00 1005GD18 CABLE(SATA-P) 1
10 90990-11J009 221DA051 SCREW,PAN HEAD WW 16
12 KYB-M410L-00 0921A024 COIL-TUBE 1
13 KYB-M4114-00 23N30011 CONVEX BASES 1
14 KYB-M410T-00 1005GD27 USB-BRACKET 1
15 KYB-M410R-00 1005BC4M CORD-ATX-MAIN 1
16 KYB-M4103-00 1005BC4N CORD-ATX-HD 1
17 KYB-M410S-00 1005BC4P CORD-ATX12V 1
