– 55 – EL EC T R I C A L S EC T I O N 2 1509-002 No. Part No. Part Name Qty . Detail Y amaha Hitachi 10 KY A-M650D-00 1005BA0T PLA TE 1 11 KY A-M655G-00 1005BA0N SUPPORT 2 15 91312-05008 221AA028 BOL T ,HEX.SOCKET HEAD 2…

100%1 / 176
– 54 –

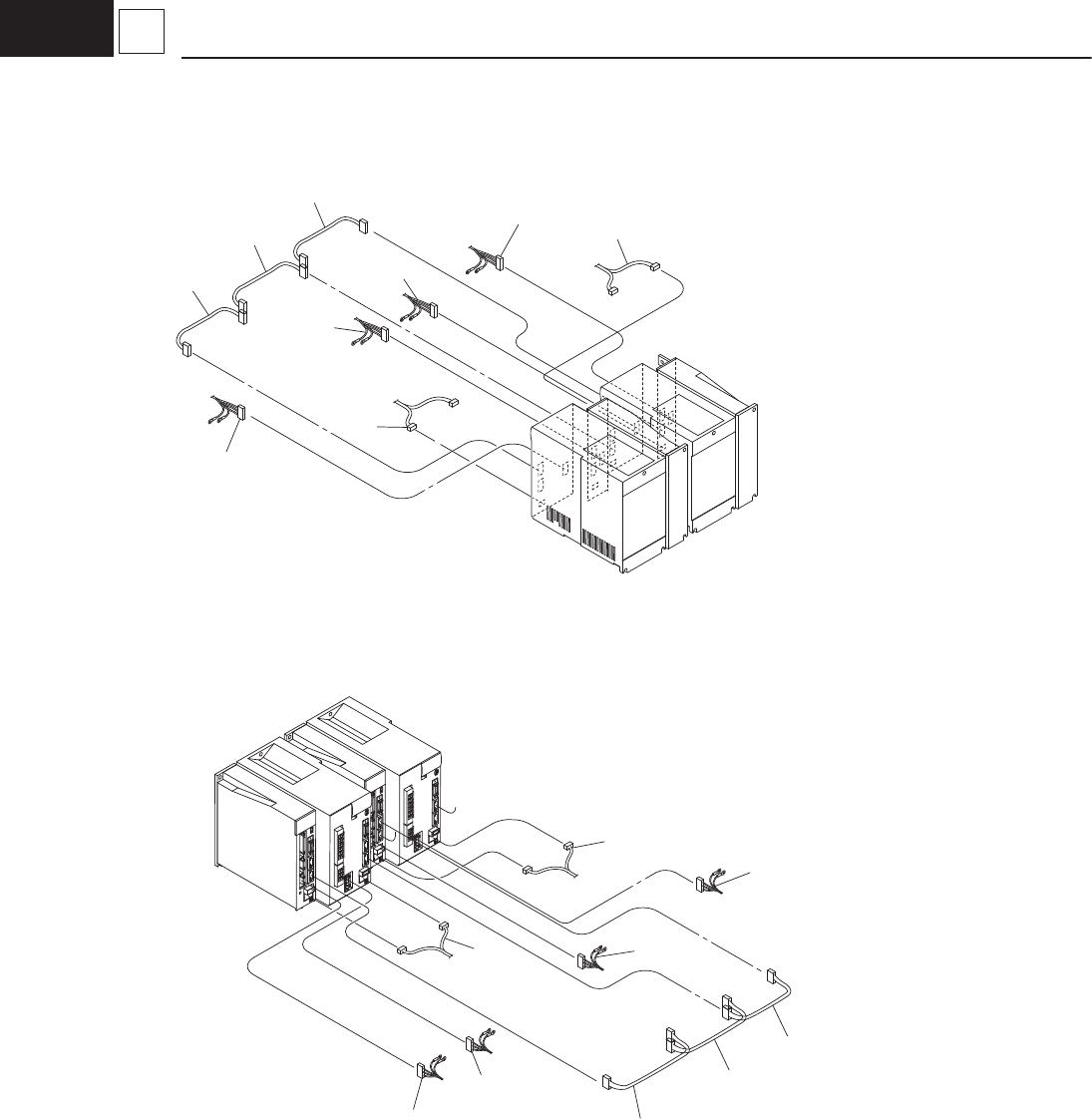

D3
1 Fixed Screw
1509-002
39
40
43
43
43
43
38
37
36
35
32
31
42
33
34
41
43
43
– 55 –
ELECTRICAL SECTION 2
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
10 KYA-M650D-00 1005BA0T PLATE 1
11 KYA-M655G-00 1005BA0N SUPPORT 2
15 91312-05008 221AA028 BOLT,HEX.SOCKET HEAD 22
16 KYA-M655U-00 1005BA5U EARTH BAR 2
20 90990-11J018 221DA052 SCREW,PAN HEAD WW 4
21 98502-05006 221DA038 SCREW,PAN HEAD 10
22 92902-05200 221HA105 WASHER,PLAIN 10
25 90990-11J016 221DA053 SCREW,PAN HEAD WW 6
31 KYA-M6529-00 1005BC11 HNS,XY-ENCORD 1
32 KYA-M652A-00 1005BC12 HNS,XY-ENCORD 1
33 KYA-M652B-00 1005BC13 HNS,XY-ENCORD 1
34 KYA-M652C-00 1005BC14 HNS,XY-ENCORD 1
35 KYA-M652D-00 1005BC15 HNS,X-MOTOR11 1
36 KYA-M652E-00 1005BC16 HNS,Y-MOTOR11 1
37 KYA-M652F-00 1005BC17 HNS,X-MOTOR12 1
38 KYA-M652G-00 1005BC18 HNS,Y-MOTOR12 1
39 KYA-M652H-00 1005BC19 HNS,X-MOTOR21 1
40 KYA-M652J-00 1005BC1A HNS,Y-MOTOR21 1
41 KYA-M652K-00 1005BC1B HNS,X-MOTOR22 1
42 KYA-M652L-00 1005BC1C HNS,Y-MOTOR22 1
43 KYB-M658W-00 4W204586 OPTICAL FIBER 6
44 KYA-M652M-00 1005BC2J HNS,LIGHT-POWER 1
50 KYA-M6508-00 10051A4H CABLE-AC-ASSY 1 FIG D3-2
51 KYA-M6509-00 10051A4J CABLE-DC-ASSY 1 FIG D3-3
52 KYA-M6511-00 10051A4K ASSY-SIDE-PANEL 1 FIG D3-4
53 KYA-M6512-00 10051A4L ASSY-XY-SERVO 2 FIG D3-5
54 KYA-M650A-00 10051A4M ASSY-UC18 1 FIG D3-6
55 KYA-M6517-00 10051A56 ASSY-U95 1 FIG D3-7
– 56 –
D3
2 AC Terminal
1509-002
106
107
110
108
109
109
102
105
103
104
