– 59 –

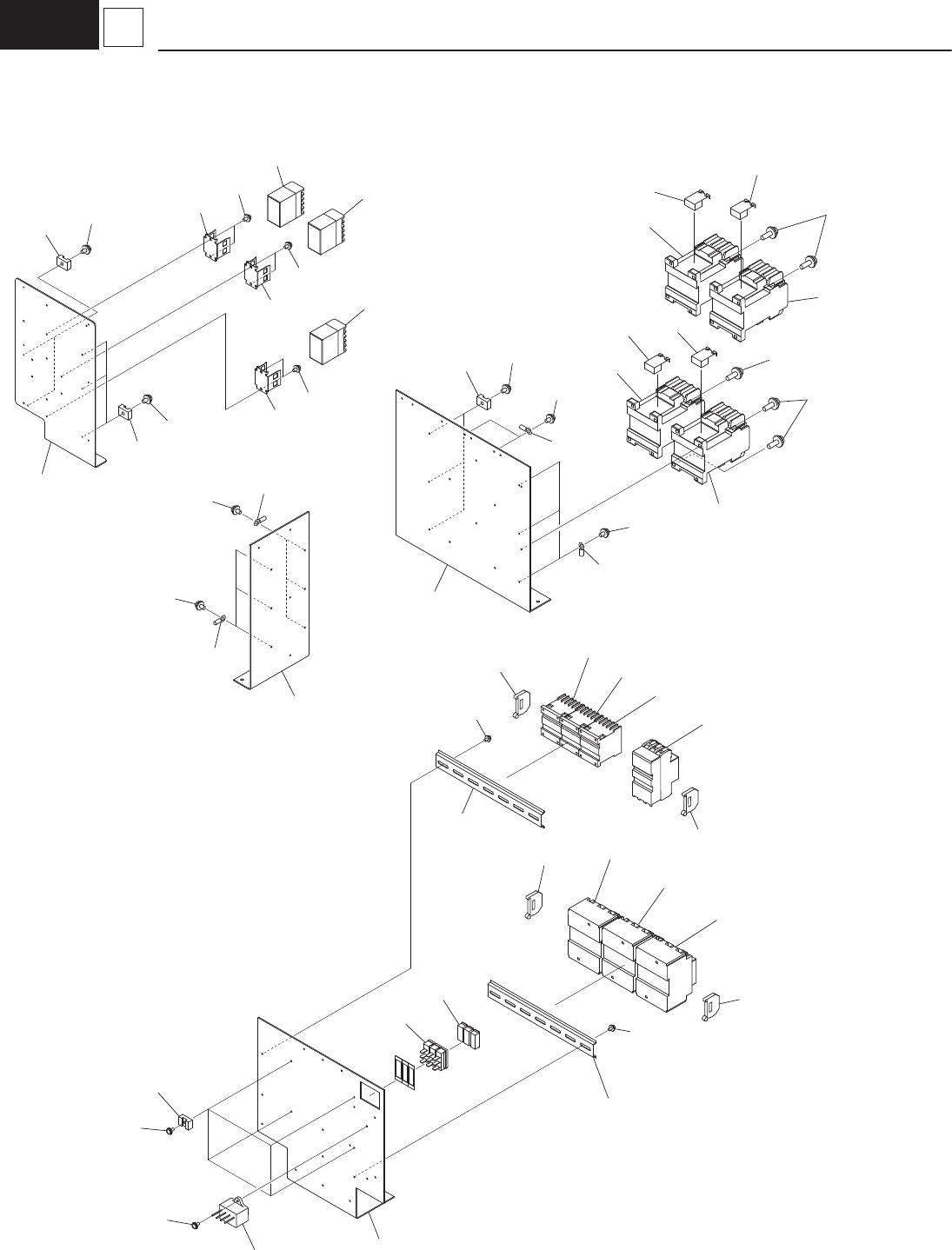

ELECTRICAL SECTION 2
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
272 KYA-M6566-00 4J320271 TERMINAL 4
273 KYA-M6564-00 23N30716 ACCESSORY-WIRING 1
274 KYA-M6565-00 23N30718 ACCESSORY-WIRING 2
275 KYB-M65BC-00 4J320187 TERMINAL 29
276 KYB-M65BD-00 4J320241 TERMINAL 1
277 KYB-M941P-00 23N30519 ACCESS-WIRING 6
278 KYA-M6561-00 23N30520 ACCESSORY 2
279 KYA-M6562-00 23N30521 ACCESSORY 2
280 KYA-M6563-00 23N30522 ACCESSORY 1
281 KYB-MD723-00 0914B30E FUSE HOLDER 2
282 KYB-M65BN-00 4S300023 FUSE-250V-6.3A 2 F002, 007
283 KYB-M6587-00 23N10027 TERMINAL 2
284 KYB-MD726-00 0949A01R NAME PLATE 1
285 KYB-MD72N-00 0980A214 END PLATE 1
291 KYB-M65BK-00 4S200121 RELAY 1 K3
292 KYB-M6562-00 0914B307 SWITCH-CONTROLLER 1 K4
294 KYB-MD72N-00 0980A214 ENDPLATE 2
