P-327-002_SIGMA-F8主机部品分解图 - 第68页

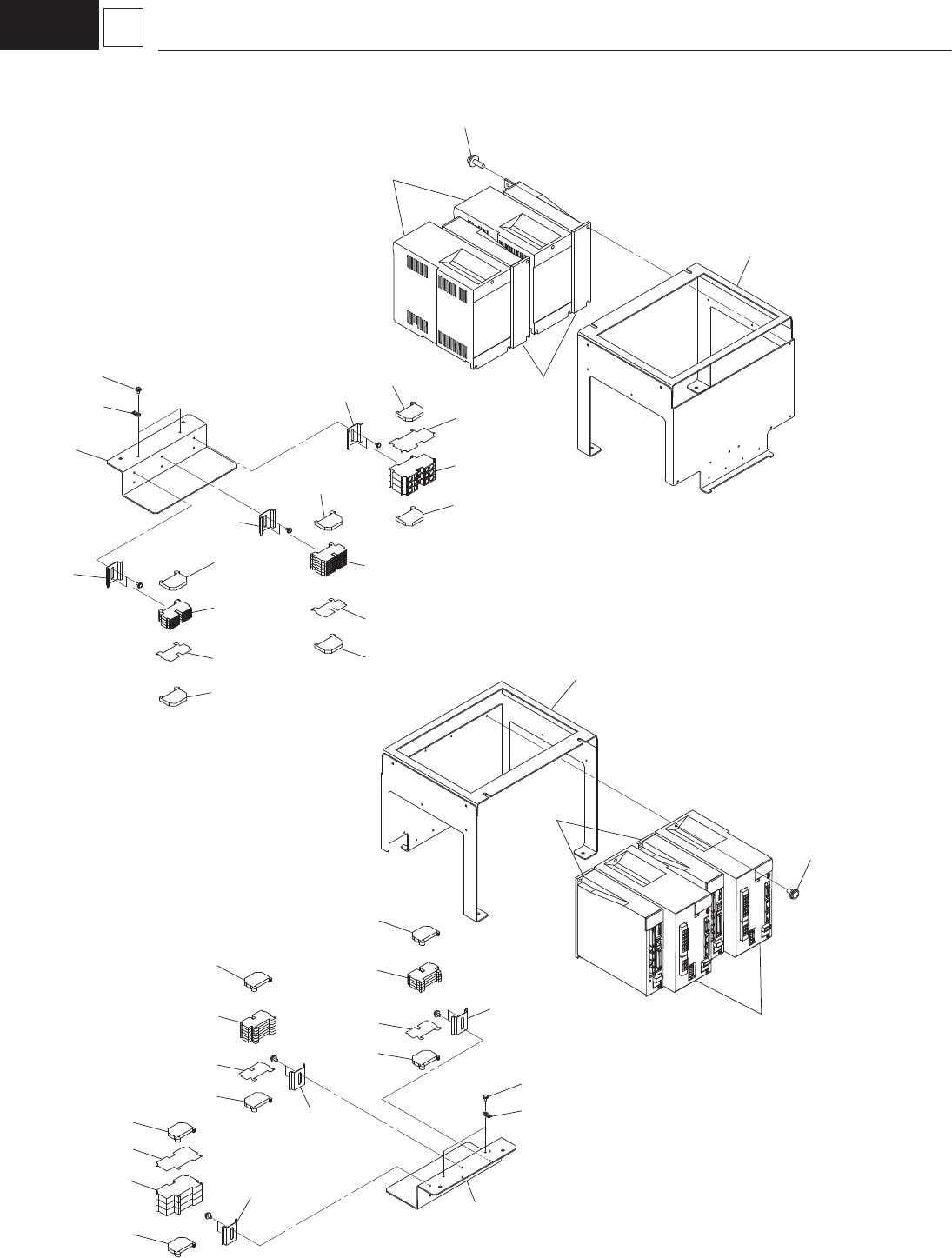

– 62 – D3 5 XY Servo 1509-002 401 403 405 405 405 406 406 408 406 408 406 407 409 414 407 409 414 406 406 414 410 402 404 415 416 413 412 401 403 415 416 413 405 405 405 406 406 406 406 406 406 407 409 414 414 410 407 40…
– 61 –
ELECTRICAL SECTION 2
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
301 KYA-M651D-00 1005BA0V PANEL 1
302 KYA-M651N-00 1005BA2R PANEL 1
303 KYA-M651H-00 1005BA15 PANEL 1
304 KYA-M651E-00 1005BA0X PANEL 1
305 KYB-M65BL-00 4S210127 EM-CONTACTOR 1 K29
306 KYB-M65BL-00 4S210127 EM-CONTACTOR 1 K28
307 KYB-M65BL-00 4S210127 EM-CONTACTOR 1 K10
308 KYB-M65BL-00 4S210127 EM-CONTACTOR 3 F201-203
309 KYA-M656H-00 4J200032 FUSE-HOLDER 3
310 KYB-M656T-00 1005BA2N BREAKER 1 Q206
311 KYA-M655M-00 1005BA3F BREAKER 1 Q221F
312 KYA-M655M-00 1005BA3F BREAKER 1 Q221R
313 KYB-M65AX-00 23N30651 ACCESS-WIRING 1
314 KYB-M65BM-00 4S250321 CIRCUIT-PROTECTOR 1 Q205
317 KYB-M65BJ-00 4S200100 RELAY 1 K10
318 KYB-M65AN-00 23N10019 BRACKET-WIRING 1
319 KYB-M658K-00 23N30708 ACCESS-WIRING 1
320 KYB-M65BJ-00 4S200100 RELAY 2 K75, 77
321 KYB-M65AN-00 23N10019 BRACKET-WIRING 2
322 KYB-M658K-00 23N30708 ACCESS-WIRING 2
323 KYB-M658L-00 4F400028 COMP-CR 1
324 KYB-M658S-00 4S210132 EM-CONTACTOR 1 K33A
325 KYB-M658L-00 4F400028 COMP-CR 1
326 KYB-M658S-00 4S210132 EM-CONTACTOR 1 K33B
327 KYB-M658L-00 4F400028 COMP-CR 1
328 KYB-M658S-00 4S210132 EM-CONTACTOR 1 K33C
329 KYB-M658L-00 4F400028 COMP-CR 1
330 KYB-M658S-00 4S210132 EM-CONTACTOR 1 K33D
331 KYA-M656L-00 4V360007 SEMICO-VARISTOR 1 F200
332 KYB-M6569-00 0914B35Y DIODE 3
334 KYB-MD749-00 23N00098 RAIL-WIRING 1
336 KYC-M187V-00 23N00099 RAIL_WIRING 1
337 KYB-M6587-00 23N10027 TERMINAL 8
340 90990-11J016 221DA053 SCREW,PAN HEAD WW 29
341 90990-11J019 221DA063 SCREW,PAN HEAD WW 8
343 KYB-M65AB-00 226J0373 MOUNTING_BASE 8
344 KYB-M65AW-00 23N30632 WIRING 11
– 63 –
ELECTRICAL SECTION 2
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
401 KYA-M650E-00 1005BA12 BRACKET 1
402 KYA-M651L-00 1005BA2D UNIT-DRIVER 2 A21-11,-12,-21,-22
403 KYA-M651K-00 1005BA2C UNIT-DRIVER 2 A22-11,-12,-21,-22
404 90990-11J022 221DA055 SCREW,PAN HEAD WW 10
405 KYA-M655W-01 1005BA60 RAIL-WIRING 3
406 KYB-M941N-000 23N10027 BRACKET-WIRING 5
407 KYB-M65BC-00 4J320187 TERMINAL 10
408 KYB-M65AV-00 23N30612 ACCESS-WIRING 2
409 KYB-M941P-00 23N30519 ACCESS-WIRING 5
410 KYA-M6566-00 4J320271 TERMINAL 3
412 KYA-M6564-00 23N30716 ACCESSORY-WIRING 1
413 KYA-M655K-00 1005BA2J BRACKET 1
414 KYB-M65AU-00 23N30524 ACCESS-WIRING 1
415 90990-11J016 221DA053 SCREW,PAN HEAD WW 8
416 KYB-M65AW-00 23N30632 WIRING 2
