– 70 –
D4

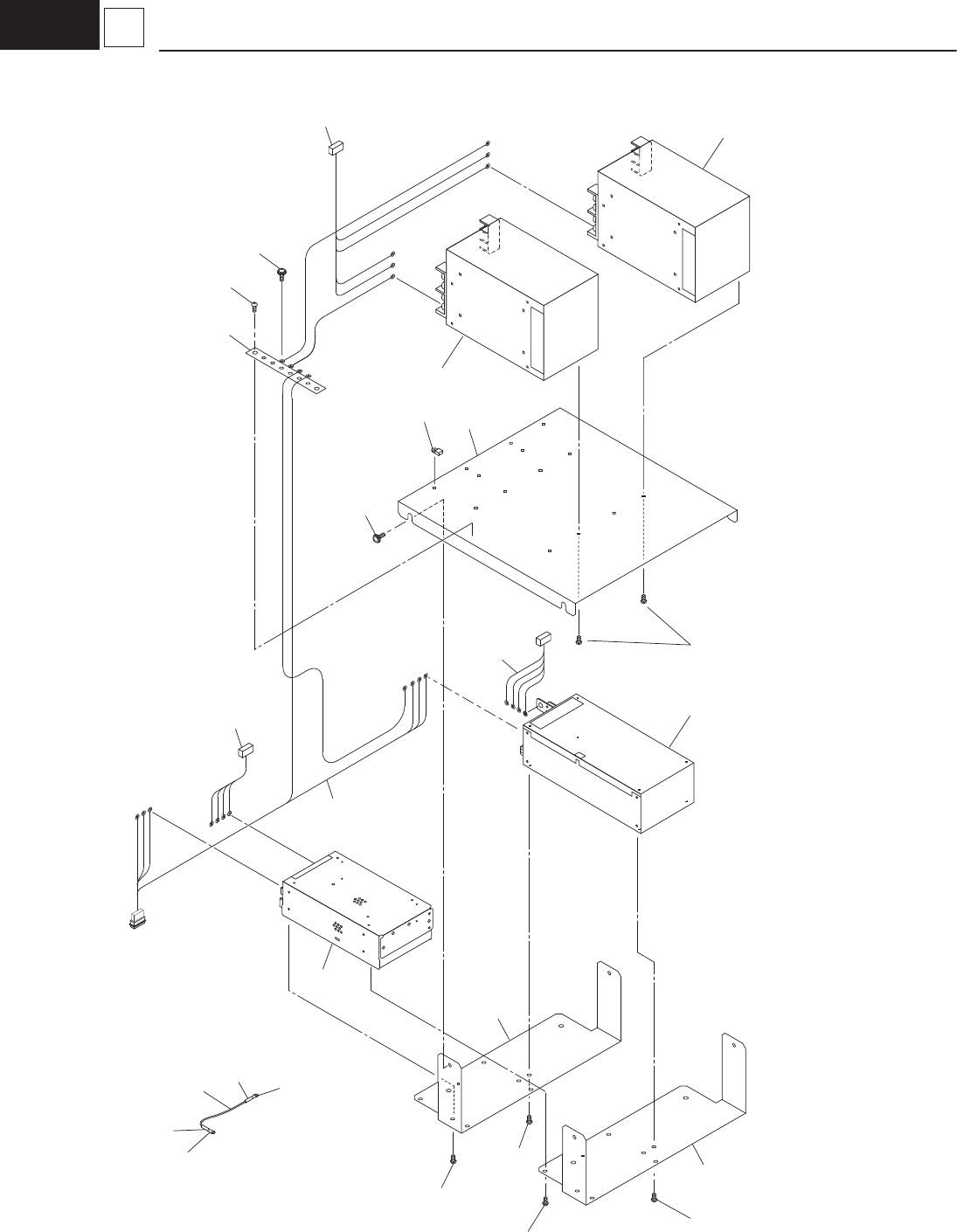

D4 DC POWER SUPPLY SECTION
1 CPU 1 Box
1509-002
13
11
2
3
1
1
20
15
15
15
15
16
10
5
5
6
4
17
21
19
18
12
G3
XG1
XG2
XG3
G1
G7
G2
25
25
23
24
22
– 71 –
DC POWER SUPPLY SECTION
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
1 KYB-M656V-00 1005BA3L UNIT-POWER 2 G1, G3
2 KYB-M658T-00 4U200335 UNIT-POWER 1 G2
3 KYA-M651S-00 1005BA5T UNIT-POWER 1 G7
4 KYA-M651F-00 1005BA10 COVER 1
5 KYA-M651T-00 1005BA5Z PS-BOX 2
6 KYA-M655U-00 1005BA5U EARTH BAR 1
10 KYA-M652P-00 1005BC31 HNS,200V-POWER 1
11 KYA-M652R-00 1005BC32 HNS,G1-G3-OUT1 1
12 KYA-M652T-00 1005BC34 HNS,G2-OUT1 1
13 KYA-M652V-00 1005BC36 HNS,G7-OUT 1
15 98702-04008 221DA114 SCREW,FLAT HEAD 8
16 90990-66J017 221DA221 SCREW,TRUSS HEAD 4
17 90990-01J143 221AA101 BOLT,HEX.S/H WW 8
18 98502-05006 221DA038 SCREW,PAN HEAD 5
19 92902-05200 221HA105 WASHER,PLAIN 5
20 KYB-M65AW-00 23N30632 WIRING 4
21 90990-11J018 221DA052 SCREW,PAN HEAD WW 2
22 KYA-M654V-00 0798I03D HNS,PLATFORM 1
23 KYA-M655A-00 0900I012 CAB-JOINTTERMIN 4
24
KYB-M65BB-00
4J300207 CAB_JOINTTERMIN 4
25
KYB-M851P-00
225G1024 VINIL TUBE 1
1509-002
– 72 –
D4

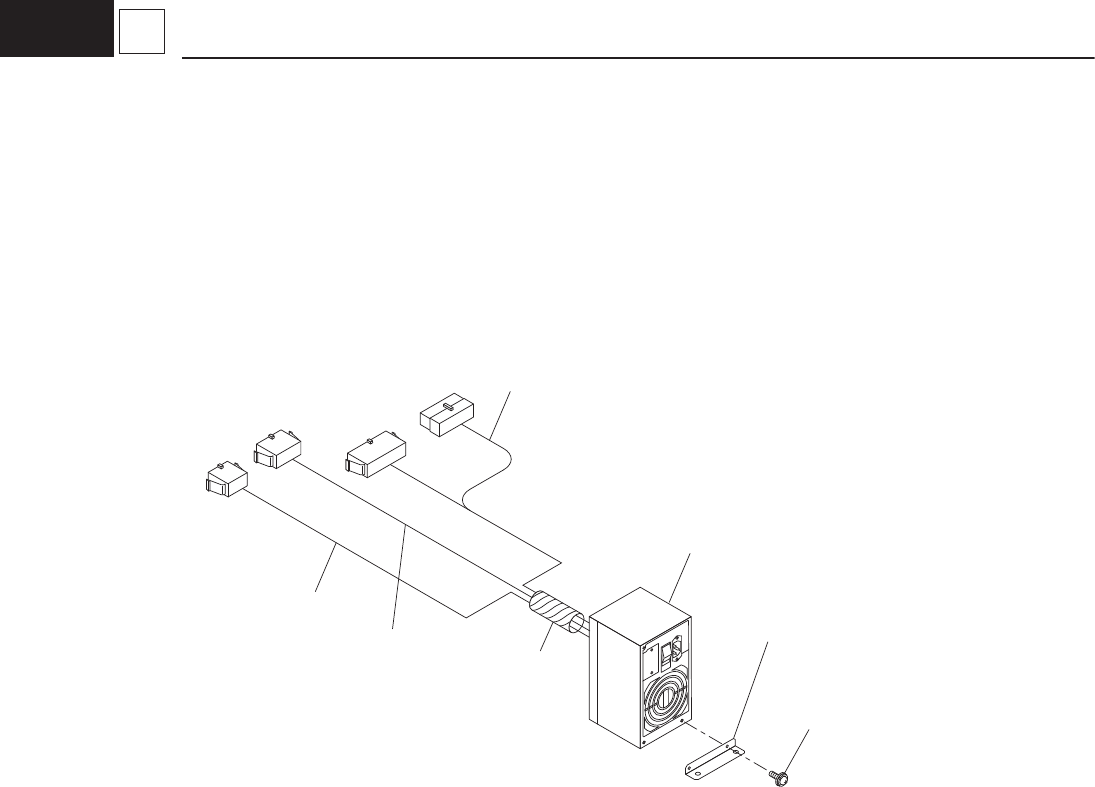

2 ATX Power
1509-002
102
101
110
111
112
103
CPU1
CPU2
G21
ATX-HDJ
ATX-12VJ
113
