– 76 – D5 1 Frame Section 1509-002 11 55 54 55 54 53 54 53 54 52 51 62 63 65 64 64 65 61 63 62 26 26 24 21 22 24 25 22 21 23 25 D5 AIR SUPPL Y SECTION

100%1 / 176
– 75 –
DC POWER SUPPLY SECTION
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
201 KYA-M655S-00 1005BA4D PANEL 1
202 KYB-M658N-00 4J300191 CABLE-JOINT-TERMINAL 3
203 KYB-M852B-00 23K10390 CASE-CONN 1
204 KYB-M6588-00 23N20103 TUBE-WIRING 1
205 KYA-M410A-00 23N20113 TUBE_WIRING 1
206 KYB-MD73A-00 23N20112 TUBE_WIRING 1
207 KYB-M852E-00 23N30737 ACCESS-WIRING 1
209 KYA-M6567-00 4M130041 MOTOR-DC 1 M106
210 KYB-M65AM-00 23M00062 ACCESSORY-MOT-M 2
211 KYA-M656G-00 23M00064 ACCESSORY-MOT-M 1
212 KYB-M410J-00 0914BA17 FAN_SUPPORT 1
213 90990-09J012 221DA142 SCREW,FLAT HEAD 4
214 92902-04200 221HA104 WASHER,PLAIN 4
215 95302-04600 221FA007 NUT,HEXAGON 4
1509-002
– 76 –
D5
1 Frame Section
1509-002
11
55
54
55
54
53
54
53
54
52
51
62
63
65
64
64
65
61
63
62
26
26
24
21
22
24
25
22
21
23
25

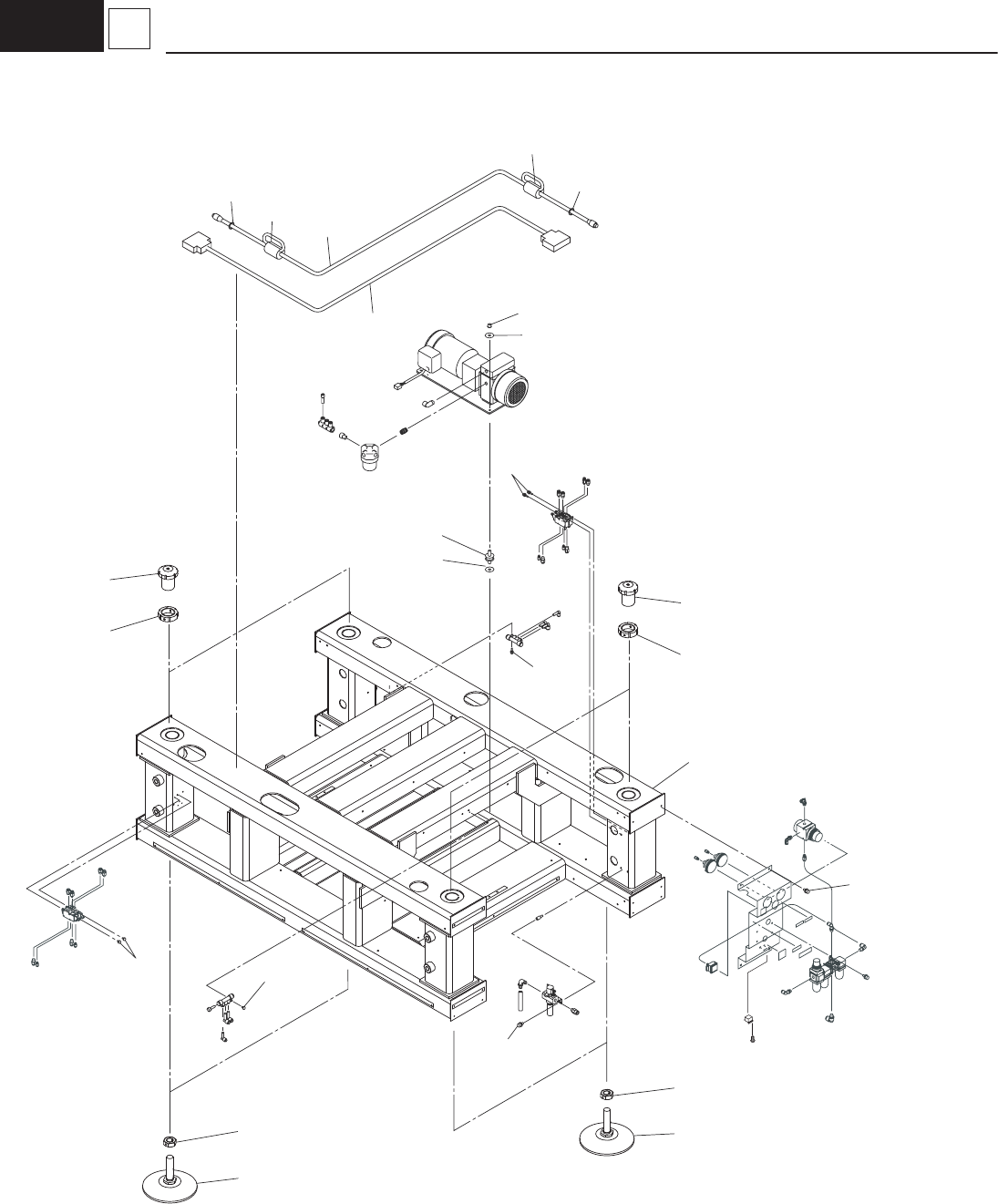

D5 AIR SUPPLY SECTION
– 77 –
AIR SUPPLY SECTION
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
11 KYA-M850A-00 0914B1A6 RUBBER_PAD 4
21 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 8
22 91312-04025 221AA022 BOLT,HEX.SOCKET HEAD 4
23 91312-05008 221AA028 BOLT,HEX.SOCKET HEAD 4
24 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 6
25 92902-05600 221HA205 WASHER,PLAIN 6
26 KYB-M65AA-00 221HA303 ROHS_WASHER 8
31 KYB-M850T-00 1005AB00 PIPE_FITTINGS 6
32 KYB-M850X-00 1005AB05 PIPE_FITTINGS 4
33 KYB-M8514-00 1005AB0T PIPE_FITTINGS 1
34 KYB-M8515-00 1005AB0W PIPE_FITTINGS 6
35 KYB-M8517-00 1005AB0Y PIPE_FITTINGS 3
36 KYB-M8516-00 1005AB0X PIPE_FITTINGS 5
37 KYA-M850L-00 1005AB0Z PIPE_FITTINGS 2
38 KYB-M852A-00 225F0700 PIPE_FITTINGS 1
41 KYA-M850P-00 1005BB10 TUBE_D6 1
42 KYA-M850T-00 1005BB15 TUBE_D8 1
43 KYA-M850R-00 1005BB12 TUBE_D10 1
44 KYA-M850S-00 1005BB13 TUBE_D6_BU 1
45 KYA-M850U-00 1005BB16 TUBE_D8_BU 4
46 KYB-M850M-00 0914B206 TUBE_D10_BU 1
51 KYB-M8519-00 1005BC5X CORD-DVI-5M 1
52 KYB-M851A-00 1005BC6T CORD-USB-A-A 1
53 KYB-M658H-00 23N30590 ACCESS-WIRING 2
61 KYA-M1104-00 1005BK0X FRAME(LOWER) 1
62 KYB-M851B-00 1005BK0B BOLT_CONNECT 4
63 KYB-M851C-00 1005BK0C NUT_CONNECT 4
64 KYB-M851F-00 221B0134 BOLT_HEX 4
65 KYB-M851G-00 221G0219 NUT 4
