– 80 – D5 2 Air Combination Unit, V accum Pump 1509-002 124 112 124 134 117 126 122 123 117 113 131 132 133 125 114 111 See Fig. D5-1 M66 S141 Key No.1 1,26 See Fig. D5-1 Key No.61 11 127 119 125 121 123 120 116 145 147 …

100%1 / 176
– 79 –
AIR SUPPLY SECTION
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
11 KYA-M850A-00 0914B1A6 RUBBER_PAD 4
21 91312-04008 221AA016 BOLT,HEX.SOCKET HEAD 8
22 91312-04025 221AA022 BOLT,HEX.SOCKET HEAD 4
23 91312-05008 221AA028 BOLT,HEX.SOCKET HEAD 4
24 91312-05012 221AA030 BOLT,HEX.SOCKET HEAD 6
25 92902-05600 221HA205 WASHER,PLAIN 6
26 KYB-M65AA-00 221HA303 ROHS_WASHER 8
31 KYB-M850T-00 1005AB00 PIPE_FITTINGS 6
32 KYB-M850X-00 1005AB05 PIPE_FITTINGS 4
33 KYB-M8514-00 1005AB0T PIPE_FITTINGS 1
34 KYB-M8515-00 1005AB0W PIPE_FITTINGS 6
35 KYB-M8517-00 1005AB0Y PIPE_FITTINGS 3
36 KYB-M8516-00 1005AB0X PIPE_FITTINGS 5
37 KYA-M850L-00 1005AB0Z PIPE_FITTINGS 2
38 KYB-M852A-00 225F0700 PIPE_FITTINGS 1
41 KYA-M850P-00 1005BB10 TUBE_D6 1
42 KYA-M850T-00 1005BB15 TUBE_D8 1
43 KYA-M850R-00 1005BB12 TUBE_D10 1
44 KYA-M850S-00 1005BB13 TUBE_D6_BU 1
45 KYA-M850U-00 1005BB16 TUBE_D8_BU 4
46 KYB-M850M-00 0914B206 TUBE_D10_BU 1
51 KYB-M8519-00 1005BC5X CORD-DVI-5M 1
52 KYB-M851A-00 1005BC6T CORD-USB-A-A 1
53 KYB-M658H-00 23N30590 ACCESS-WIRING 2
61 KYA-M1104-00 1005BK0X FRAME(LOWER) 1
62 KYB-M851B-00 1005BK0B BOLT_CONNECT 4
63 KYB-M851C-00 1005BK0C NUT_CONNECT 4
64 KYB-M851F-00 221B0134 BOLT_HEX 4
65 KYB-M851G-00 221G0219 NUT 4
– 80 –

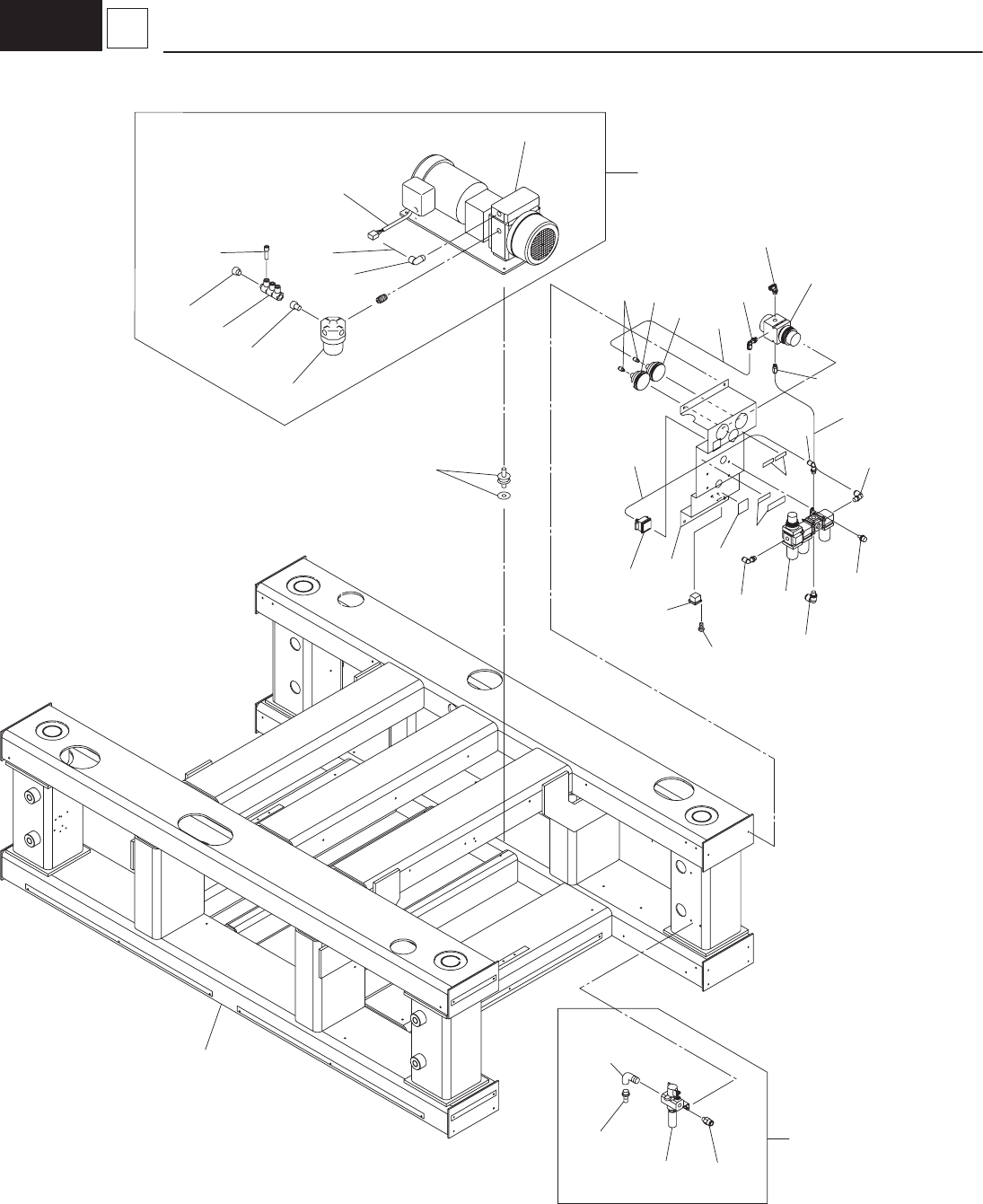

D5
2 Air Combination Unit, Vaccum Pump
1509-002
124
112
124
134
117
126
122
123
117
113
131
132
133
125
114
111
See Fig. D5-1
M66
S141
Key No.11,26
See Fig. D5-1
Key No.61
11
127
119
125
121
123
120
116
145
147
146
144
143
142
141
151
141
152
104
105
101
103
102
135
5
– 81 –
AIR SUPPLY SECTION
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
101 KYB-M850F-00 225B0593 AIR_LINE_EQPT 1
102 KYB-M8520-00 225F0073 PIPE_FITTINGS 1
103 $KK130P-02MS 1005BB17 AIR_COUPLER_PLUG 1
104 KYB-M8512-00 1005AB09 PIPE_FITTINGS 1
105 KYB-M8506-00 10051B0K ASSY_AIR-SUP-1 1
111 KYB-M851Y-00 225D0089 VACUUM_PARTS 1
112 KYB-M850G-00 225B0594 AIR_LINE_EQPT 1
113 KYB-M8505-00 09141A08 ASSY_SWITCH 1 S141
114 KYB-M851W-00 225B0501 AIR_LINE_EQPT 1
115 KYA-M8507-00 1005BB0D PLATE_AIR-SUP 1
116 KYB-M850H-00 0914B10N REGULATOR 1
117 KYB-M11A0-30 1005BB0E NAME-PLATE(AIR) 1
119 KYB-M850W-00 1005AB04 PIPE_FITTINGS 2
120 KYB-M8510-00 1005AB07 PIPE_FITTINGS 1
121 KYB-M711J-00 225F0550 PIPE_FITTINGS 1
122 KYB-M8524-00 225F0439 PIPE_FITTINGS 1
123 KYB-M8526-00 225F0559 PIPE_FITTINGS 2
124 KYB-M851L-00 225F0708 PIPE_FITTINGS 2
125 KYA-M850M-00 1005BB0T TUBE_D6 1
126 KYA-M850N-00 1005BB0U TUBE_D8 1
127 90990-11J022 221DA055 SCREW,PAN HEAD WW 4
131 KYB-M852C-00 23K20117 CASE-CONN 1
132 KYB-M852D-00 23K20118 CASE-CONN 1
133 KYB-M852F-00 4J100919 CONNECTOR 1
134 KYA-M8509-00 09141351 ASSY,NAME PLATE 1
135 98502-03008 221DA011 SCREW,PAN HEAD 4
141 KYB-M8518-00 1005BB1A VACUUM_PUMP 1 M66
142 $MBA1403 225F0107 PIPE_FITTINGS 1
143 KYB-M8521-00 225F0106 PIPE_FITTINGS 3
144 $MPG14 225F0108 PIPE_FITTINGS 1
145 KYA-M850J-00 225F0692 PIPE_FITTINGS 1
146 KYA-M850K-00 225B0551 AIR_LINE_EQPT 1
147 KYB-M850M-00 0914B206 TUBE_D10_BU 1
151 KYA-M8508-00 1005BC3D HNS,PUMP1 1
152 KYA-M8502-00 10051B0J ASSY_V-PUMP 1
