P-327-002_SIGMA-F8主机部品分解图 - 第90页
– 84 –
– 83 –
AIR SUPPLY SECTION
1509-002
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
200 KYA-M850B-00 10051B0M ASSY_S-VALVE-H1 1
201 KYA-M8503-00 10051A52 ASSY,VALVE Y20117 1 Y20117
202 KYB-M850W-00 1005AB04 PIPE_FITTINGS 1
203 KYB-M850V-00 1005AB02 PIPE_FITTINGS 1
204 KYB-M850Y-00 1005AB06 PIPE_FITTINGS 1
205 KYB-M8510-00 1005AB07 PIPE_FITTINGS 1
210 KYA-M850C-00 10051B0N ASSY_S-VALVE-H2 1
211 KYA-M8504-00 10051A53 ASSY,VALVE Y20118 1 Y20118
212 KYB-M850W-00 1005AB04 PIPE_FITTINGS 2
213 KYB-M850V-00 1005AB02 PIPE_FITTINGS 3
214 KYB-M850Y-00 1005AB06 PIPE_FITTINGS 1
215 KYB-M8510-00 1005AB07 PIPE_FITTINGS 1
220 KYA-M850D-00 10051B0D ASSY_S-VALVE-H3 1
221 KYA-M8505-00 10051A54 ASSY,VALVE Y30117 1 Y30117
222 KYB-M850W-00 1005AB04 PIPE_FITTINGS 1
223 KYB-M850V-00 1005AB02 PIPE_FITTINGS 1
224 KYB-M850Y-00 1005AB06 PIPE_FITTINGS 3
225 KYB-M8510-00 1005AB07 PIPE_FITTINGS 1
230 KYA-M850E-00 10051B0Q ASSY_S-VALVE-H4 1
231 KYA-M8506-00 10051A55 ASSY,VALVE Y30118 1 Y30118
232 KYB-M850W-00 1005AB04 PIPE_FITTINGS 2
233 KYB-M850V-00 1005AB02 PIPE_FITTINGS 3
234 KYB-M850Y-00 1005AB06 PIPE_FITTINGS 1
235 KYB-M8510-00 1005AB07 PIPE_FITTINGS 1
240 KYB-M850R-00 10051B0R ASSY_MANIFOLD-1 1
241 KYB-M8528-00 225F0578 PIPE_FITTINGS 1
242 KYB-M8513-00 1005AB0H PIPE_FITTINGS 2
250 KYB-M850S-00 10051B0S ASSY_MANIFOLD-2 1
251 KYB-M8528-00 225F0578 PIPE_FITTINGS 1
252 KYB-M8513-00 1005AB0H PIPE_FITTINGS 2
253 KYB-M851M-00 225F0712 PIPE_FITTINGS 2
– 84 –
– 85 –

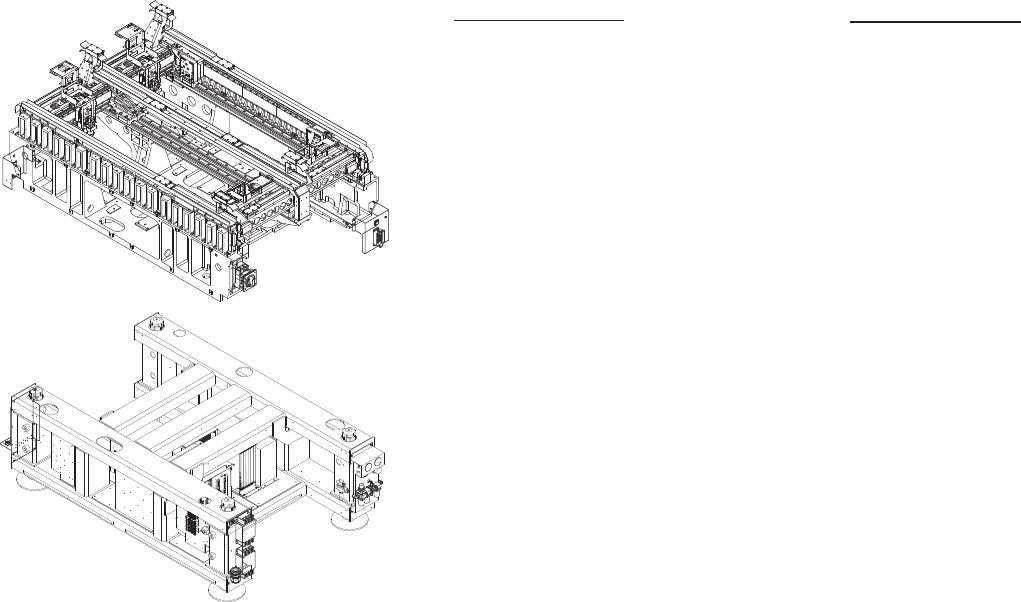

UPPER FRAME
CONTENTS
E1 BEAM SECTION 86
1 Upper Frame Unit 86
2 X Beam Unit 1 88
3 X Beam Unit 2 90
E2 CUTTER SECTION 92
1 Cutter 92
E3 COMPONENT RECOGNITION
SECTION 94
1 Recognition Camera F 94
2 Recognition Camera R 96
E4 POSITIONING SECTION 98
1 Gear 98
2 Sensor 100
3 Frame L 102
4 Frame R 104
5 Air Piping 106
E5 ELECTRICAL SECTION
(Surroundings) 108
1 I/F Connector 108
2 Breaker, Noise Filter 110
3 I/F Board 112
