SIPLACE HS-50 2 Retrofitting Instructions: Mechanical Ceramic Subs trate Centering HS-50 01/01 Issue 2.5 Sequence of Retrofitting 75 Å Clean the Loctit e resid ues from the thread s of the 2 special screws fo r each tabl…
2 Retrofitting Instructions: Mechanical Ceramic Substrate Centering HS-50 SIPLACE HS-50
2.5 Sequence of Retrofitting 01/01 Issue
74

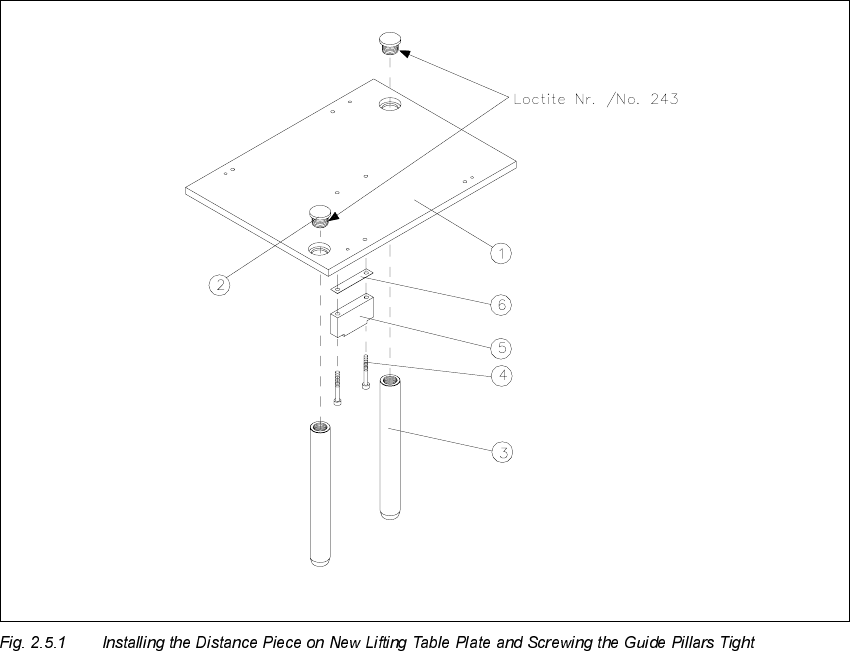

Å Remove the distance piece on the bottom of the relevant lifting table plate (2 socket hex head
cap screws M4 for each). During this process, remove the accompanying spacer plate (see
Fig. 2.5.1).
Å Install the distance piece including spacer plate on the bottom of the new lifting table plate (Item
no. see Section 2.4.2).
The 2 countersunk holes in the lifting table plate must point upward. The relief milling on the
distance piece must point upward so that the screw heads do not protrude.
.H\
1. Lifting table plate with fastening holes for mechanical ceramic substrate centering unit
2. 2 special screws secured with Loctite no. 243
(Locking screw M16 x 1.5 DIN 908, Item no. 00302081-01)
(requires a size 10 Allen wrench)
3. Guide pillars
4. 2 socket hex head cap screws M 4 x 16
5. Spacer plate
6. Distance piece, lifting table HS-50
SIPLACE HS-50 2 Retrofitting Instructions: Mechanical Ceramic Substrate Centering HS-50
01/01 Issue 2.5 Sequence of Retrofitting
75
Å Clean the Loctite residues from the threads of the 2 special screws for each table.
Å Place Loctite no. 243 (Item no. see Section 2.4.3) on the thread and bolt the guide pillars to
the lifting table plates.
Å Make certain that the longitudinal axis of the guide pillars is at right angles to the bottom of the
lifting table plate:
Å Place the lifting table plate upside down on the clean, flat surface of a table.
The guide pillars must be pointing up.
If necessary, use parallel clamp to fasten the lifting table plate to the table.
Å Place the long arm (L = approx. 160 mm) of the metal square against the guide pillar and
in the next step of work place the metal square with offset 90 degrees on the guide pillar.
If there is a deviation / gap, carefully align the pillar with the plastic hammer.
Å Do this for all 4 guide pillars of all of the modified lifting table plates.
Å Do NOT place the lifting table plates in the conveyor yet because the conveyor assemblies
have to be converted for the substrate conveyor first, as described below.
2 Retrofitting Instructions: Mechanical Ceramic Substrate Centering HS-50 SIPLACE HS-50
2.5 Sequence of Retrofitting 01/01 Issue
76

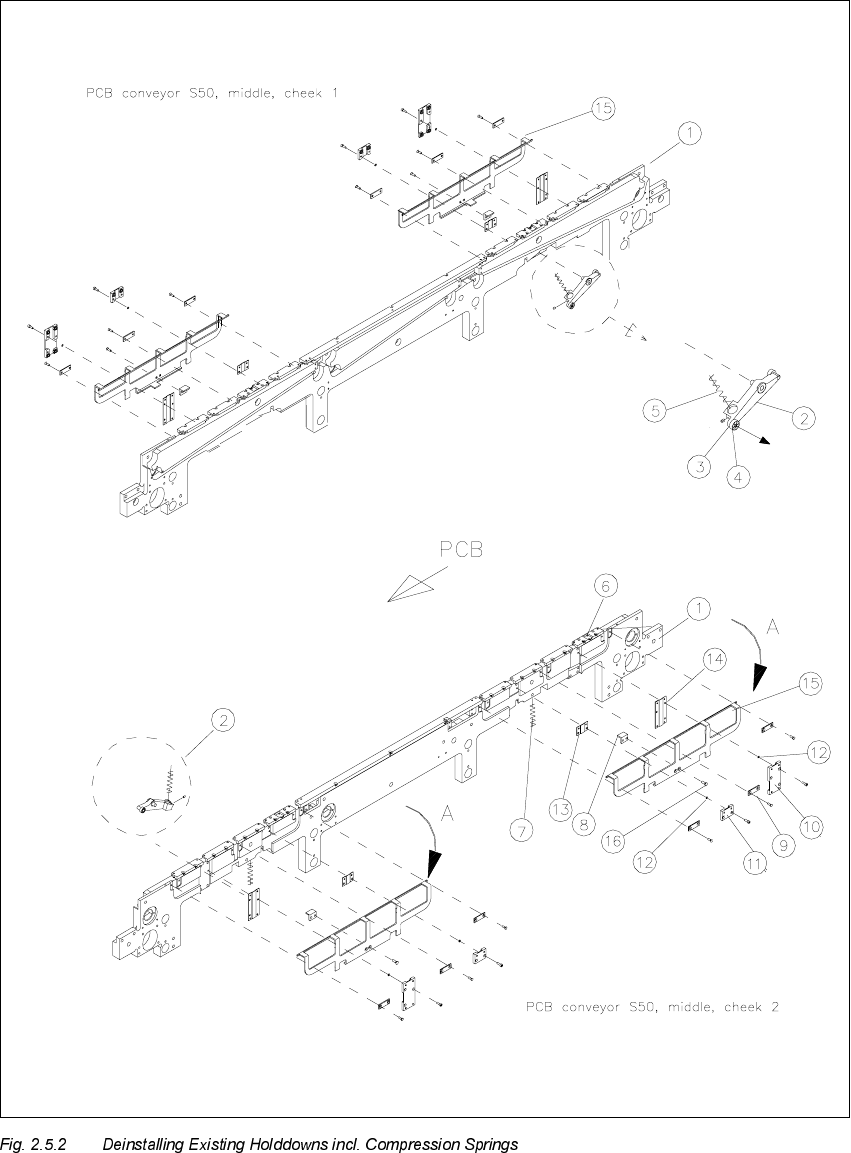

'HLQVWDOOLQJ([LVWLQJ+ROGGRZQV
