– 65 – ELEC TRI CA L S EC TIO N 2 2006-009 No. Part No. Part Name Qty . Detail Y amaha Hitachi 839 KYB-M652U-00 1010BA0V P ANEL 1 840 KYB-M6533-00 1010BA34 P ANEL SIDE-B2 1 841 KYB-M65AS-00 23N30497 RAIL-WIRING 1 842 KYB…
– 64 –
D3
2006-009

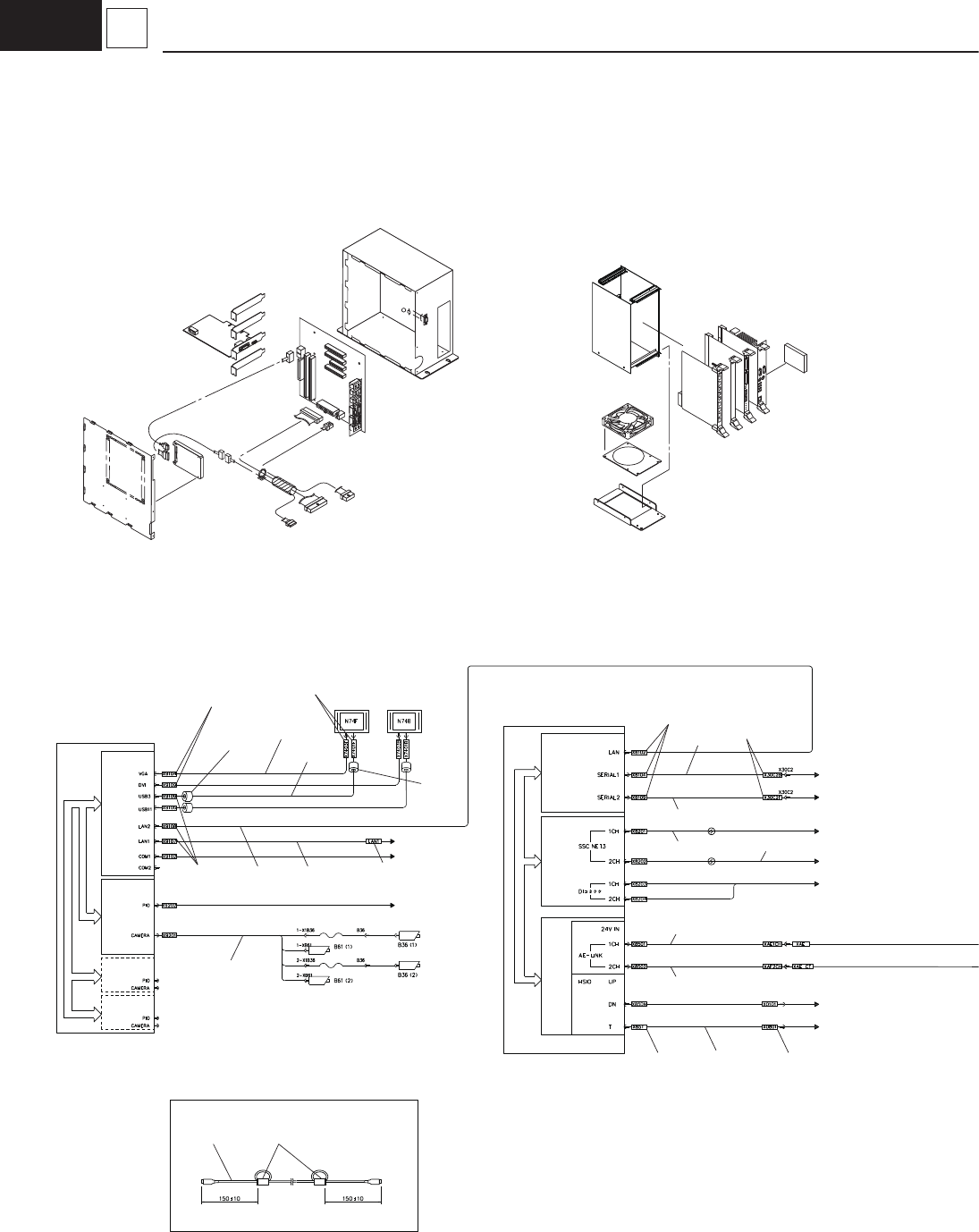

9 Terminal Wire-DC/U27 Cable
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
801 KYC-M189X-W0 CORD,REEL 1
802 KYX-M652P-00 ASSY-TERMINAL 1
803 KYC-M187B-W0 CORD,REEL 1
804 KYC-M185D-W0 CORD,REEL 1
805 KYX-M654Y-00 HNS,HD-M-POW-H1 1
806 KYX-M6550-00 HNS,HD-M-POW-H2 1
810 KYX-M6552-00 HNS,HD-IF 1
811 KYB-M6545-00 1010BC33 HNS,24VOUT-2 1
812 KYB-M6548-00 1010BC42 HNS,U27_POW 1
813 KYB-M65BH-00 4S200097 RELAY 1
814 KYB-M6549-00 1010BC44 HNS,X2715 1
815 KYB-M654C-00 1010BC60 HNS,X2721 1
816 KYB-M65BN-00 4S300023 FUSE-250V-6.3A 1
817 KYB-M656X-00 1005BC5C CONNECTOR 1
818 KYB-M656Y-00 1005BC5D CONNECTOR 1
819 KYB-M65B6-00 4J300096 CAB-JOINTTERMIN 27
820 KYB-M65AH-00 CASE_CONN 1
821 KYB-M65B9-00 4J300179 CAB-JOINTTERMIN 8
822 KYB-M656W-00 1005BC5A CONNECTOR 1
823 KYB-M65BA-00 4J300194 CAB-JOINTTERMIN 9
824 KYB-M65B5-00 4J300050 CAB_JOINTTERMIN 45
825 KYB-M65B4-00 4J300049 CAB_JOINTTERMIN 7
826 KYB-M6569-00 0914B35Y DIODE 2
827 KYB-M3T3D-W0 TUBE_WIRING,REEL 2
828 KYB-M6588-00 TUBE_WIRING 1
829 $AB100-W 0916D209 TIE 100MM 30
830 KYB-M658B-00 23N20109 TUBE_WIRING 1
831 KYB-M655A-00 1010BC8U HNS,U02-POW 1
832 KYB-M65AF-00 23K10263 CASE-CONN 1
834 KYB-M65BJ-00 4S200100 RELAY 2
835 KYB-M658K-00 23N30708 ACCESS-WIRING 4
836 KYB-M6562-00 0914B307 SWITCH-CONTROLLER 1
837 KLF-M537F-00 SAFTY RELAY 1
838 KYB-M6560-00 0900H1A7 ACCESS-WIRING 2
– 65 –
ELECTRICAL SECTION 2
2006-009
No.
Part No.
Part Name Qty. Detail
Yamaha Hitachi
839 KYB-M652U-00 1010BA0V PANEL 1
840 KYB-M6533-00 1010BA34 PANEL SIDE-B2 1
841 KYB-M65AS-00 23N30497 RAIL-WIRING 1
842 KYB-M6587-00 23N10027 TERMINAL 2
843 90990-11J016 221DA053 SCREW,PAN HEAD WW 22 PAN M4L6 SW+FW
844 KYB-M65AW-00 23N30632 WIRING 11
845 KYB-M65AN-00 23N10019 BRACKET-WIRING 2
846 KYB-M65B1-00 4J120082 SOCKET 1
847 KYB-M65AL-00 23K10437 CASE-CONN 1
851 KYB-M654U-00 1010BC7S HNS,G2OUT-2A 1
852 KYB-M654N-00 1010BC7M HNS,CV-L_POW 1
853 KYB-M654P-00 1010BC7N HNS,CV-R_POW 1
854 KYB-M654R-00 1010BC7P HNS,CT-POW-B1 1
855 KYB-M654S-00 1010BC7Q HNS,CT-POW-B2 1
856 KYB-M654H-00 1010BC7G HNS,OPNL-B 1
857 KYB-M654G-00 1010BC7F HNS,OPNL-F 1
858 KYB-M653W-00 1010BC2N HNS,B1FD-POW 1
859 KYB-M653X-00 1010BC2R HNS,B2FD-POW 1
860 KYB-M654G-00 1010BC7F HNS,OPNL-F 1
861 KYB-M654W-00 1010BC7W HNS,31B-POW 1
862 KYB-M654X-00 1010BC7X HNS,31F-POW 1
863 KYB-M6559-00 1010BC8T HNS,S131 1
864 KYB-M6558-00 1010BC8S HNS,S132 1
865 KYB-M6567-00 0914B33W CORD 1
866 KYB-M65AG-00 23K10270 CASE-CONN 1
867 KYB-M65B6-00 4J300096 CAB-JOINTTERMIN 3
868 KYB-M6596-00 225G1026 RIBBON TUBE 1
869 KYB-M65B5-00 4J300050 CAB_JOINTTERMIN 3
870 KYX-M65FW-00 HNS,FAN M107 1
871 KYX-M65FX-00 HNS,FAN M108 1
